CHAPTER 8 – DESCRIPTION OF THE MACHINE

u SAFETY PROTECTION DEVICES:

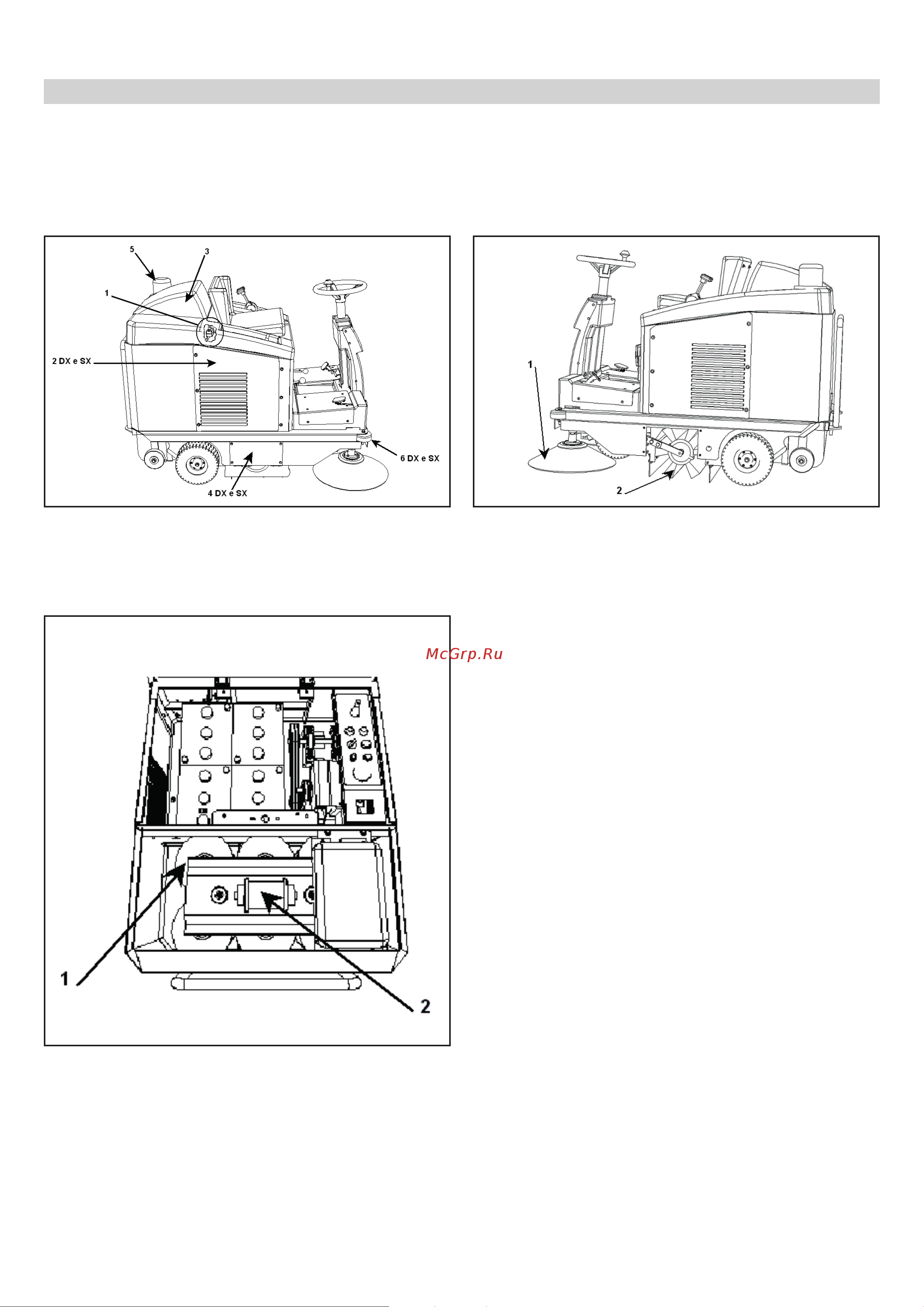

Fig. 3 shows the safety protections, which must be carefully tted and in good working condition.

The machine cannot be used with one or more safety protections devices missing or damaged.

The description of the protection devices are shown below:

1) Driving seat safety switch

2) Right and left side panel

3) Motor bonnet

u SIDE BRUSH:

The side brush, Detail. 1 Fig. 4, facts as a conveyor

of the dust and rubbish and is only used to clean

edges, corners and borders; after these operations it

has to be lifted up to avoid raising dust and also be-

cause the cleaning eect of the side brush is always

less than that of the main broom.

A left side brush is also available as an optional

feature.

u CENTRAL BRUSH:

The main brush Detail. 2 Fig. 4 is the main part of

the sweeper. This brush collects and loads dust and

rubbish in the refuse container; it is available with

dierent types of bristles of dierent harnesses

according to the material to be collected; it can be

adjusted in height when it is worn (Ú see Chapter

13)

IMPORTANT: do not pick up cords, wires, packaging straps, sticks, etc., longer than 25 cm as these

could wrap around the centre and side brushes and damage them.

u FILTER SYSTEM:

During operation, the lter system ensures that the machine does not raise dust in the surrounding areas.

It consists of six cartridge lters Part. 1 Fig. 5. The lter system can be disengaged by pulling knob Part. 1,

seen in Fig. 6.

4) Central brush protection plate: Right and Left

5) Reverse indicator light

6) Front angular wheel

Fig. 3

Fig. 5

Fig. 4
