Instructions and operating manual sweeper CSW 1200 B - CSW 1200 G (translated from original instructions)

pag. 38

u DUST SEALS:

See Part. 4 Fig. 6. These seals surround the central brush and are very important for ensuring good machine

operation, making possible as they do the suction eect. Frequently check to make sure they are in good

condition.

u COLLECTION BIN:

The container or collection bin Part. 1 Fig. 7, made of resistant plastic, holds all the material picked up by

the central brush and the lter dust. It can be easily removed thanks to a wheeled frame Part. 2 Fig. 7.

IMPORTANT: container emptying must always be done with the motor shut o. Wear gloves and pos-

sibly a face mask to protect the airways from dust (always present in this operation).

IMPORTANT: Disengage the lter system when passing with the machine over wet or very damp areas

to prevent dampening and therefore deteriorating the paper lters.

DESCRIPTION OF THE MANUAL COMMANDS

u FLAP-LIFT PEDAL:

By pressing the ap-lift pedal Part. 1 Fig. 8, the front seal Part.

2 Fig. 8 lifts up for picking up a large objects.

Suitable for collecting leaves, cigarette packets, etc.

u BRAKE PEDAL

y pressing this pedal Part. 4 Fig. 9, the machine slows down

and stops (until the pedal is released).

u PARKING BRAKE:

To leave the machine in parking position, proceed as follows:

press the brake pedal with the left foot and then insert the

stop tooth with the right foot by pressing lever. To release the

parking brake, simply press the pedal Part. 4 Fig. 9 again.

u FORWARD AND REVERSE PEDAL (only for battery version):

Part. 3 Fig. 9.

This pedal has two functions depending on the position of the operation switch Part. 1 of

switchboard: when the switch is in forward position, the machine moves forward when the pedal is pressed.

When switch is positioned in reverse, the machine reverses. For safety reasons, the reverse speed of the ma-

chine is very low. When the switch is in central position, the machine moves neither forward not in reverse.

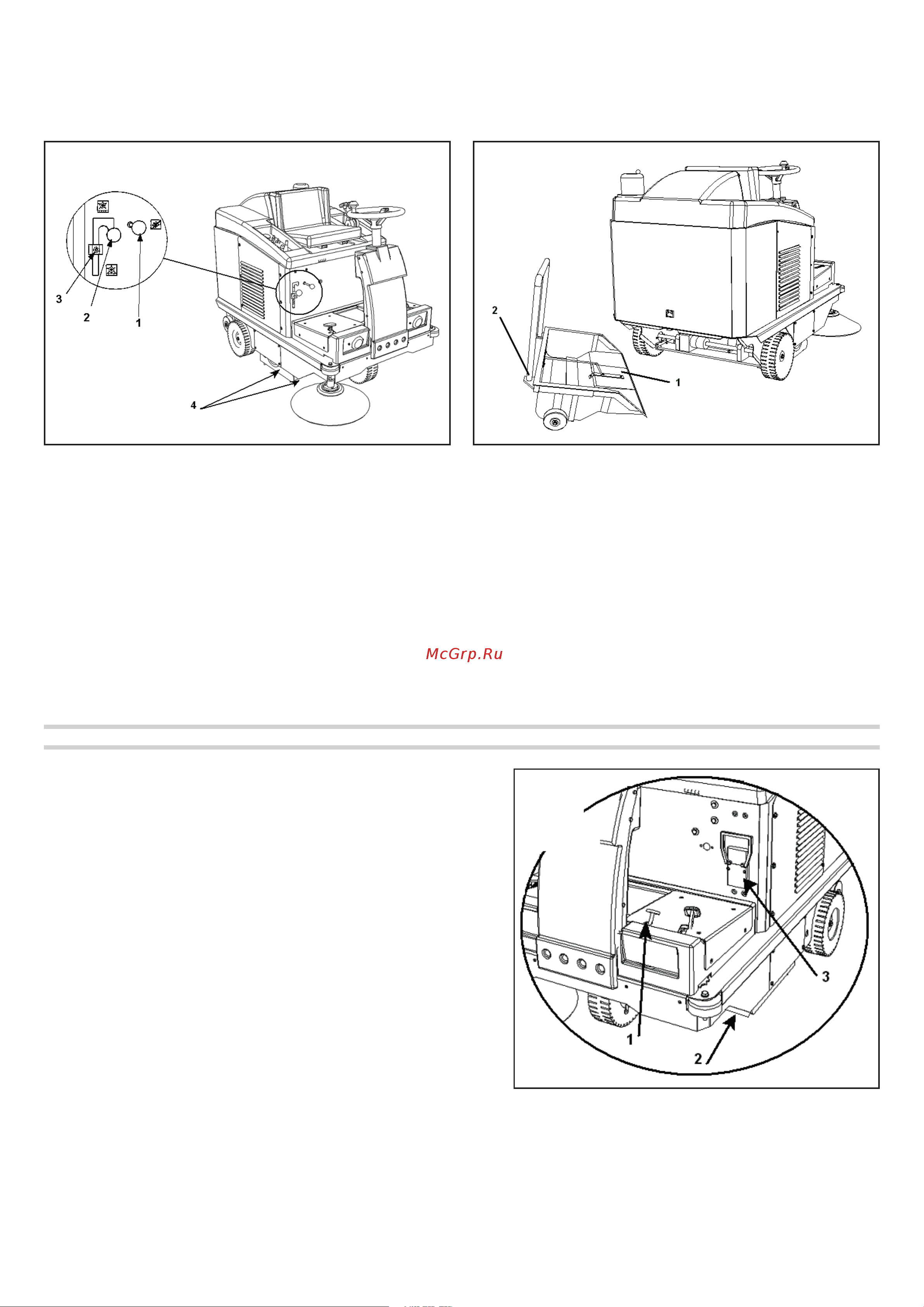

Fig. 6 Fig. 7

Fig. 8
