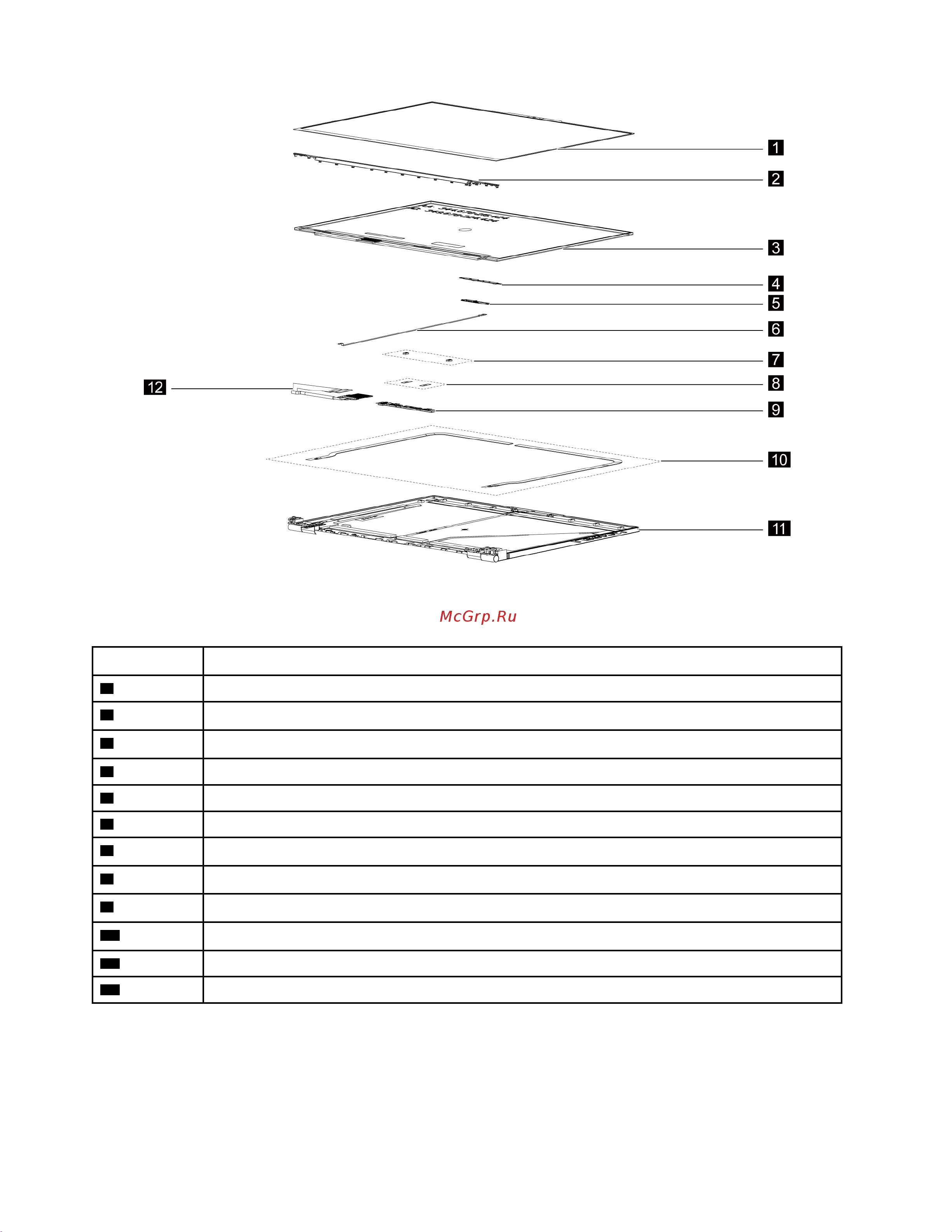

Figure 2. Lenovo Legion 7 (16″, 6) LCD module — exploded view

Table 4. FRU categories for the LCD module

No.

FRU (CRU) category

LCD bezel

Hinge cover

LCD panel

Camera bracket

Camera

Camera cable

Microphone rubber

Microphone board conductive tape

Microphone board

Removable tape

LCD cover

EDP cable

26 Hardware Maintenance Manual
