Lenovo Legion 7 16ACHg6 (82N6001LRK) [38/66] Remove the battery pack
![Lenovo Legion 7 16ACHg6 (82N6001LRK) [38/66] Remove the battery pack](/views2/1863208/page38/bg26.png)

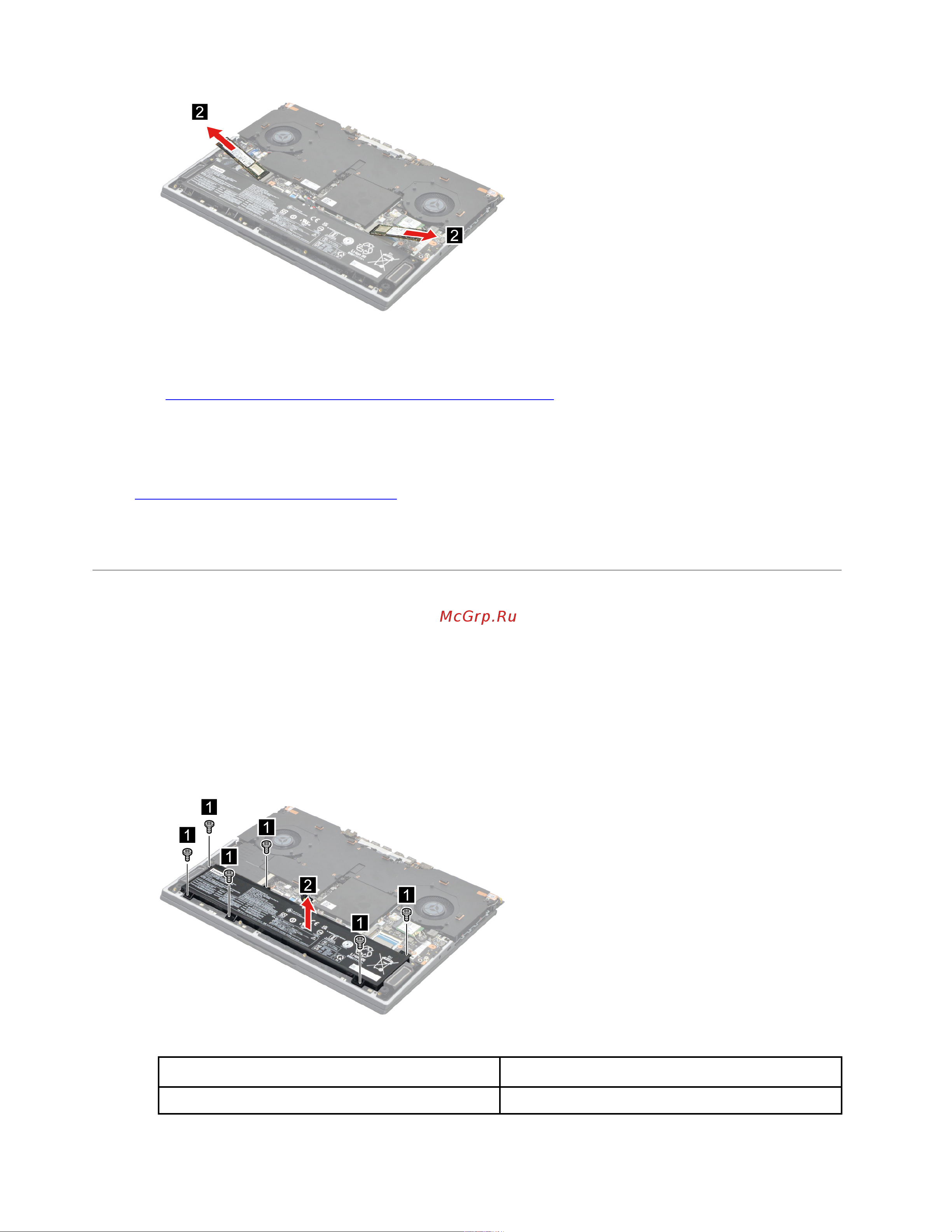

Figure 10. Remove two SSDs
Note: For LCD panel with the factory color calibration feature, do the following to install new color profiles:
1. Go to
https://pcsupport.lenovo.com/us/en/downloads/DS543953 to download the installation software.
Double-click the EXE file and follow the on-screen instructions to finish the installation.
2. X-RiteColorAssistant.exe will auto run. Click Restore Profile button from prompted window to restore the
profile from Lenovo cloud.
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Solid-state drive (SSD)
Remove the battery pack
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the solid-state drive (SSD) plate R” on page 30
Step 1. Remove the right SSD.
Note: For details, see “Remove the solid-state drive (SSD)” on page 31.
Step 2. Remove six screws and then remove the battery pack.
Figure 11. Remove the battery pack
Screw specifications
Number of screws
M2 x L4.5 6
32
Hardware Maintenance Manual
