Lenovo Legion 7 16ACHg6 (82N6001LRK) [45/66] Remove the i o board

Screw specifications Number of screws

M2 x L4.5 2

M2 x L6 2

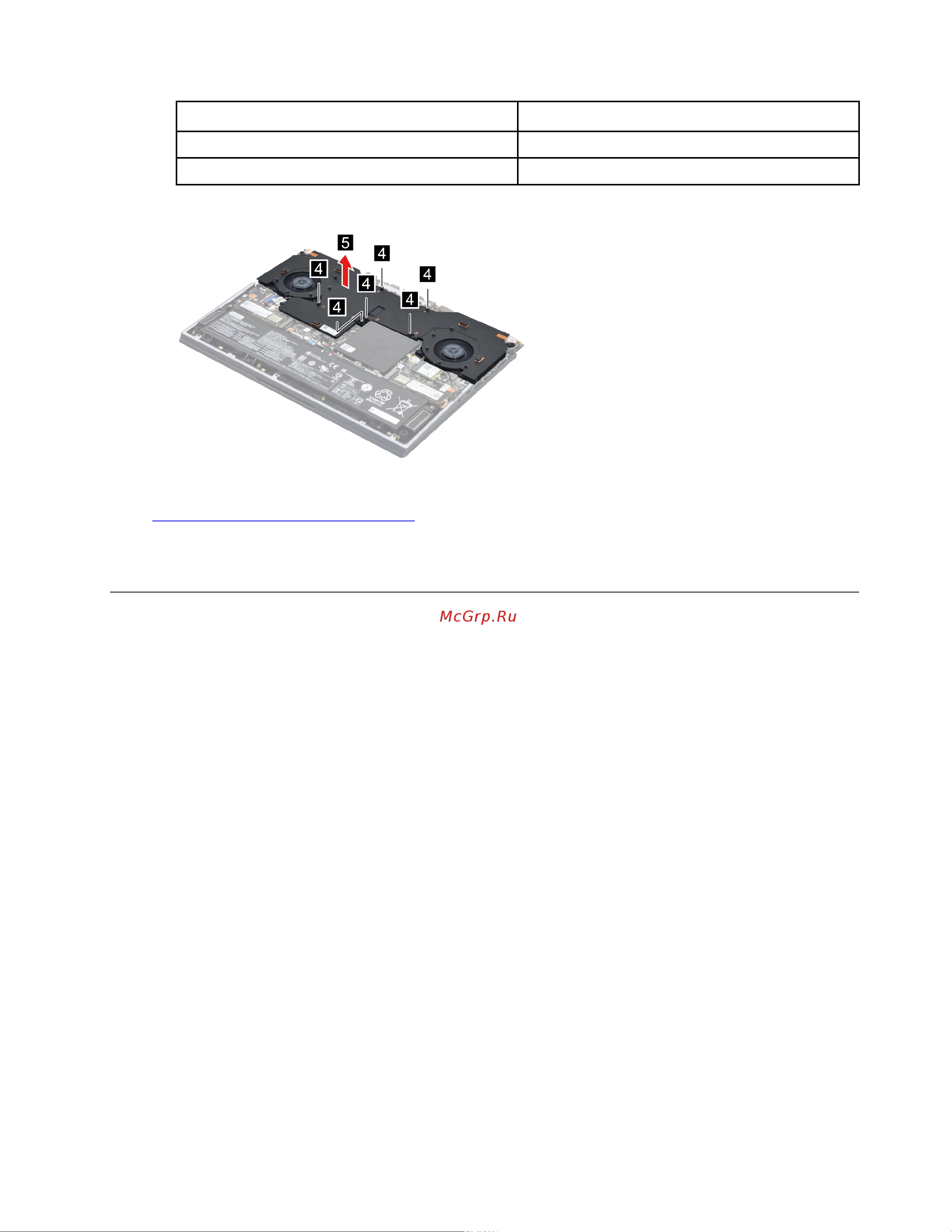

Step 2. Loosen six screws and then remove the thermal module.

Figure 22. Loosen six screws and then remove the thermal module

Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement

part:

Thermal module

Remove the I/O board

Make sure the following FRUs (or CRUs) have been removed.

“Remove the lower case” on page 28

“Remove the thermal module” on page 38

Step 1. Remove the left SSD.

Note: For details, see “Remove the solid-state drive (SSD)” on page 31.

Step 2. Disconnect the cables connected to the IO board.

Chapter 4. Removing a FRU or CRU 39
