Lenovo Legion 7 16ACHg6 (82N6001LRK) [57/66] Remove the edp cable
![Lenovo Legion 7 16ACHg6 (82N6001LRK) [57/66] Remove the edp cable](/views2/1863208/page57/bg39.png)

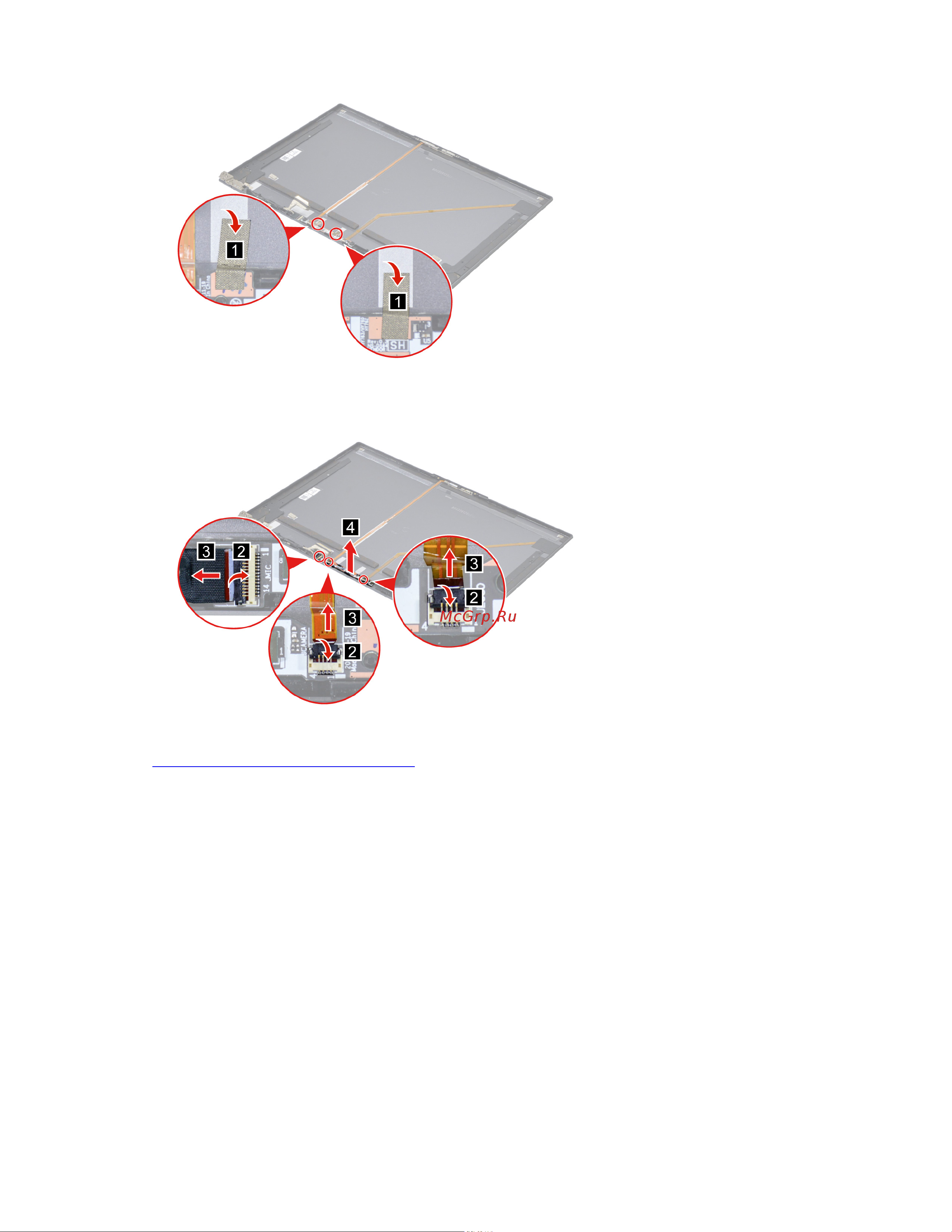

Figure 41. Remove the microphone board conductive tape
Step 2. Disconnect cables connected to the microphone board. Remove the microphone board.
Figure 42. Remove the microphone board
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Microphone board conductive tape
Microphone board
Removable tape
Remove the EDP cable
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 44
“Remove the LCD bezel” on page 47
“Remove the hinge cover” on page 48
“Remove the LCD panel” on page 49
Step 1. Disconnect the EDP cable and then release the EDP cable from the cable guide. Remove the EDP
cable.
Chapter 4. Removing a FRU or CRU 51
