Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Battery pack
Remove the memory module
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 28
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove the memory shielding.

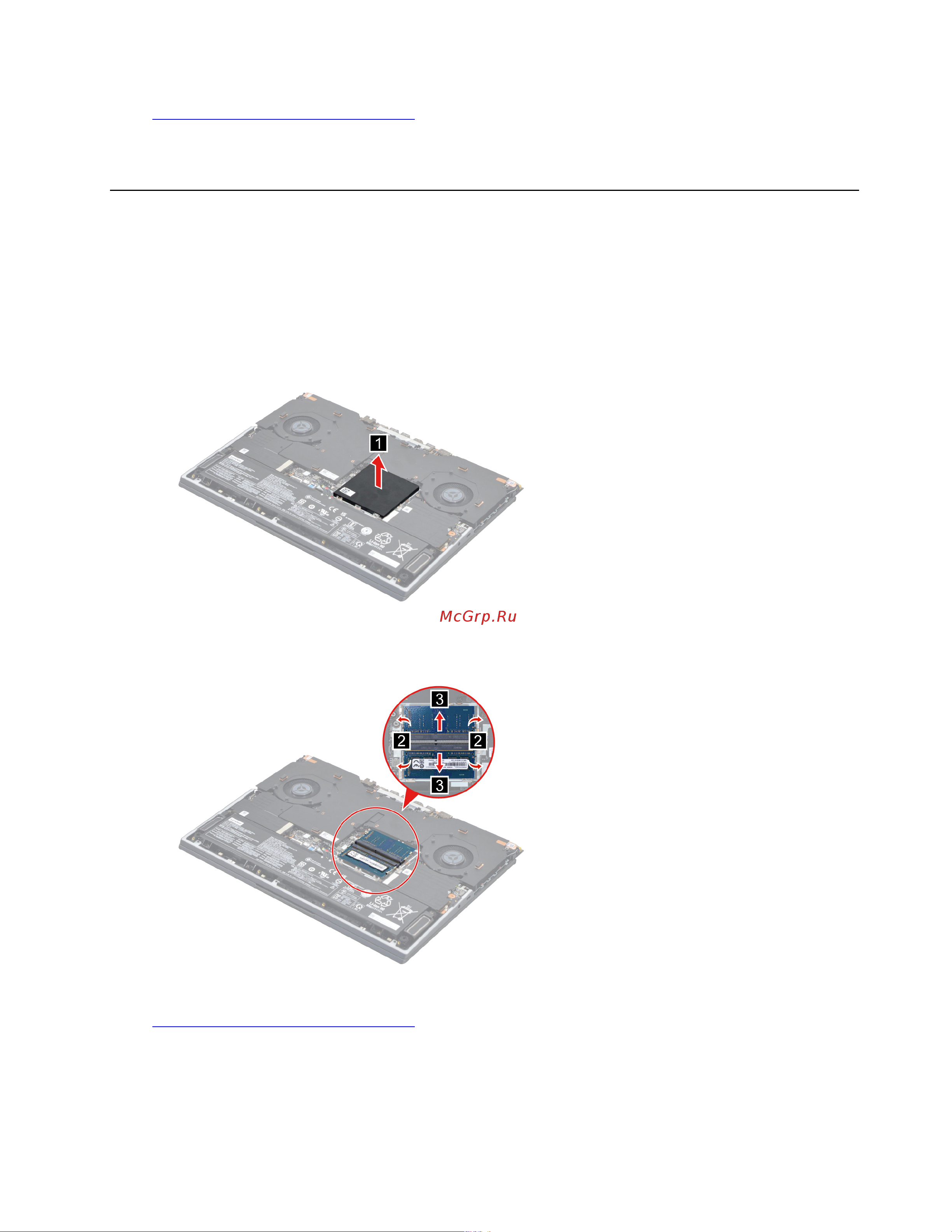

Figure 12. Remove the memory shielding
Step 3. Open the buckles and then remove the memory.
Figure 13. Remove the memory
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Memory shielding
Memory
Chapter 4. Removing a FRU or CRU 33
