Lenovo Legion 7 16ACHg6 (82N6001LRK) [60/66] Remove the lcd cover
![Lenovo Legion 7 16ACHg6 (82N6001LRK) [60/66] Remove the lcd cover](/views2/1863208/page60/bg3c.png)

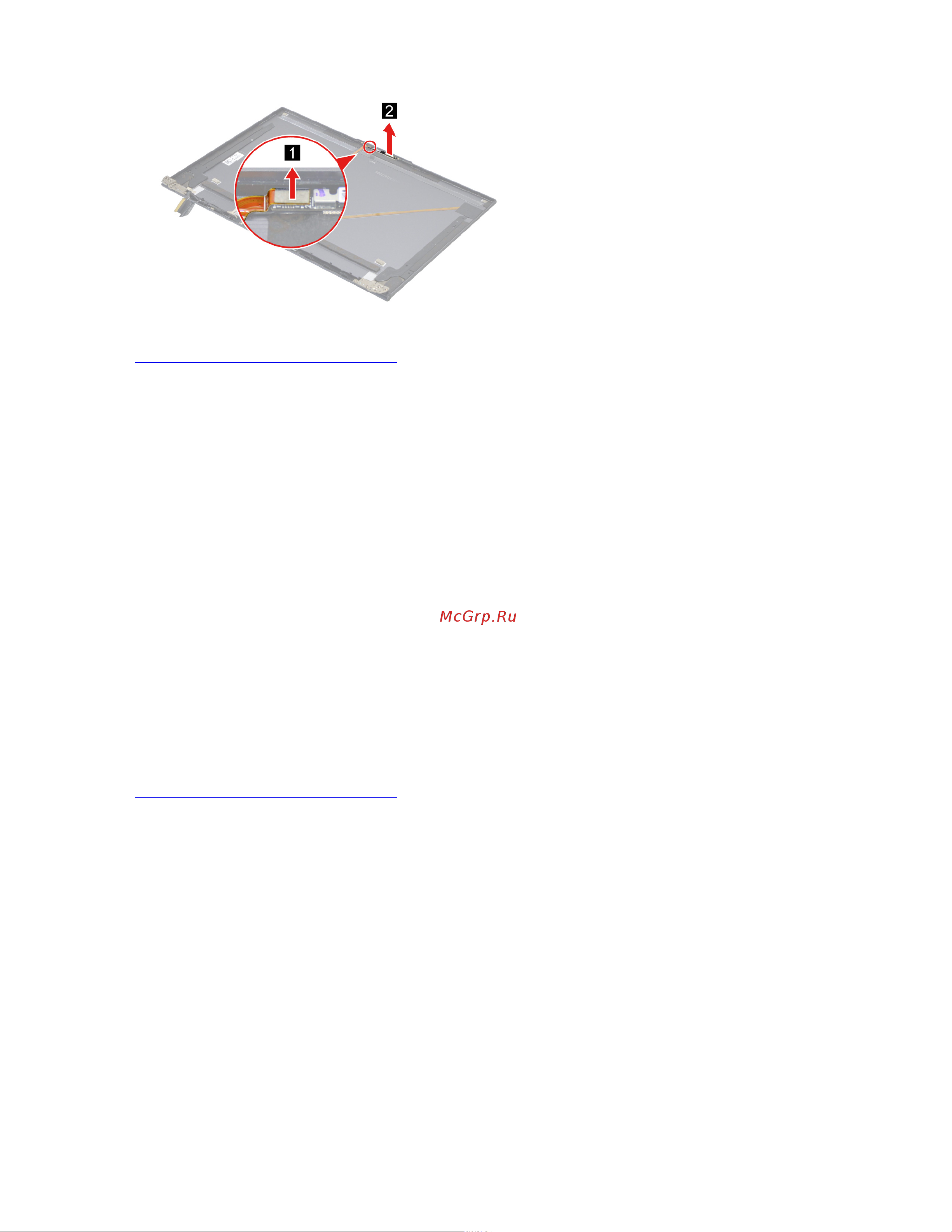

Figure 46. Remove the camera
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Camera
Removable tape
Remove the LCD cover
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 44
“Remove the LCD bezel” on page 47
“Remove the hinge cover” on page 48
“Remove the microphone rubbers” on page 48
“Remove the LCD panel” on page 49
“Remove the microphone board” on page 50
“Remove the EDP cable” on page 51
“Remove the camera bracket” on page 52
“Remove the camera cable” on page 53
“Remove the camera” on page 53
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
LCD cover
54
Hardware Maintenance Manual
