Lenovo Legion 7 16ACHg6 (82N6001LRK) [37/66] Remove the solid state drive ssd
![Lenovo Legion 7 16ACHg6 (82N6001LRK) [37/66] Remove the solid state drive ssd](/views2/1863208/page37/bg25.png)

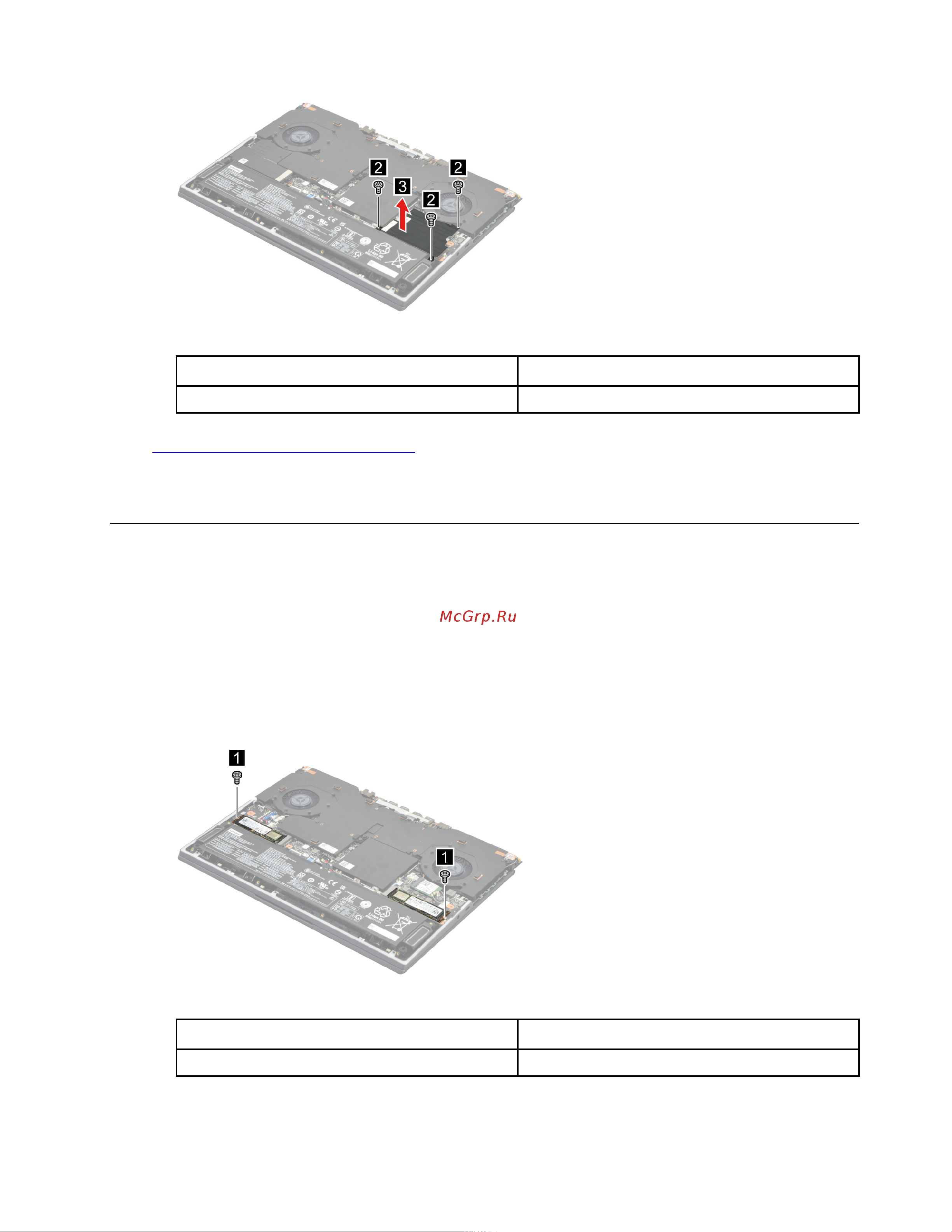

Figure 8. Remove the right SSD plate
Screw specifications Number of screws
M2 x L4.5 3
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Solid-state drive (SSD) plate R
Remove the solid-state drive (SSD)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the solid-state drive (SSD) plate L” on page 29
“Remove the solid-state drive (SSD) plate R” on page 30
Note: For selected models, there is only one SSD.
Step 1. Remove two screws.
Figure 9. Remove two screws
Screw specifications
Number of screws
M2 x L3.5 2
Step 2. Remove two SSDs by pulling it away from the slot.
Chapter 4. Removing a FRU or CRU 31
