Lenovo Legion 7 16ACHg6 (82N6001LRK) [52/66] Remove the c cover edp conductive tape
![Lenovo Legion 7 16ACHg6 (82N6001LRK) [52/66] Remove the c cover edp conductive tape](/views2/1863208/page52/bg34.png)

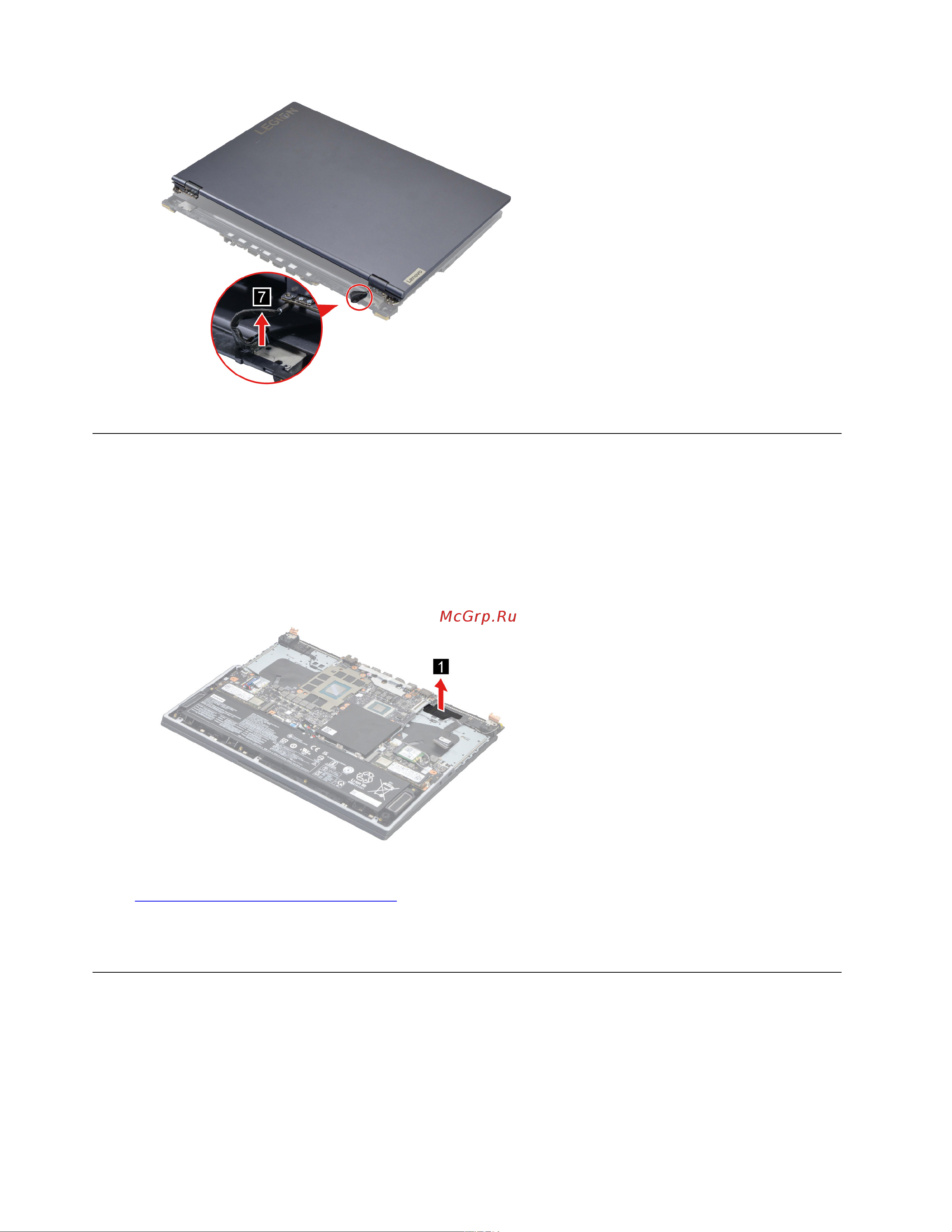

Figure 34. Take out the EDP cable and then remove the LCD module
Remove the C cover EDP conductive tape
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the thermal module” on page 38
Step 1. Peel off the tape securing the EDP cable. Disconnect the EDP cable from the system board.
Step 2. Remove the C cover EDP conductive tape.
Figure 35. Remove the C cover EDP conductive tape
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
C cover EDP conductive tape
Remove the upper case
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the solid-state drive (SSD) plate L” on page 29
“Remove the solid-state drive (SSD) plate R” on page 30
46
Hardware Maintenance Manual
