Lenovo Legion 7 16ACHg6 (82N6001LRK) [53/66] Disassemble the lcd module

“Remove the solid-state drive (SSD)” on page 31

“Remove the battery pack” on page 32

“Remove the memory module” on page 33

“Remove the DC-in bracket” on page 34

“Remove the Wi-Fi card” on page 34

“Remove the CMOS battery” on page 35

“Remove the touchpad board cable” on page 36

“Remove the C cover shield mylar” on page 36

“Remove the speakers” on page 37

“Remove the thermal module” on page 38

“Remove the I/O board” on page 39

“Remove the system board and IO board cable” on page 40

“Remove the strip cover” on page 42

“Remove the LCD module” on page 44

“Remove the C cover EDP conductive tape” on page 46

Go to

https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement

part:

Upper case

Disassemble the LCD module

The LCD module as a whole is not an FRU. Instead, it contains FRUs as its components. Before

disassembling the LCD module, make sure it has been detached from the upper case.

Remove the LCD bezel

Make sure the following FRU (CRU) has been removed.

“Remove the LCD module” on page 44

Step 1. Remove the LCD bezel.

Note: The LCD bezel is fragile and should be replaced if damaged.

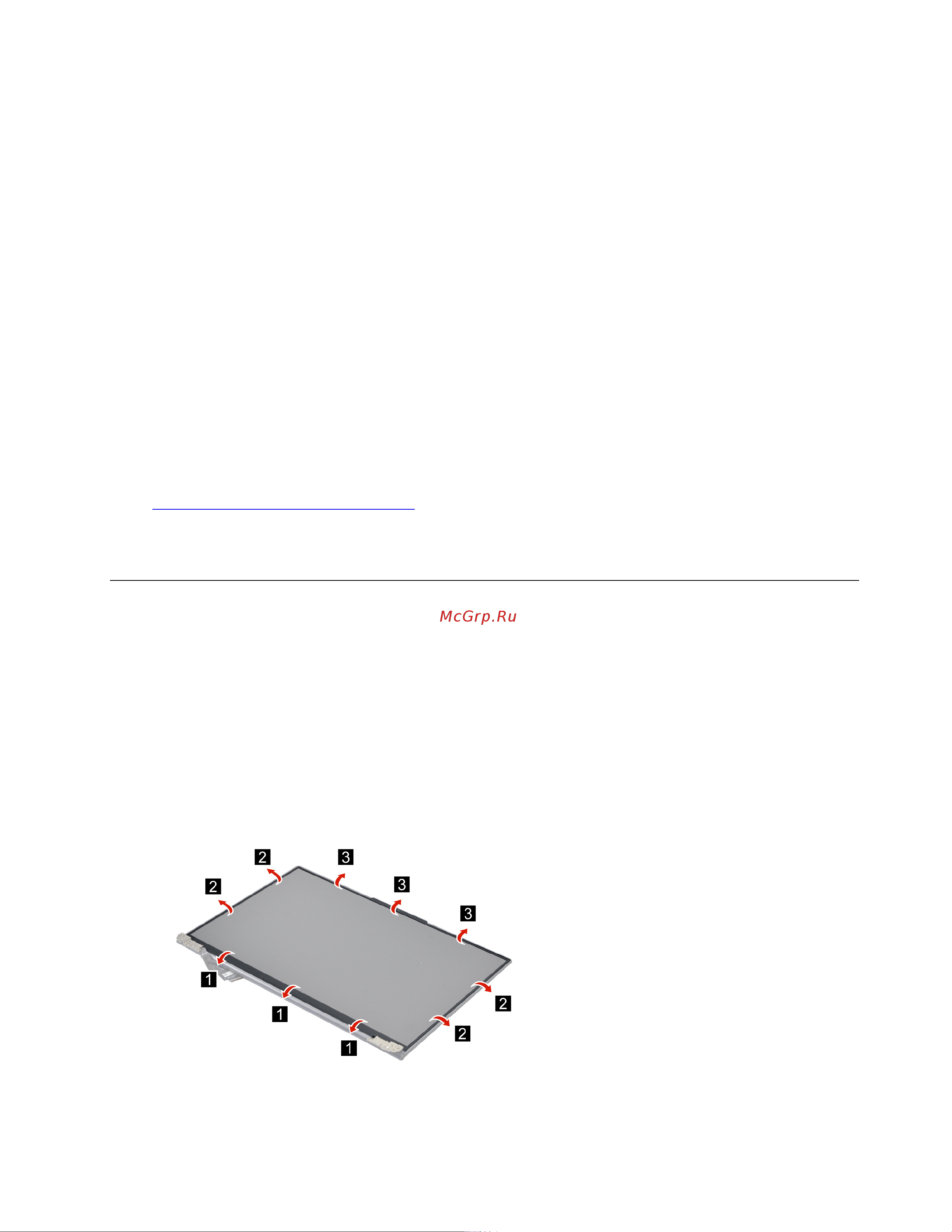

Figure 36. Remove the LCD bezel

Chapter 4. Removing a FRU or CRU 47
