Lenovo Legion 7 16ACHg6 (82N6001LRK) [41/66] Remove the cmos battery

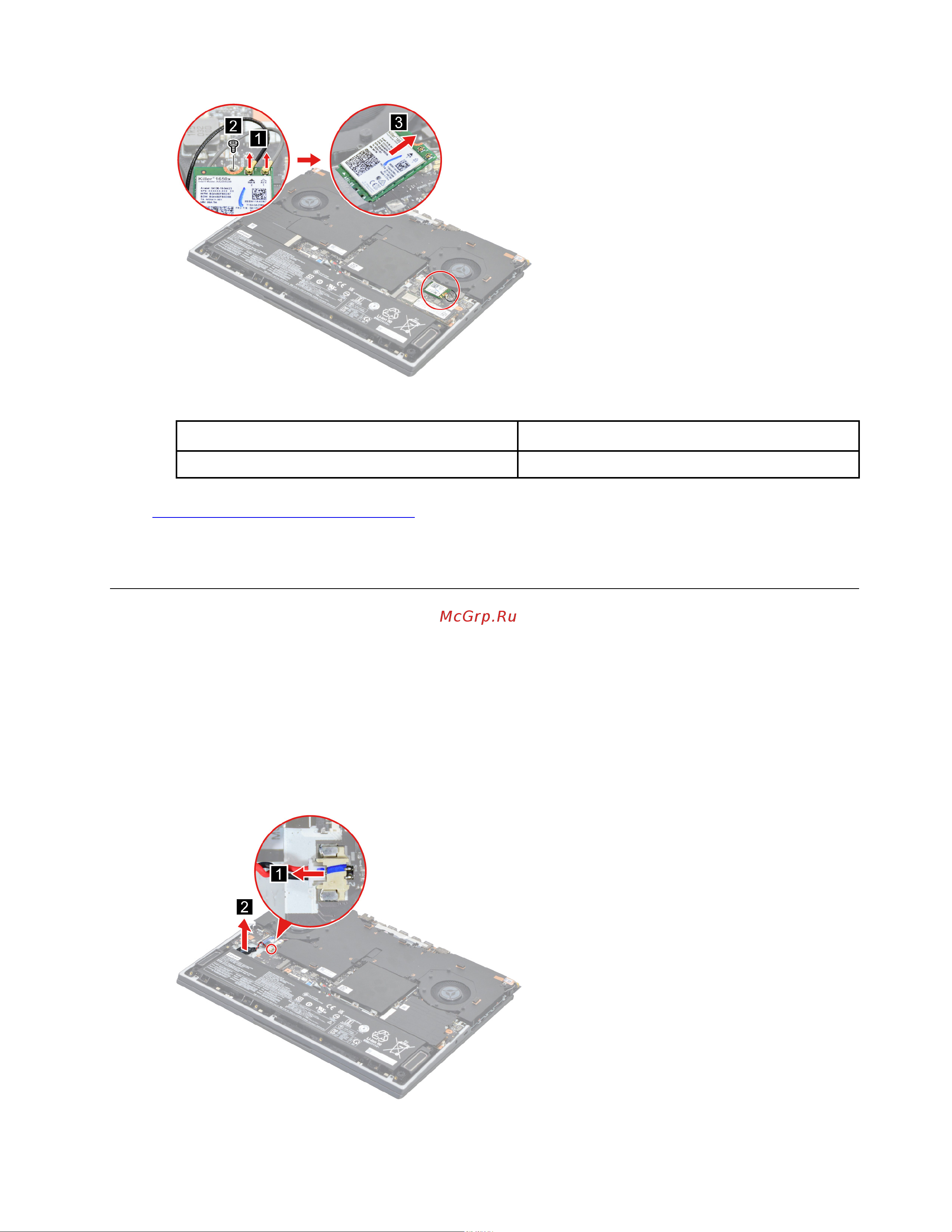

Figure 15. Remove the Wi-Fi card

Screw specifications

Number of screws

M2 x L3.5 1

Go to

https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement

part:

Wi-Fi card

Remove the CMOS battery

Make sure the following FRUs (or CRUs) have been removed.

“Remove the lower case” on page 28

“Remove the solid-state drive (SSD) plate L” on page 29

Step 1. Remove the left SSD.

Note: For details, see “Remove the solid-state drive (SSD)” on page 31.

Step 2. Disconnect the CMOS battery cable from the system board and then remove the CMOS battery.

Figure 16. Remove the CMOS battery

Chapter 4. Removing a FRU or CRU 35
