Step 3. Pry up the latches and then remove the lower case.

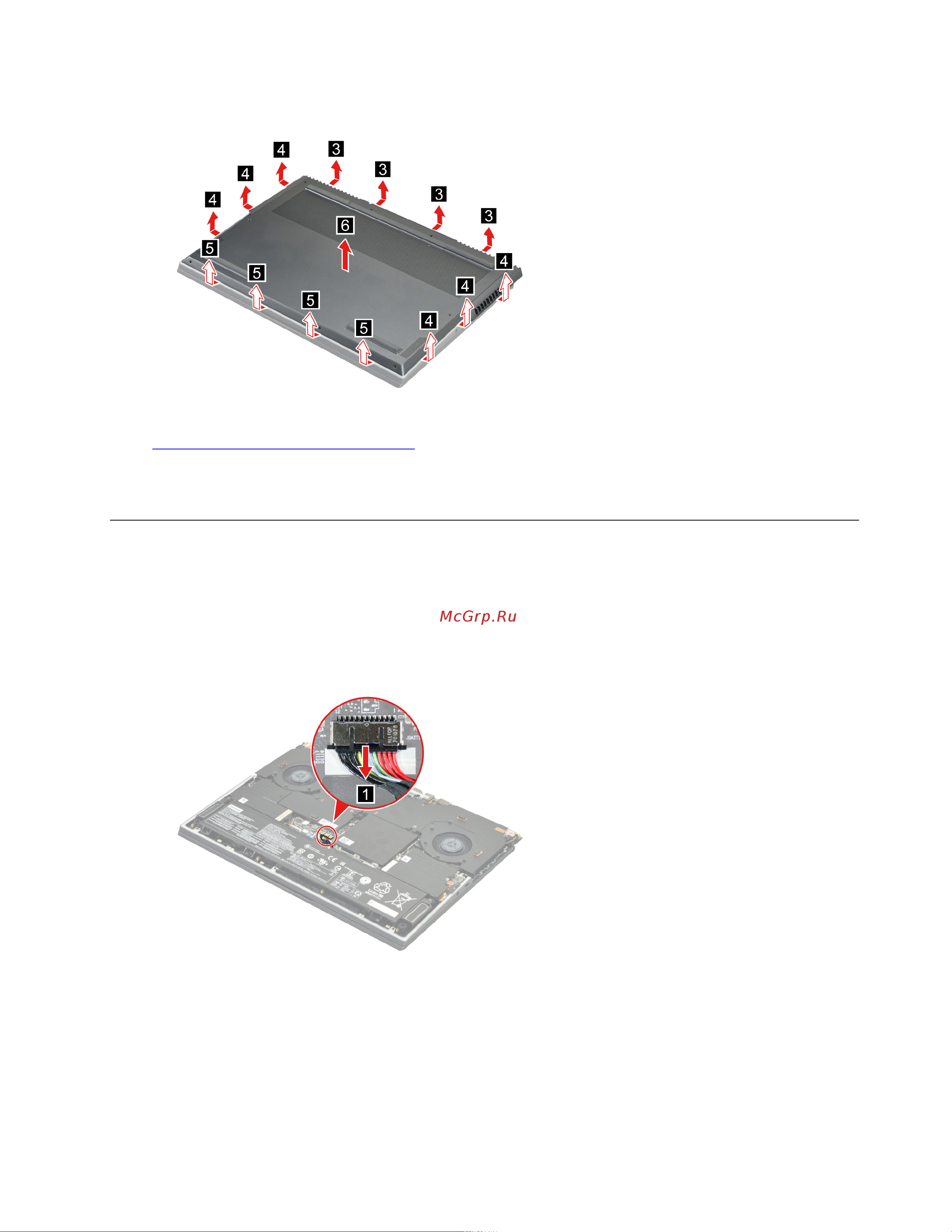

Figure 4. Pry up the latches and then remove the lower case

Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement

part:

Lower case

Remove the solid-state drive (SSD) plate L

Make sure the following FRU (or CRU) has been removed.

“Remove the lower case” on page 28

Step 1. Disconnect the battery pack cable from the system board.

Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.

Figure 5. Disconnect the battery pack cable

Step 2. Remove three screws and then remove the left SSD plate carefully.

Chapter 4. Removing a FRU or CRU 29
