Lenovo Legion 7 16ACHg6 (82N6001LRK) [56/66] Remove the microphone board

Step 2. Lift the LCD panel slightly. Peel off the tape. Disconnect the EDP cable from the LCD panel and

then remove the LCD panel.

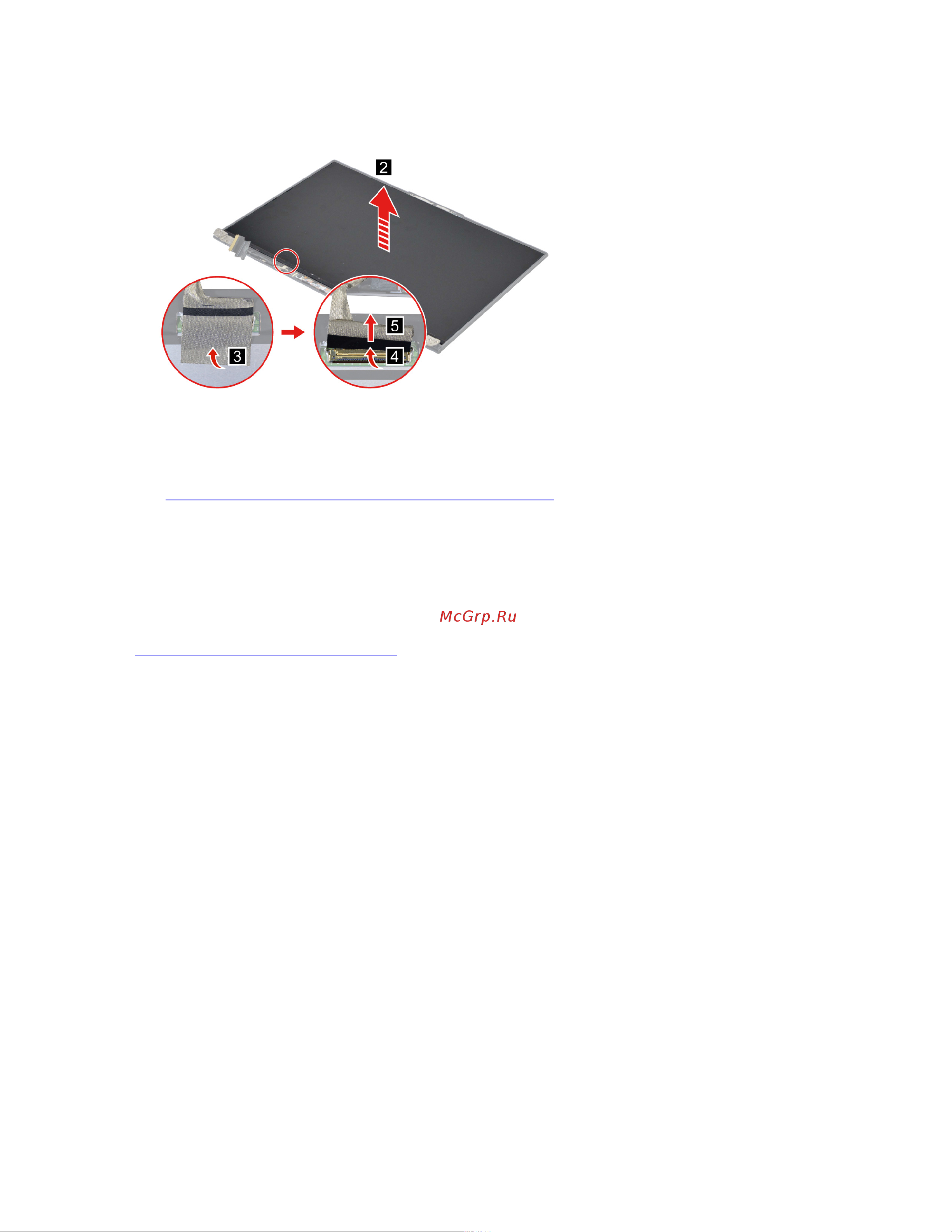

Figure 40. Disconnect the EDP cable and remove the LCD panel

Note: For LCD panel with the factory color calibration feature, do the following to install new color profiles:

1. Connect your computer to the network and close the X-Rite Color Assistant program.

2. Go to

https://pcsupport.lenovo.com/us/en/downloads/DS543953 to download the installation software.

Double-click the EXE file and follow the on-screen instructions to finish the installation.

3. Go to C:\Program files (x86)\X-Rite Color Assistant and locate the

ProfileUpdaterForDisplayReplacement.exe file. Double-click the EXE file. Follow the on-screen

instructions to input the display serial number and click Submit. You can find the display serial number

and instructions on a sticker fixed to the front of the new LCD part. When the new color profiles are

installed successfully, a prompted window will be displayed.

Go to

https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following

replacement parts:

LCD panel

Removable tape

Remove the microphone board

Make sure the following FRUs (CRUs) have been removed.

“Remove the LCD module” on page 44

“Remove the LCD bezel” on page 47

“Remove the hinge cover” on page 48

“Remove the microphone rubbers” on page 48

“Remove the LCD panel” on page 49

Step 1. Remove the two pieces of microphone board conductive tape.
