Инструкция по эксплуатации Страница: 36

Lenovo Legion 7 16ACHg6 (82N6001LRK) [36/66] Remove the solid state drive ssd plate r

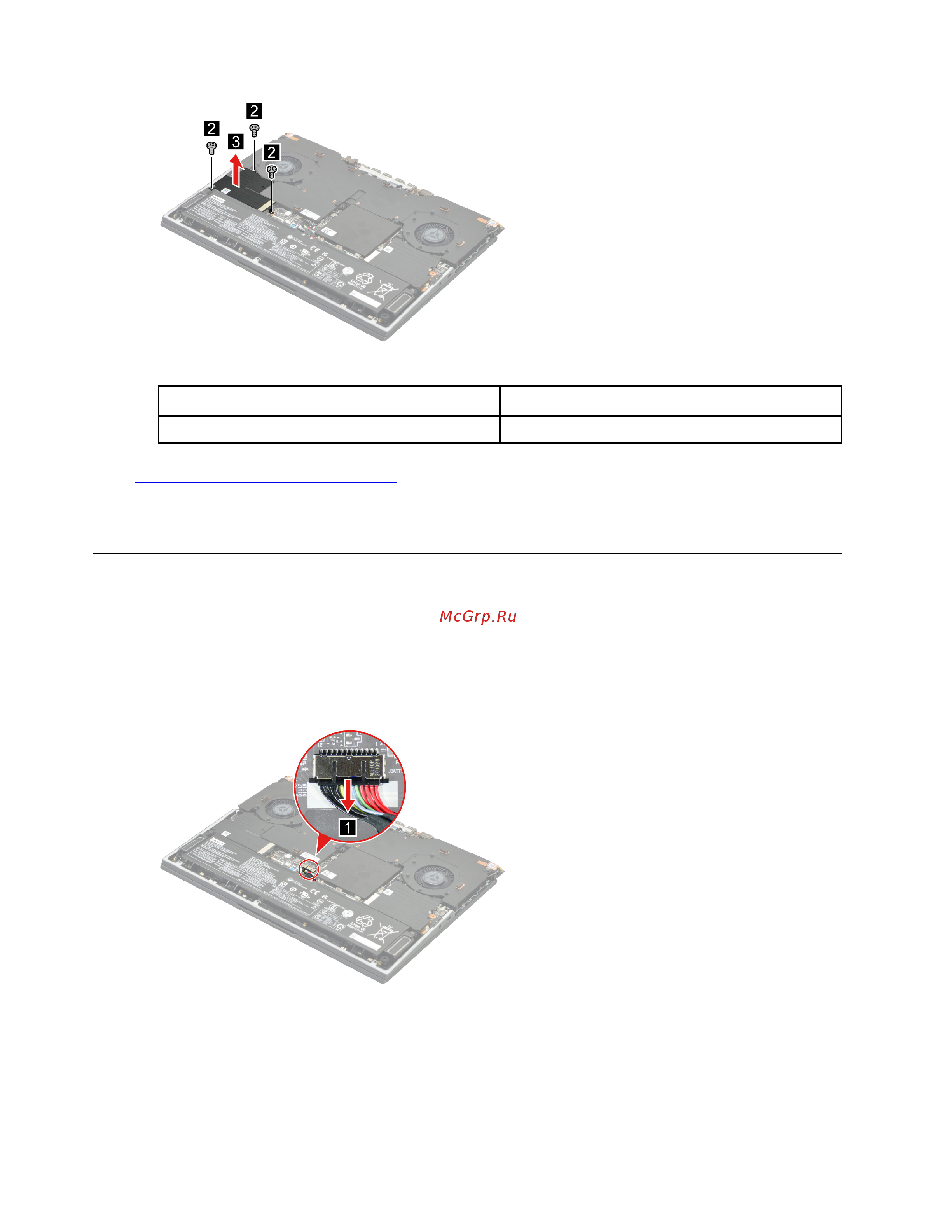

Figure 6. Remove the left SSD plate

Screw specifications Number of screws

M2 x L4.5 3

Go to

https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement

part:

Solid-state drive (SSD) plate L

Remove the solid-state drive (SSD) plate R

Make sure the following FRU (or CRU) has been removed.

“Remove the lower case” on page 28

Step 1. Disconnect the battery pack cable from the system board.

Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.

Figure 7. Disconnect the battery pack cable

Step 2. Remove three screws and then remove the right SSD plate carefully.

Hardware Maintenance Manual
