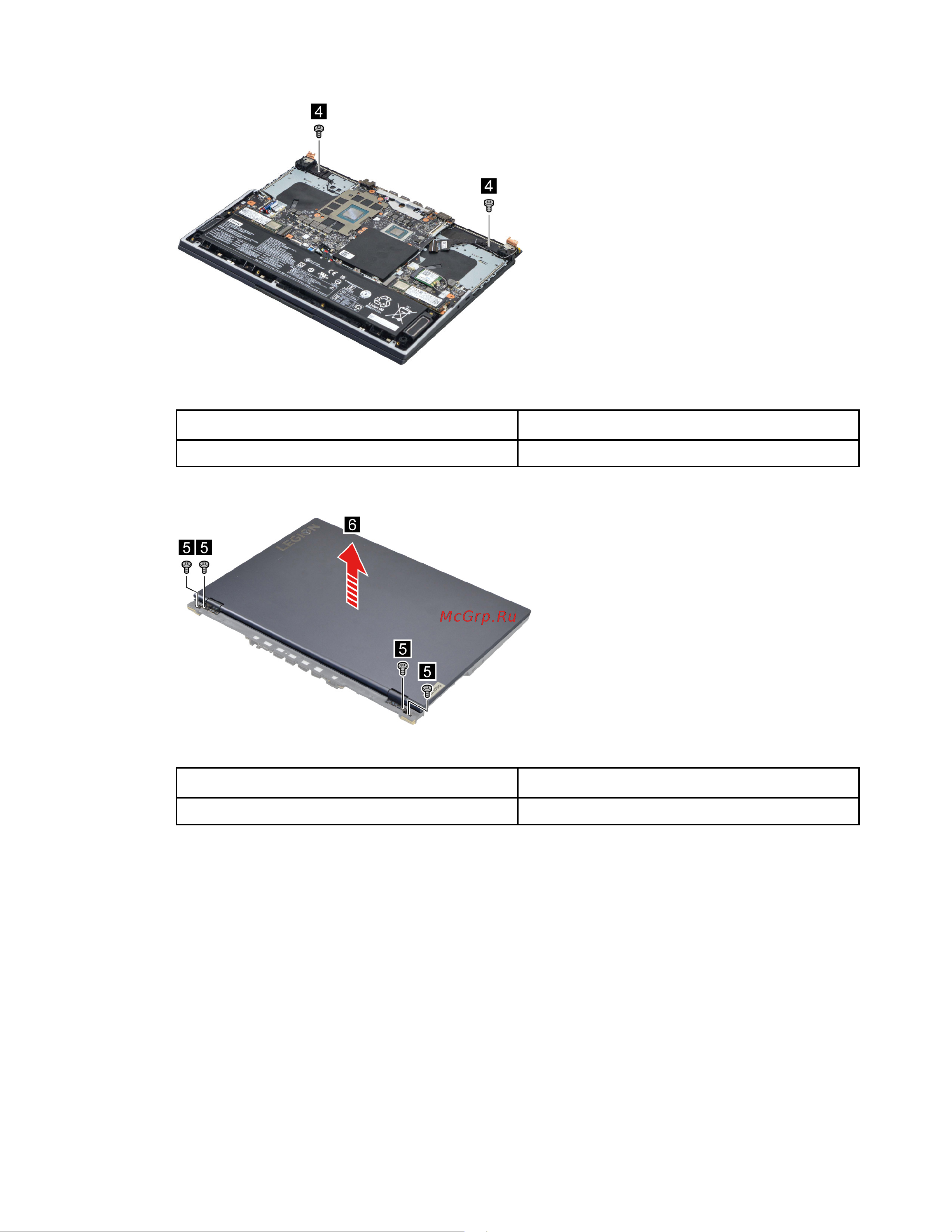

Figure 32. Remove two screws

Screw specifications

Number of screws

M2 x L3 2

Step 3. Turn over the computer and remove four screws. Lift the LCD module slightly.

Figure 33. Remove four screws and then lift the LCD module

Screw specifications Number of screws

M2 x L3 4

Step 4. Take out the EDP cable and then remove the LCD module.

Chapter 4. Removing a FRU or CRU 45
