Lenovo Legion 7 16ACHg6 (82N6001LRK) Инструкция по эксплуатации онлайн [47/66] 650937

“Remove the memory module” on page 33

“Remove the DC-in bracket” on page 34

“Remove the Wi-Fi card” on page 34

“Remove the thermal module” on page 38

Step 1. Disconnect cables connected to the system board.

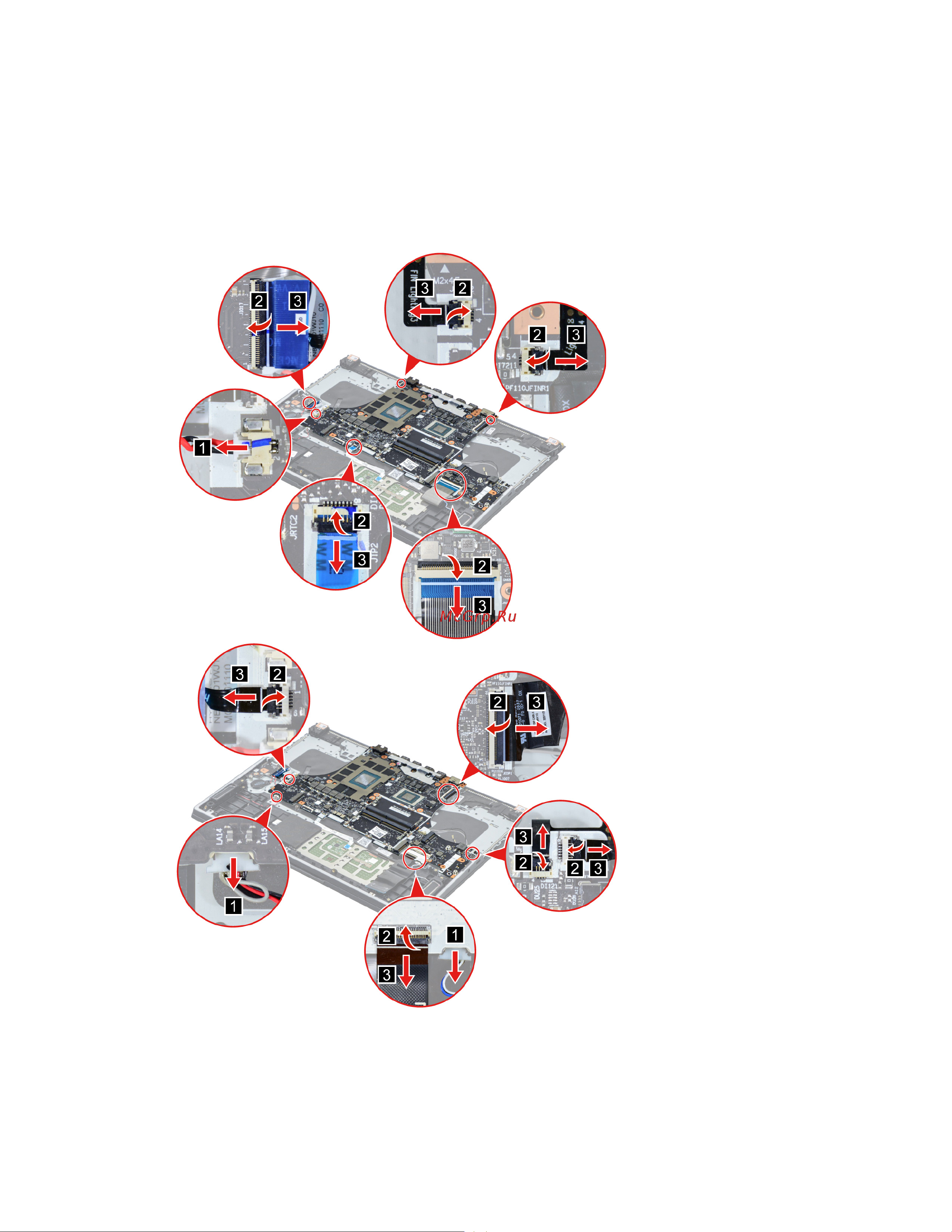

Figure 25. Disconnect cables connected to the system board

Step 2. Remove seven screws and then lift the system board.

Chapter 4. Removing a FRU or CRU 41
