uPC3 – rel 1.8 – 11/2021
17

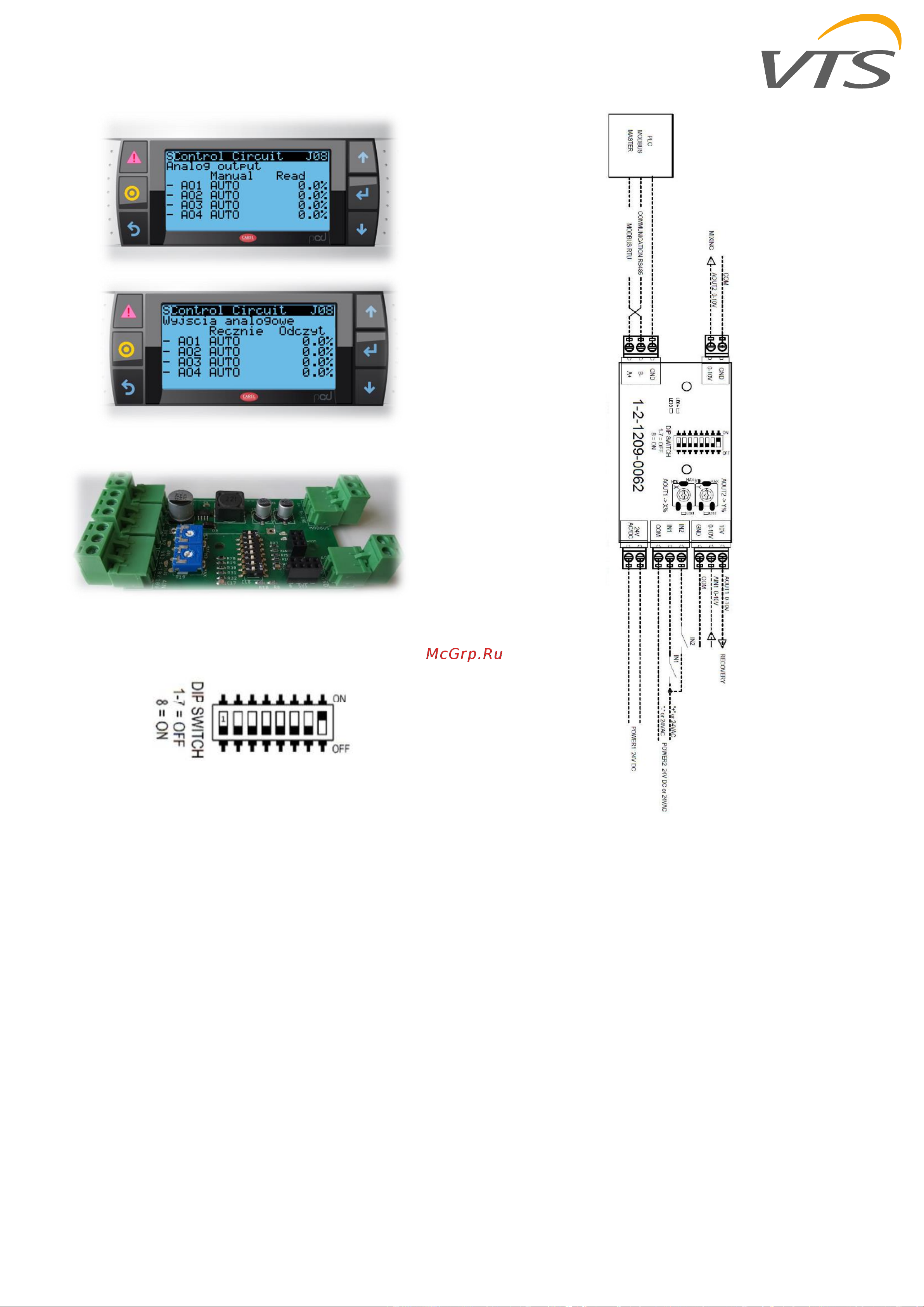

VTS – PCB-EC
For proper operation with the controller uPC3, it is necessary to set
the dip switch 8 to ON. This will switch RS-485 communication on
the PCB-EC board from Master to Slave and work correctly with the
controller.
EC_board is Modbus Slave, can not work without outside plc.
Change outputs and read inputs by commands from external PLC
controller
