uPC3 – rel 1.8 – 11/2021
22
6. FUNCTIONS
6.1 On request
The On status requires the AND logic of:
Unit configured by Service
No serious alarm
On by digital input
On by the OR of the following conditions:
o On by pGD
o On by BMS
o On by HMI Basic, if present
o On by scheduler, if enabled
Variable mode is shared with all the control sources
If any condition go to OFF, the uni twill turn OFF.
6.2 Start/Stop sequence
When the unit is turned ON by a previous condition
the sequence to start will be enabled.
The start sequence is divided into the following
steps:
1. The external temperature is checked.
2. If the external temperature is lower than
antifreeze setpoint, the heating devices
after recovery, will be activated in 60s at

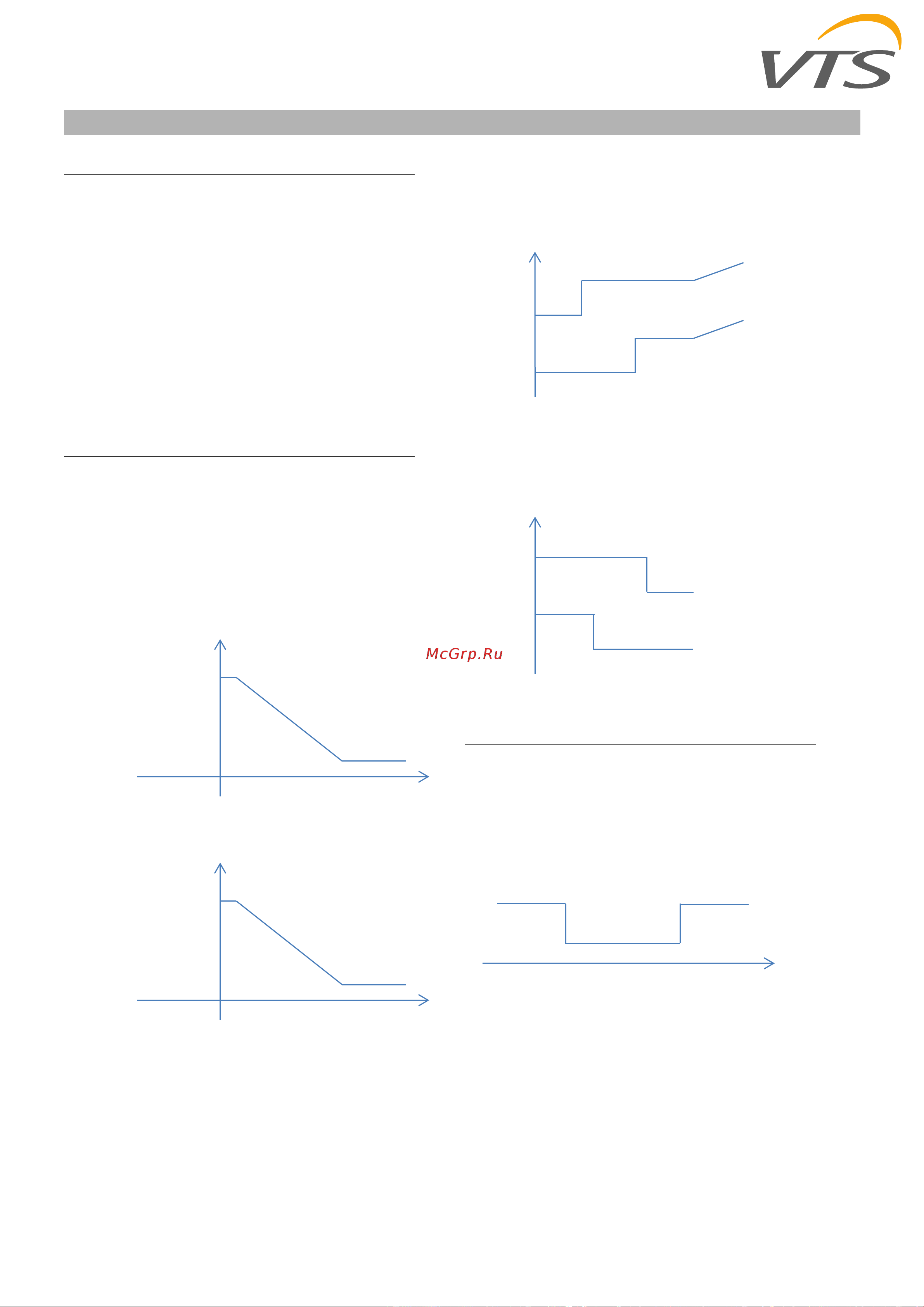

power determined by the graph below:
3. The heating power will be kept for a certain
time determined by the following graph:
4. In case of external temperature greater
than antifreeze setpoint or after the
antifreeze sequence timer, the damper can
be opened.
5. After 30s the fan can start and devices can
regulate. If heating devices are in
regulation mode from antifreeze condition,
the release of manual mode should not
cause a peack on the heating outputs.
When the fans start to regulate, another sequence
will start, described below:
When the unit is turned OFF, the fans will be kept
at the previous power and after a settable time they
can be turned OFF.
6.3 Cooling/Heating changeover
The external and room/return temperatures are
considered: if the external temperature is lower
than a minimum threshold or greater than a upper
threshold the heating or cooling mode can be
forced:
In the middle, between the heating and cooling
external temperature thresholds, or when the
external temperature probe isn’t available the
heating or cooling mode will be decided
considering the room temperature or the return
temperature (if the probes are available), here
below it is represented the behaviour in case of
room temperature:
External temp.
Start power
Max
Min
Low
High
External temp.
Time
Max
Min
Low
High
Fans
Supply
Exhaust
ON
ON
delay
ON
delay
Idle time
Idle time
Fans
Supply
Exhaust
OFF
OFF
delay
OFF delay
External temp.
Cooling
Heating
Based on
room temp.
