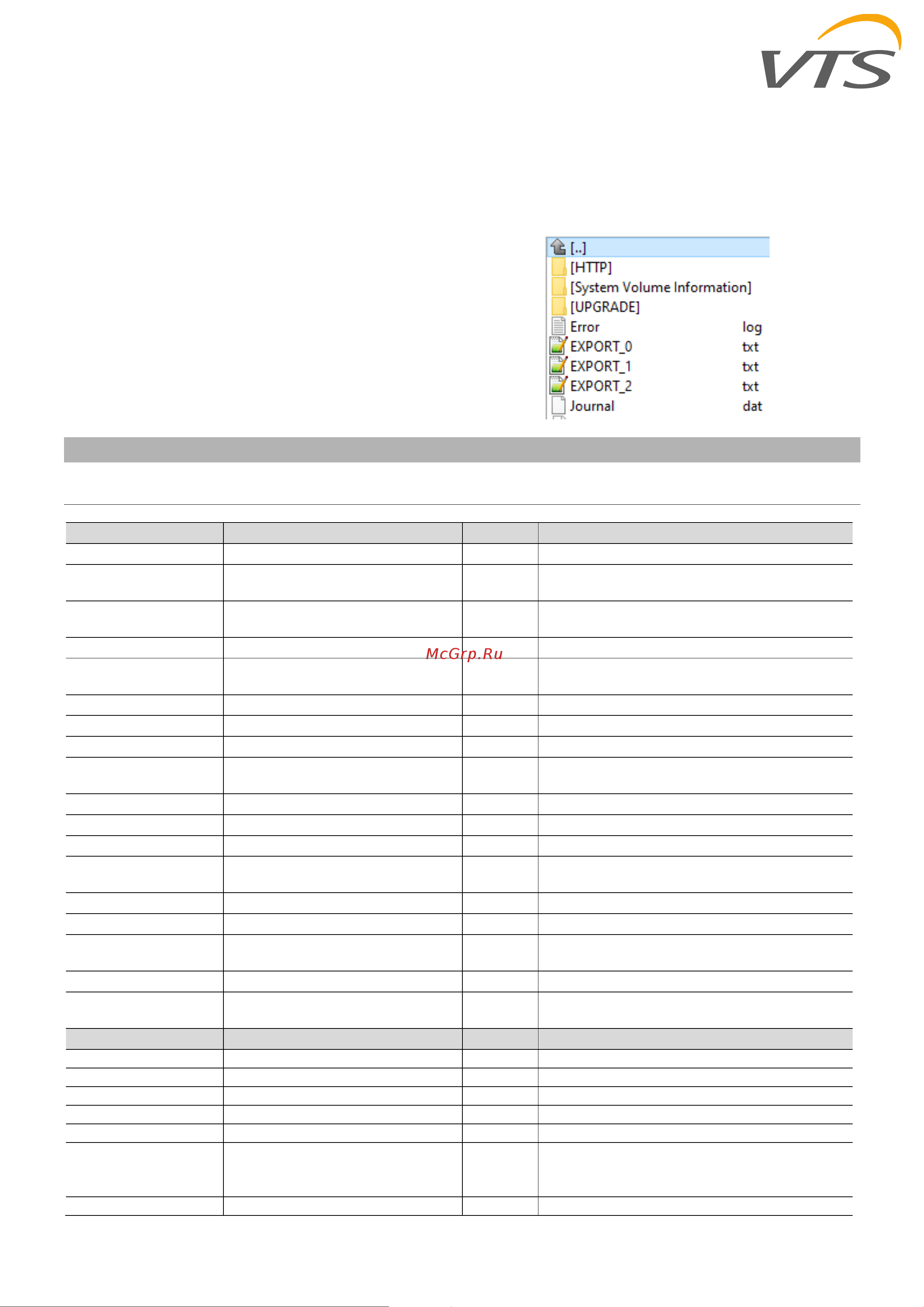

![VTS Ventus VVS180 [8/47] Installation](/views2/1894674/page8/bg8.png)
uPC3 – rel 1.8 – 11/2021
8
Before upgrading the software, it is possible to
save the existing AHU settings to restore later:
import / export is done in uPC3 via menu ->
unit cfg. -> I11 screen
the name of the settings file is Export_00 (the
"Export" part is fixed, the number is set by the
user) - it is possible to save several different
configuration settings and import them at the
desired time
the file with the given settings is saved in the
internal memory of the controller, it can be
accessed via a micro-USB connection or via
an ftp server
import / export is only allowed when the unit is
in the "Off" mode - otherwise a message about
the lack of import / export will be displayed
below are three sample configurations saved
in export files:
3. INSTALLATION
3.1 I/O configuration
Analog inputs
Descrition
Type
Note
B1
Supply temperature
NTC
Always enabled
B2
Return temperature
NTC
Forced enabled in case of return
temperature regulation
B2
Pre-Heater temperature
NTC
Enabled in uunit with Pre-Heaater and
Module I/O - MainBoard
B3
Outside temperature
NTC
Always enabled
B4
Recovery protection (Exhaust
temperature)
NTC
Enabled in case of recovery
B5
Back water temperature
NTC
Enabled in case of HW unit
B6
Supply after recovery
NTC
Enabled for Compact unit – only information
B6
After preheater temperature
NTC
Enabled in case of preheater
HMI Basic – Temp.
Room temperature
MB
Enabled in case of room temperature
regulation or HMI basic
Exp.31 – Hum.
Supply humidity
MB
Enabled in case of any humidity regulation
Exp. 32 - Hum.
Return humidity
MB
Enabled in case of return humidity regulation
Exp. 11 - Press.
Supply air pressure
MB
Enabled in case of fan regulation present
Exp. 12 - Press.
Exhaust air pressure
MB
Enabled in case of fan regulation present
and exhaust fan present
Exp. 21 – CO2
CO2 return sensor
MB
Enabled in case of air quality control
Exp. 18 - MainBoard
Supply air pressure
MB
Enabled in case of fan regulation present
Exp. 18 - MainBoard
Exhaust air pressure
MB
Enabled in case of fan regulation present
and exhaust fan present
Exp. 18 - MainBoard
Supply filter pressure
MB
Enabled in case of fan regulation present
Exp. 18 - MainBoard
Exhaust filter pressure
MB
Enabled in case of fan regulation present
and exhaust fan present
Digital inputs
Descrition
Type
Note
DI1
Fire alarm
Always enabled
DI2
Antifreeze thermostat
Enabled in case of HW option
DI2
Electric heater thermostat alarm
Enabled in case of HE option
DI3
Cooling alarm
Enabled in case of cooling coil enabled
DI4
Humidifier alarm
Always enabled
DI4
Supply filter
Enabled for unit without humidity / DI
win/sum / MainBoard activity / PCB-EC
activity
DI5
Summer/Winter
Enabled in DXH
