uPC3 – rel 1.8 – 11/2021
21

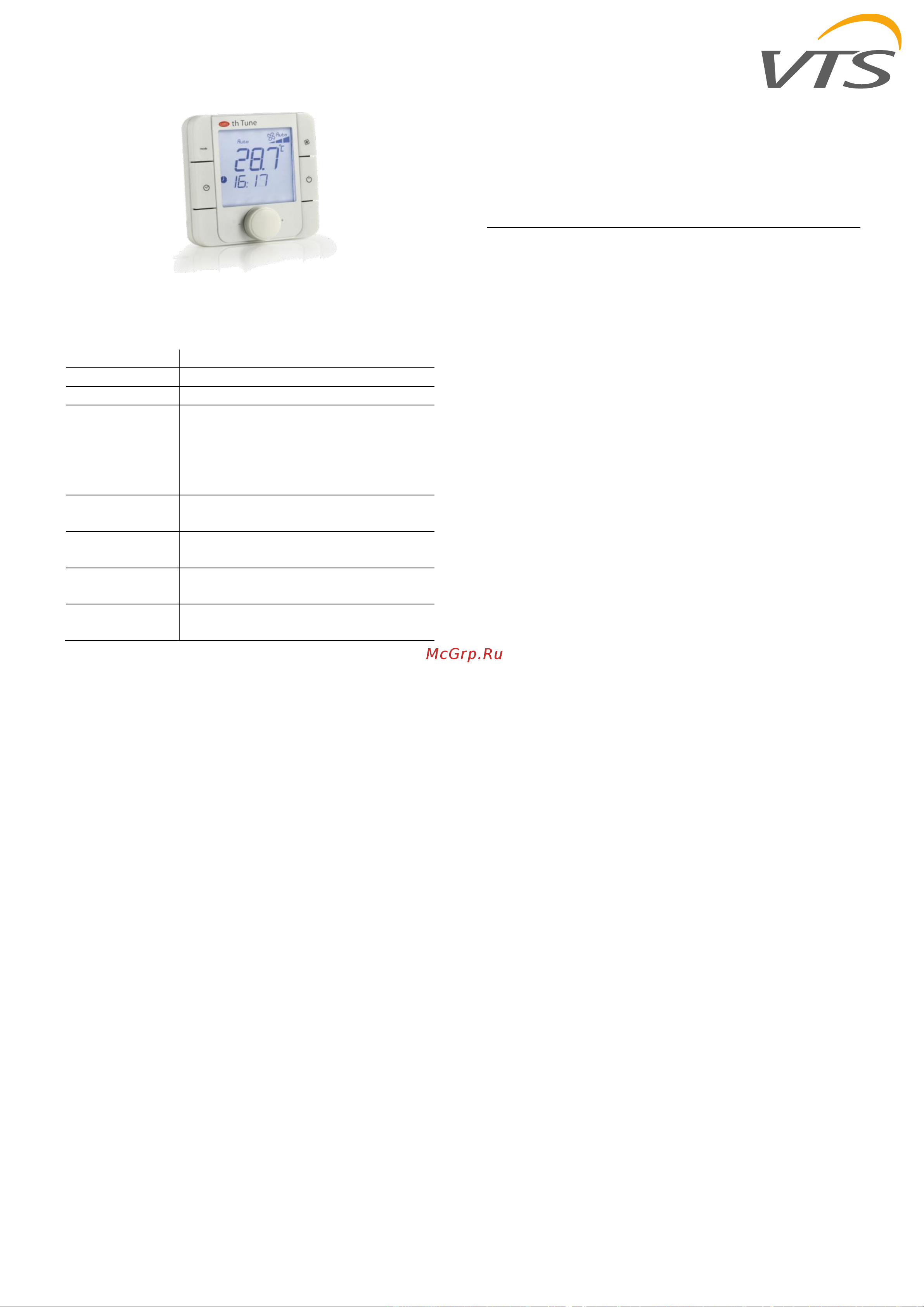

The terminal, which is shown in the figure above, has
4 buttons whose meanings are described below:
Mode
StandBy mode/Auto
Clock
Enable scheduler
Clock 3s
HMI Basic scheduler settings
Fan
Change working setpoint:
1. ECO
2. OPTIMAL
3. COMFORT
4. STOP
On-Off
Switch ON-OFF HMI Basic display
Exit from settings
Encoder 1
press
Check setpoint
Encoder
change
Change setpoint
Encoder 2
press
External temperature
PLC waits 5 seconds before saving changed
operating mode.
In case of alarm present, the alarm code will appear
in the second row of the HMI Basic and the alarm
icon will blink.
In case of temperature setpoint change from th-Tu
HMI Basic ne, the setpoint will change until the next
change, by scheduler, HMI Advanced or HMI Basic.
In case of StandBy mode by HMI Basic, the unit will
be switched OFF. After a settable time from HMI
Advanced, the unit will switch ON and it will check the
conditions. When the set conditions are reached
again, the unit will go to standby condition and it will
wait until the next check.
5.5 User setpoint
Temperature setpoint of the unit can be changed by:
Scheduler
HMI Basic
HMI Advanced
Comfort zone
The last setpoint change that come will wins.
HMI Basic and HMI Advanced can change the working
setpoint between ECO, OPTIMAL and COMFORT.
This working mode can change the following sets if the
functions are activated:
1. Temperature (supply, return or room)
2. Humidity
3. Air pressure (in percentage)
4. Air quality
