uPC3 – rel 1.8 – 11/2021
18
5. USER INTERFACE
5.1 Display HMI Advanced
The terminal, which is shown in the figure above, has
6 buttons whose meanings are described below:
-
Alarm
Display the list of active alarms
Manually reset alarms
- Prg
Change work mode
- Esc
Return to the previous screen
- Up
-
Down
Navigate between the display
screens or increase/decrease the
value.
-
Enter
Switch from parameter display to edit
Confirm value and return to the
parameter list

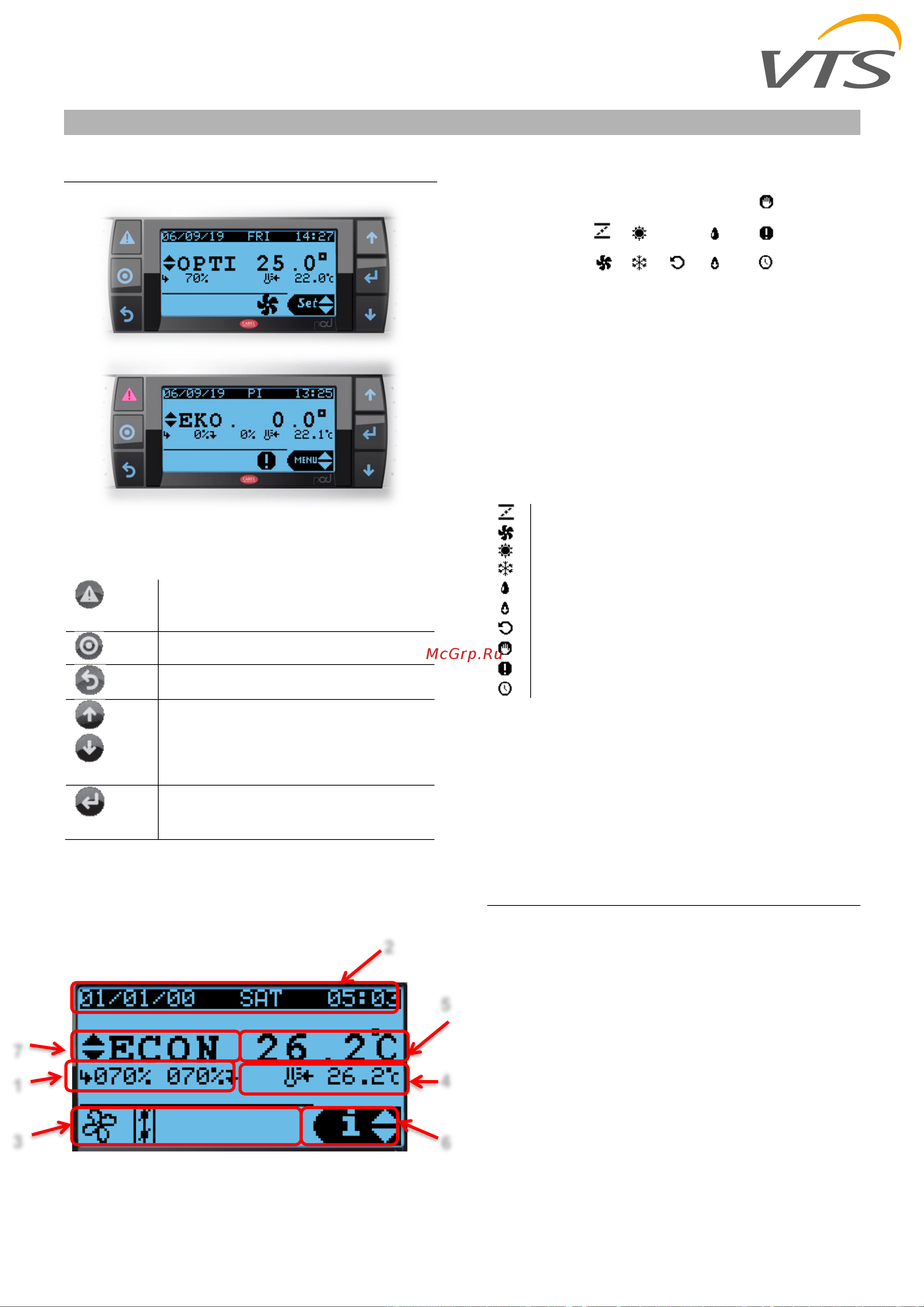

The following screen displays an example of the main
screen with an active unit, highlighting the fields and
icons used:
1. Fans speed
2. Date and Time
3. Current unit status:
1
2
3
4. Main temperature regulation
5. Set point
6. Indicates access to the user menu using the
UP, DOWN and ENTER keys to confirm
7. Selection of operating mode
- STOP
- ECO
- OPTIMAL
- COMFORT
- AUTO (scheduler)
- opening / closing dampers
- fans work
- heating
- cooling
- humidification
- dehumidification
- active recovery
- normal stop
- emergency stop
- active scheduler
Changing the control panel operating mode is possible
by pressing the PRG (1) button as many times until the
desired operating mode appears on the screen. The
mode is accepted by pressing the "ENTER" (2) button.
Lack of acceptance within 30s will return you to the
previously set mode. In order to cancel the selected
mode in advance, you can use the "ESC" button.
5.2 User Menu
On the main screen, the UP and DOWN buttons can
be used to scroll through the functions and ENTER
used to select them. No password is needed to access
and edit these parameters.
PRG button is used to change the work mode.
Changing the work mode must be confirmed by the
user within 6s by ENTER button. In the absence of
confirmation work mode returns to the last value
2
1
7
3
5
4
6
