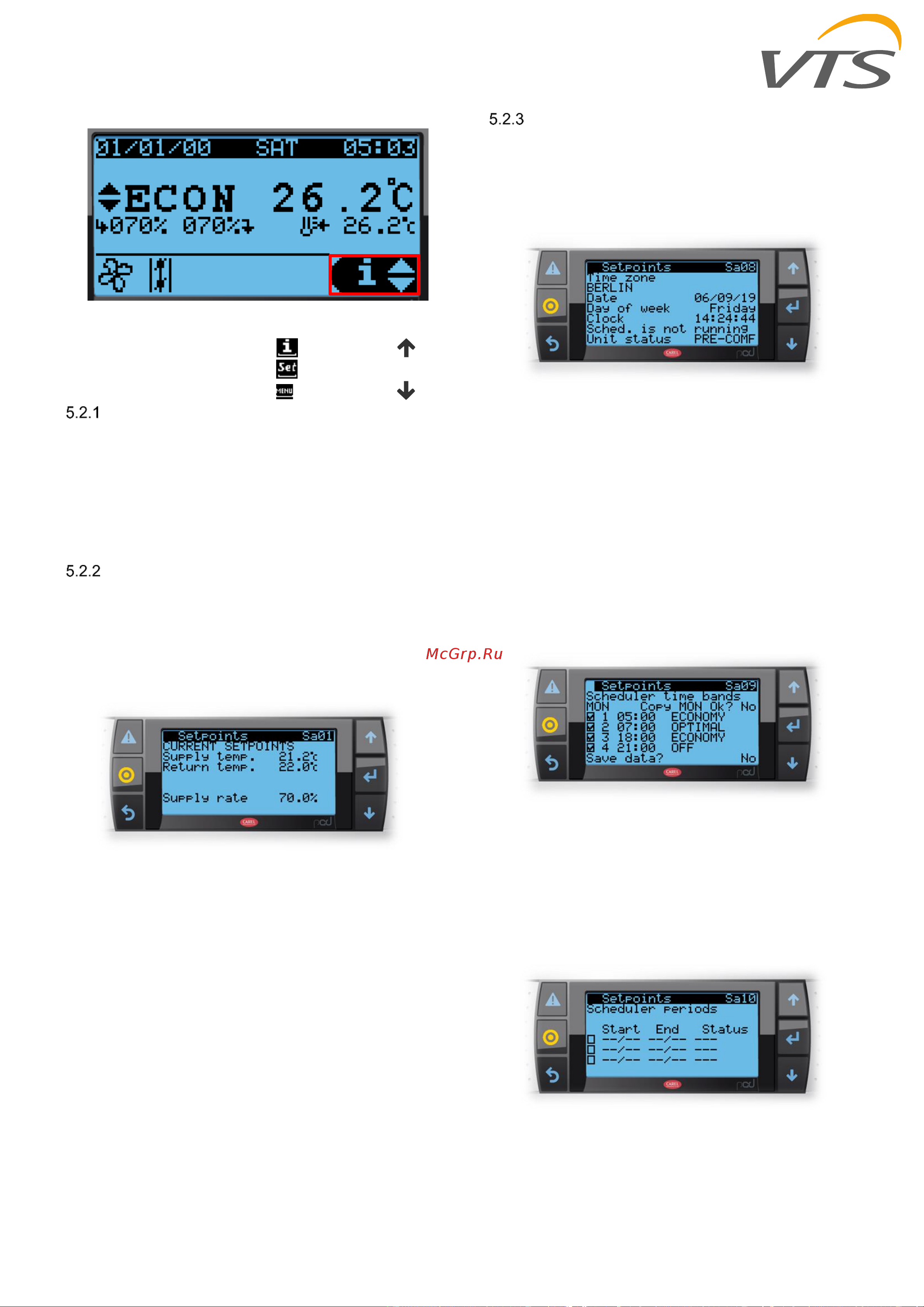

uPC3 – rel 1.8 – 11/2021
19
Info
Set
Menu
Info
The general synoptics for the unit can be shown from
the user menu. The physical status of the inputs,
device outputs and probes are available in a menu
connected to the synoptics.
The individual screens of the synoptics are shown
below.
Set
In this menu is possible to see the current setpoint and
the working mode, defined by the scheduler. It’s
possible to set the setpoint of the unit and the
scheduler. Set Point is represented by one variable for
each mode.
The transition to the setting screen is done using the
"UP" / "DOWN" keys. On screens from you can find
(depending on the active configuration):
• supply air temperature
• room / extract temperature
• air humidity
• air quality
• efficiency of the supply fan
• exhaust fan efficiency
On the screen you can change the settings for each
operating mode individually. Moving the cursor to the
active field is done by pressing the "ENTER" button.
Change in value - with the arrow keys. Accepting the
set value and moving to the next field is done by the
"ENTER" button.
Scheduler
Time zone / date / time
On the scheduler screen, you can select the time zone
in which the controller is located and set the current
date, time and day of the week.
Time schedule
On clock screen you can set a time schedule.
The time schedule is active when the control is in the
AUTO mode.
Basic schedule
The basic daily schedule allows you to program 4 work
mode changes, individually for each day.
After setting the schedule for the selected day, this
selection should be saved. After saving, it is possible
to copy the settings to other days or immediately for
the whole week.
Special periods
On the periods screen it is possible to set periods
(dates from - to) in which the schedule will be modified.
There are settings for three intervals and they have a
higher priority than the basic schedule. In this way, the
control panel can be programmed eg during holiday
periods.
Special days
On the special day screen is possible to set six special
days, which have the highest priority.
