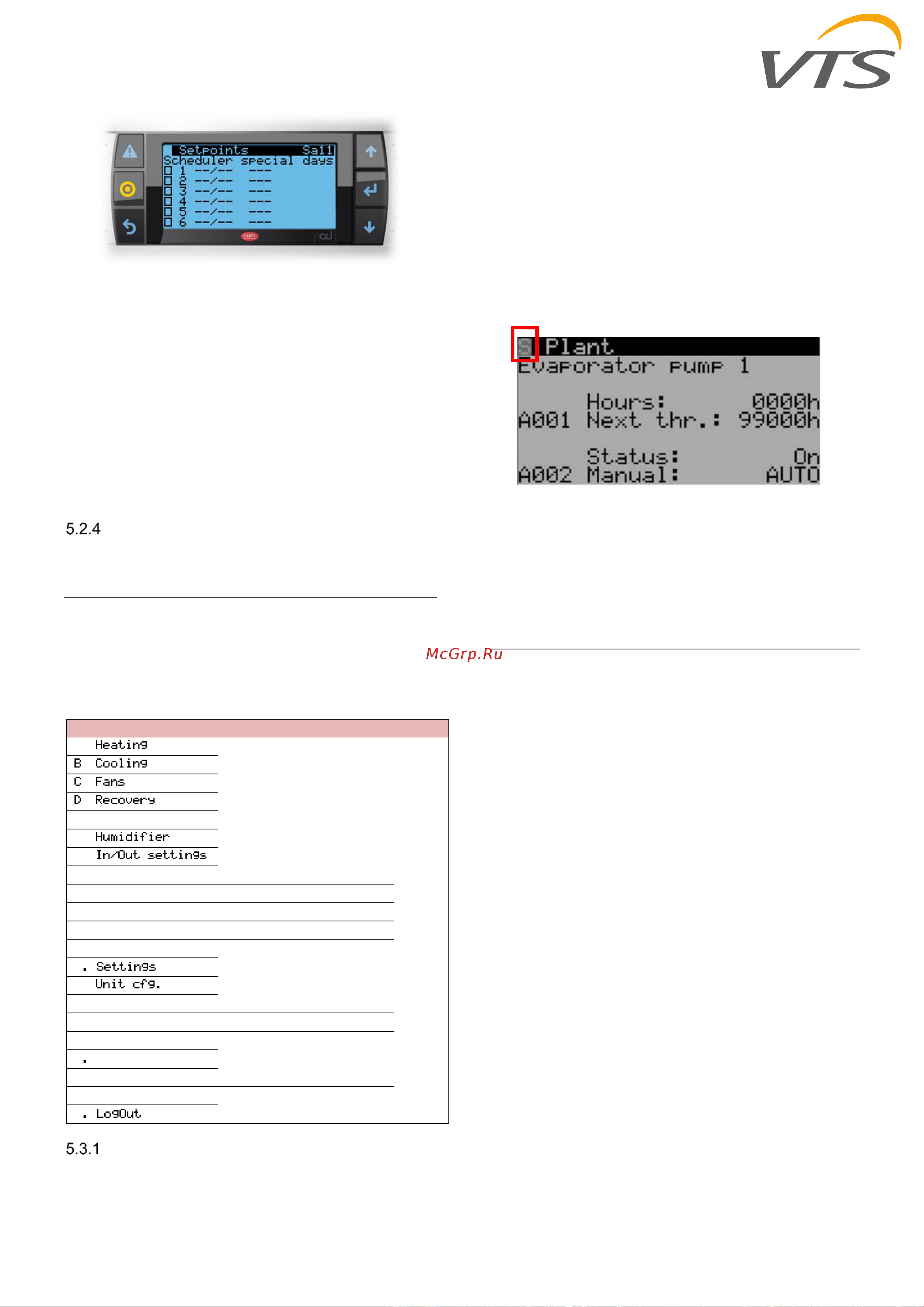

uPC3 – rel 1.8 – 11/2021
20
Implementation of the schedule
Considering the priorities of time schedule settings,
the order of their implementation is as follows:
• The first special day settings are those with the
highest priority. The other settings are then
ignored.
• If a given day is not defined as special, but is in a
special period, then the mode for the special
period is implemented.
• If both of these do not occur, the basic schedule is
implemented.
Menu
Access the main menu
5.3 Menu description
Regardless of the displayed screen, pressing the
programming key accesses the password entry
screen which allows access to the main menu shown
below.
The code of the mask is determined by the menu tree.
First letter
Second letter
N.
0
0..99
0
0..99
0
0..99
0
0..99
E. Mixing
0
0..99
F
0
0..99
G
0
0..99
a. Activation sensors
b. Offset sensors
c. Rotate DI
d. Type sensor
e. Manual sensor
H
0
0..99
I
0
0..99
a. Application code
b. Type VFD
c. Type regulation
J Other
0
0..99
a. Module I/O
b. Export logs
K
0.99
Password Management
The program has 3 different password levels:
1. Advanced user (maintenance): read only access
to all parameters. Default password: 0000.
2. Service: read access to all parameters with the
ability to edit some of them (for more information
on the parameters that can be changed, see the
parameters table). Default password: 0001.
3. Manufacturer: read/write access to all parameters.
Default password: 0002.
In the parameters screen, the access needed to edit
the parameters is shown, always with the same codes.
An example follows.
Once the password is entered it will be maintained for
5 minutes from the last time a key was pressed and
then the password will need to be re-entered in order
to access the parameters of the advanced functions.
In the Log-Out menu, the password can be force
entered without waiting 5 minutes.
5.4 Display HMI Basic
The basic interface with built-in temperature sensor.
• HMI Basic also has a built-in clock with
support for time schedules.
• LCD display: Indicates the actual temperature
in the room or on the main control sensor and
the selected setpoint, operating mode, fan
speed, time and day of the week.
• On / off button. : Switch between ON / OFF
status. (forces the control panel to stop or
enables selection of the operating mode)
• Fan button: Setting the fan speed
• Clock button: Entering the Auto mode. The
driver will work according to the schedule from
the Calendar settings.
• Attention! There are two options for the
calendar program. Details in the chapters on
the Calendar and Service menu.
• Rotary button: Change of settings - by turning,
accepting new values - by pressing.
Attention! To change the temperature setpoints,
simply turn the knob.
