uPC3 – rel 1.8 – 11/2021
10

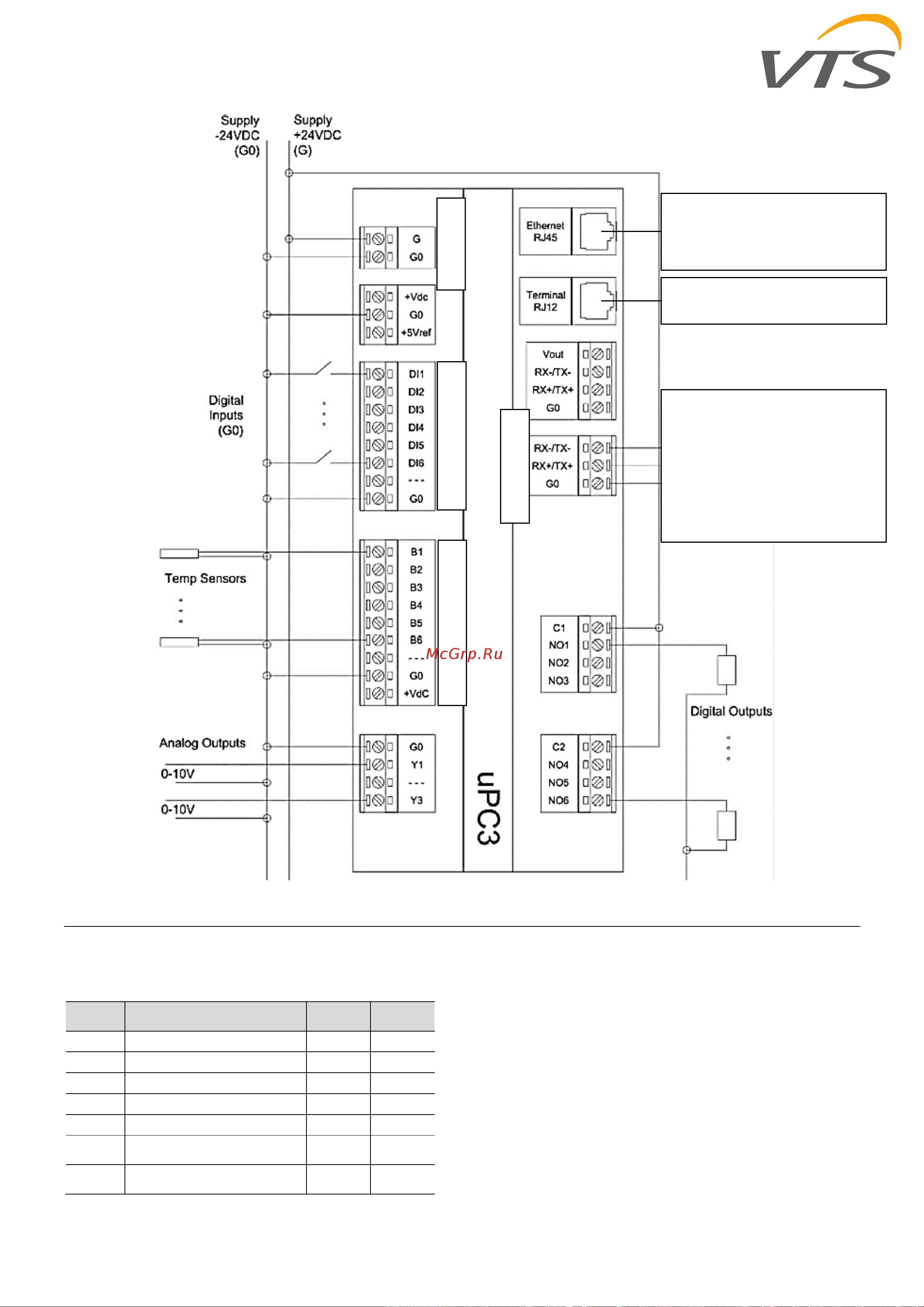

3.2 Standard input/output for function
I/O
Standard elements for all units
uPC3
I/O
Descrition
Type
Note
B1
Supply temperature
NTC
B2
Return temperature
NTC
Optional
B3
Outside temperature
NTC
DI1
Fire alarm
NC
DI6
Remote Off
NC
pLan
RJ12
HMI Advanced terminal
pLan
3-pins
RS485
HMI Basic terminal
RS-485
Optional
Expansion module I/O
Compact suspended / floor RRG unit with built-in
automation standard equipped with an:
• expansion module I/O – MainBoard Control-
Circuit,
• CAV regulation for fan
• all sensor temperature with additional B6 after
recovery on supply.
• humidity return sensor
Ventus CBX - Controlbox automation standard
equipped with an expansion module I/O – PCB-EC.
Supply
24V
DC
Digital input
Modbus RTU
Master for additonal elements
- VFD,
- HMI Basic,
- PCB-EC,
- MainBoard,
- Humidity sensor
- Pressure sensor
- CO2 sensor
Ethernet:
- Modbus TCP/IP
- Webserver:
http://192.168.1.111/index.html
Analog input
– NTC10k
pLan:
- HMI Advanced terminal
Modbus
master
