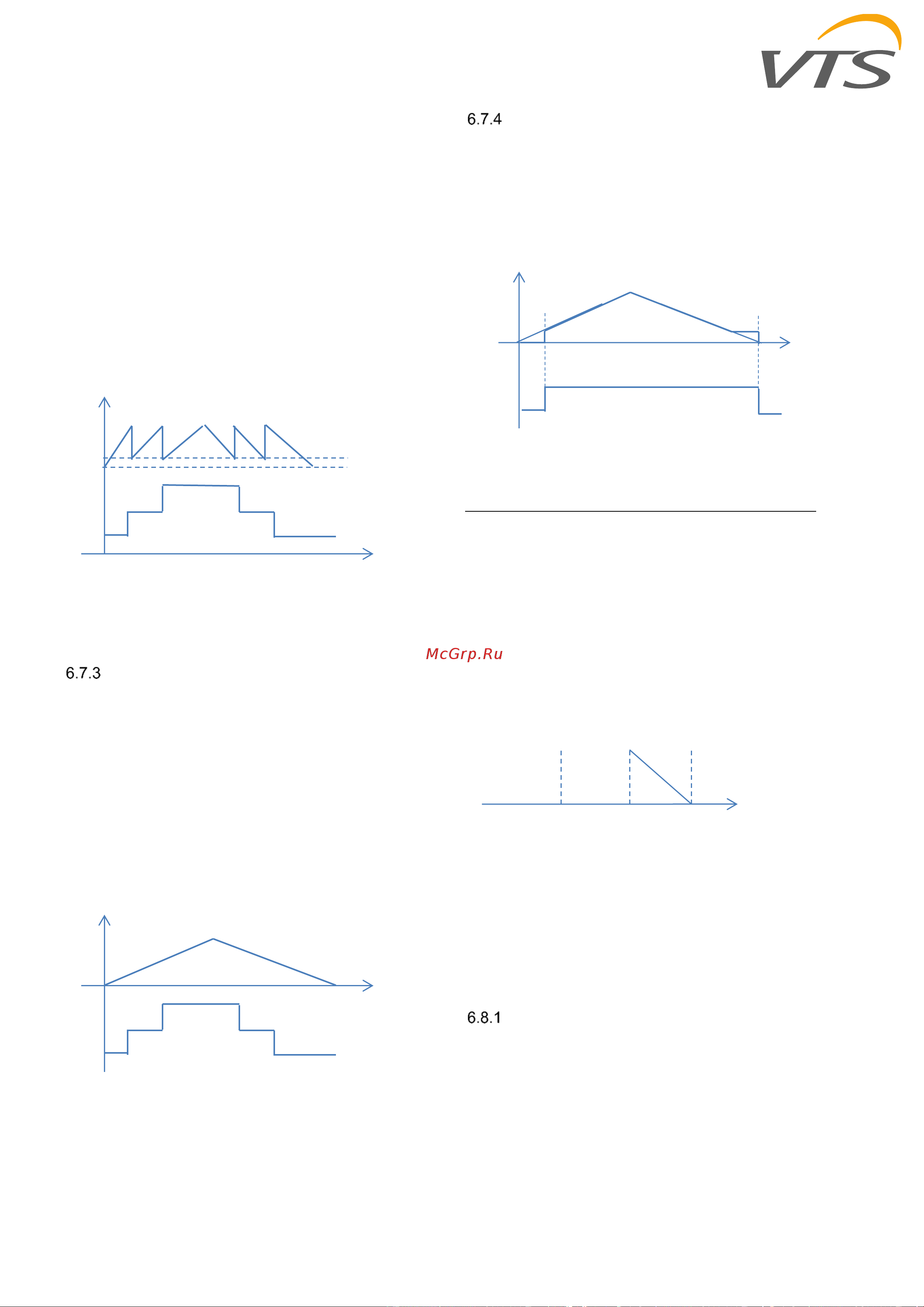

uPC3 – rel 1.8 – 11/2021
25
change to satisfy in the best way the request by
thermoregulation.
Here below an example with devices with the same
power:
Min inverter power: 20%
Max heaters power: 33.3kW
In this case the second heater will start when the
request reach the threshold calculated in the
following way:
Before to start the ON-OFF device, the request
must be greater than 20% of the power of the
second device.
Here below the graph:
It’s possible to set different power of the heaters,
so the ON sequence will be different to follow the
request from PID loop.
Direct expansion (DX)
Below the description of how the direct expansions
circuit works in the application. DX could be
present according application code in main cool,
main heat, reverse, preheat and reheat sides.
The PID sequence calculate a request 0-100% that
is executed by ON-OFF devices and by a
modulating device.
Each ON-OFF device has a threshold to start the
device and a threshold to stop the device.
The modulating element will follow the request from
PID sequence.
Between the stages activation there is a timinings
control, listed below:
1. Minimum On time
2. Minimum Off time
3. Time between same device.
Steam
Below the description of how the steam device
works in the application. Steam device could be
present in the main heater only.
The PID sequence calculate a request 0-100% that
is directly executed by the steam actuator.
Here below the regulation of device:
Steam device doesn’t need antifreeze and frost
protection.
6.8 Antifreeze management
Antifreeze management is divided in different
stages.
Startup: described in start/stop sequence
paragraph.
Running: see preheater regulation.
Low temperature by thermostat: in case of low
temperature by thermostat the fans are stopped,
the damper are closed and the heating devices are
forced to 100%.
Low back water condition: if the back water temp.
is too low the unit behave in the same way of low
temperature by thermostat.
If the back water temp. is lower, according to
another threshold, the back water temperature set
is compensated with a delta according to the
external temperature.
PreHe: Preheater
The device will modulate accoding to its PID
settings to keep the setpoint based on after
preheater coil temperature.
Main goal of this device is prepare air for recovery
and to avoid antifreeze condition for heat recovery
device. In case of hot water coil, the request from
the PID on after coil temperature is used to
calculate the setpoint of the water, then another
PID calculate the opening of the valve.
0%
100%
Modulation signal
ON/OFF steps
Min
0%
100%
Start 1
Start 2
Stop 2
Stop 1
0%
100%
Min
Valve
Pump
B.Water.temp.
Thermostat
Thr. Low b.water.
Low freeze set
High freeze set
Alarm
Back water compensation
