uPC3 – rel 1.8 – 11/2021
7

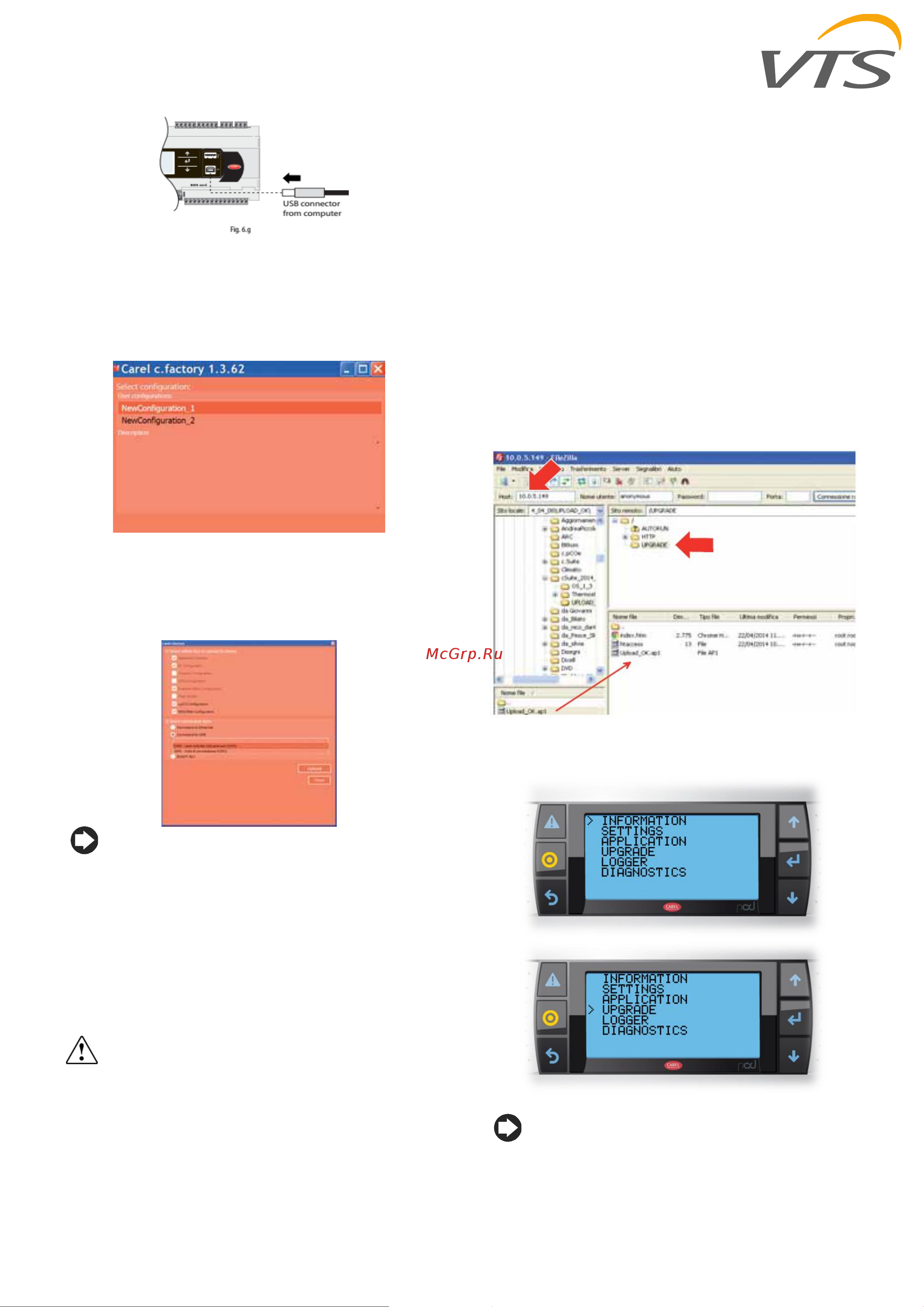

1- Open c.factory and select the application program
file compiled in c.suite (“.otr” file extension). The tool
will list the configurations defined in c.design. Select
the configuration to be loaded on the controller and
click “next”.
2- Select the files be loaded on the controller and
“USB Connection” type. Select the serial port that the
uPC3 controller is connected to via USB cable and
click “upload”;
. Note: if the uPC3 controller contains an
application program that is protected by a different
password or digital signature than the new application
program, a dialogue box will be shown prompting for
the previous password. If the password entered is
correct, the new application program can be upladed.
3-At the end of the update procedure, the uPC3
controller restarts automatically with the new
application program (or new configuration)
Attention: before updating the uPC3 controller
via USB connection, check in the system menu that
the Device USB port is enabled (Settings USB
Settings PC connection)
Updat with file transfer via FTP
The uPC3 family con trollers fitted with Ehternet port
include an FTP srver that provided acces to the public
partition of the file system. Files and directories in this
partion can be read, modified, created and deleted.
FTP can also be used to transfer and .ap1 file, for
example to update the image of the operating system
or the application program. This is done using an FTP
client, for example “FileZilla”. The default username to
access the file system is “anonymous”. To protect the
contents of the public the file system against
unauthorised access, different user can be created,
assigning each a different access profile, dedicated to
each service and adapted to the individual directory.
To update via FTP:
1-Open an FTP client. Enter the IP address of the
uPC3 controller and the access credentials (default
user “anonymous”, no password)
2- Drag&drop the software update file from the
directory on the computer to the “UPGRADE” directory
on the uPC3 controller
3-Access the system menu on the uPC3 and select
“UPGRADE”
. Note: when having loaded the update file to the
“UPGRADE” directory via FTP, the update procedure
can also be started using the virtual terminal.
