PE5T User Manual
18

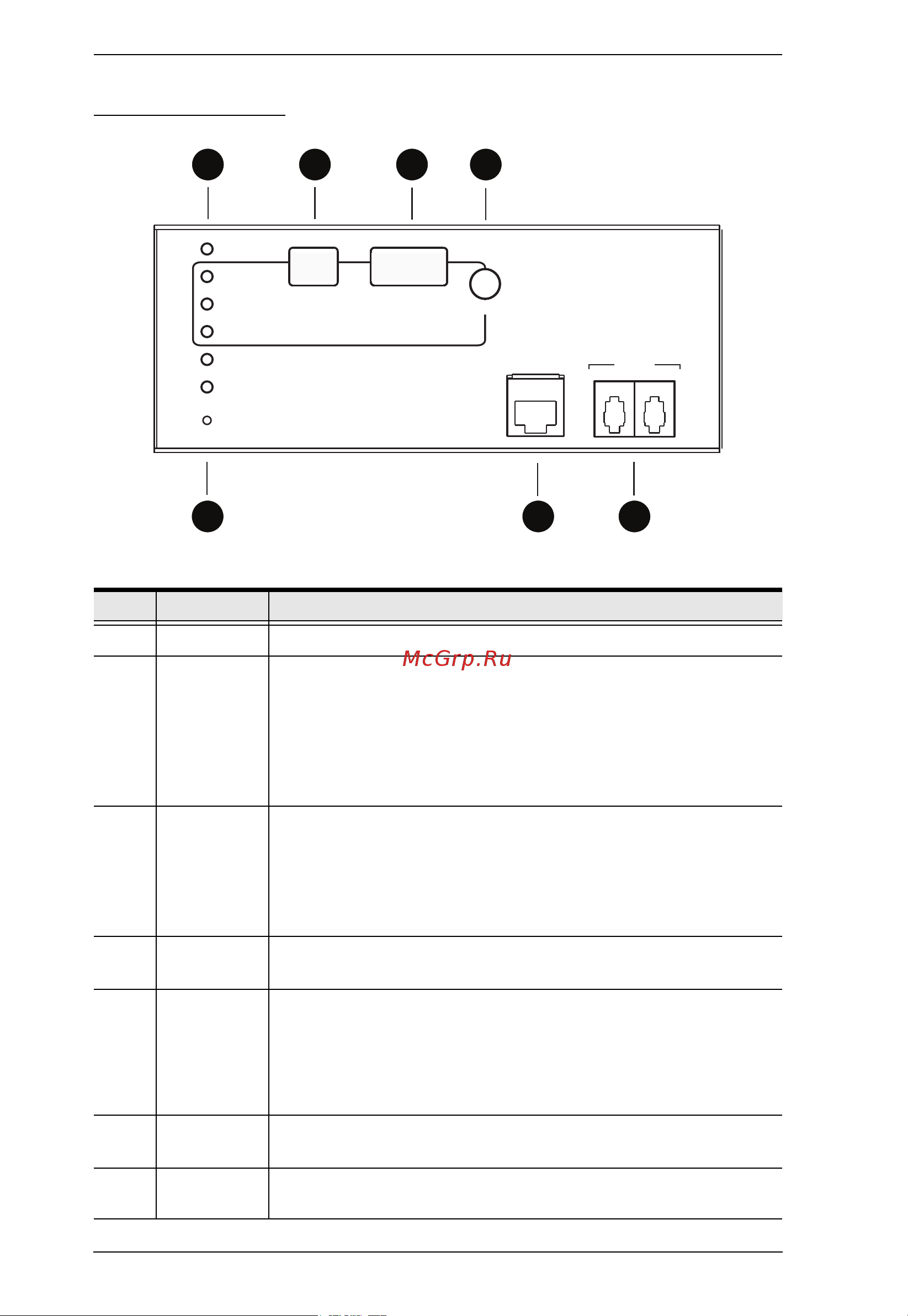

Readout Section
No. Item Description
1 status LEDs Power: Lights when the unit is powered on and ready to operate.
2 ID section
The ID of the selected PDU/ Phase / Bank / IP appears in the
LED display window.
When the PDU/Phase LED is lit, use the selection button to
cycle through the items.
When the Bank LED is lit, use the selection button to toggle
between Bank 1 and Bank 2
3 readout
section
When PDU/ Phase / Bank / IP is selected, readouts for
Current and IP appear in the display.
Press the button next to the LED display window to cycle the
selection between the items.
When a sensor is plugged in, the sensor LED lights up.
4 selection
pushbutton
Press this button to cycle the selection through the items; the
LEDs next to the items indicate which one the displays relate to.
5 reset button This button is semi-recessed and must be pushed with a thin
object, such as the end of a paper clip.
Press and release to reboot the device.
Press and hold for more that three seconds to reset the eco
PDU to its factory default settings
6 LAN port The cable that connects the unit to the Internet, LAN, or WAN
plugs in here.
7 sensor ports External sensors plug into these two RJ-11 ports. See Optional
Accessories, page 7, and Securing the Sensors, page 24.
1 3
5
2
7
LAN
SENSOR
12
SELECT
POWER
PDU
/ PHASE
BANK
IP
SENSOR 1
SENSOR 2
RESET
4
6
