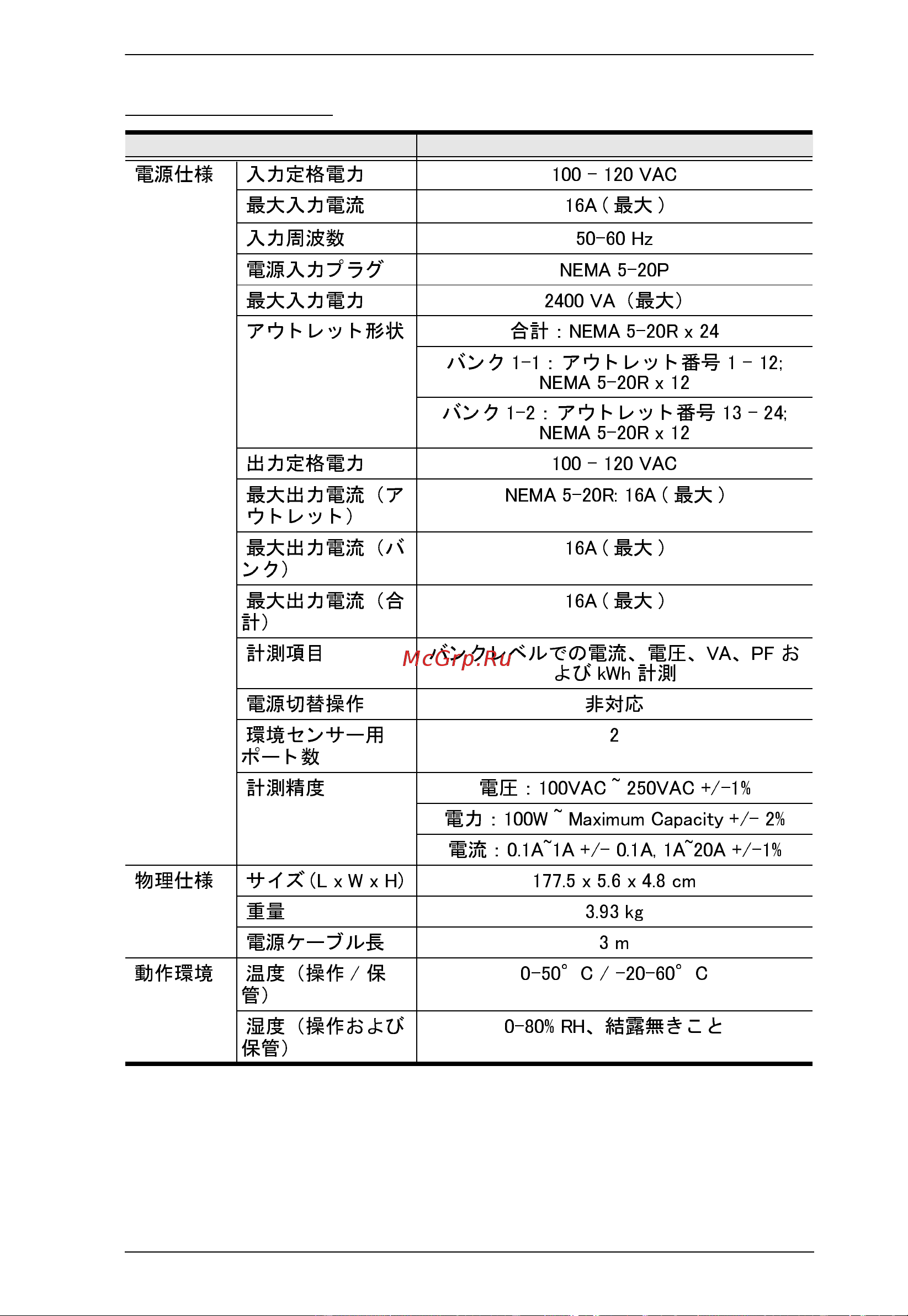

Appendix
71
PE5224TA - Japan
Function PE5224TA
電源仕様 入力定格電力 100 – 120 VAC
最大入力電流 16A
(最大)
入力周波数 50-60 Hz
電源入力プラ グ NEMA 5-20P
最大入力電力 2400 VA （最大）
アウ ト レ ッ ト形状 合計 ： NEMA 5-20R x 24
バン ク 1-1 ： アウ ト レ ッ ト 番号 1 – 12;
NEMA 5-20R x 12
バンク 1-2 ： アウ ト レ ッ ト 番号 13 – 24;
NEMA 5-20R x 12
出力定格電力 100 – 120 VAC
最大出力電流 （ア
ウトレット）
NEMA 5-20R: 16A
(最大)
最大出力電流 （バ
ンク）
16A
(最大)
最大出力電流 （合
計）
16A
(最大)
計測項目 バン ク レベルでの電流、 電圧、 VA、 PF お
よび kWh 計測
電源切替操作 非対応
環境センサー用
ポート数
2
計測精度 電圧 ： 100VAC ~ 250VAC +/-1%
電力 ： 100W ~ Maximum Capacity +/- 2%
電流 ： 0.1A~1A +/- 0.1A, 1A~20A +/-1%
物理仕様 サイズ (L x W x H) 177.5 x 5.6 x 4.8 cm
重量 3.93 kg
電源ケーブル長 3 m
動作環境 温度 （操作 / 保
管）
0–50°C / -20–60°C
湿度 （操作および
保管）
0–80% RH、 結露無き こ と
