Aten PE5342TG [58/88] Working mode

PE5T User Manual

Security

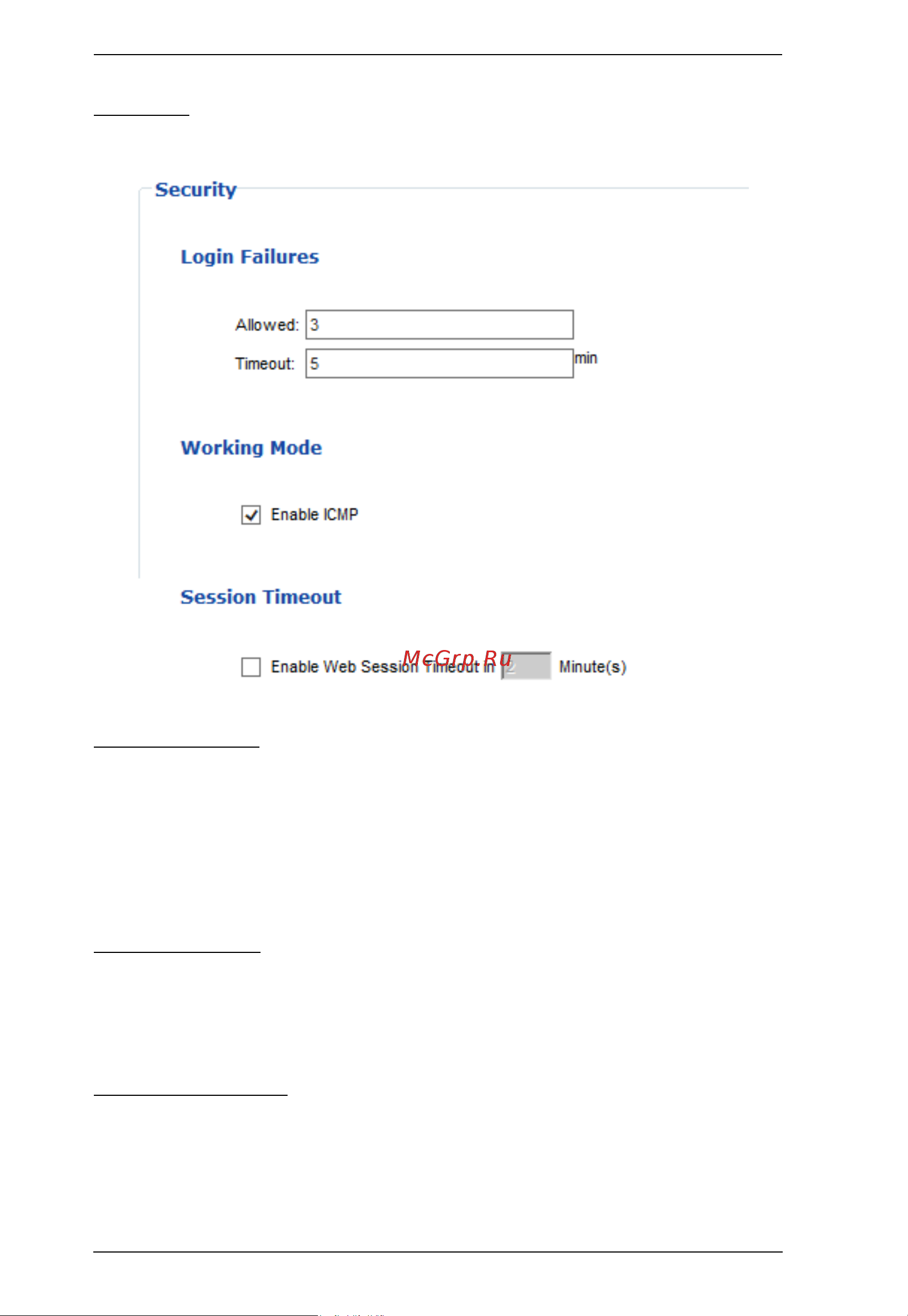

The Security page controls access to the eco PDU device.

 Allowed sets the number of consecutive failed login attempts that are

permitted from a remote user.

 Timeout sets the amount of time a remote user must wait before

attempting to login again after exceeding the number of allowed failures.

Working Mode

 If ICMP is enabled, the eco PDU device can be pinged. If it is not

enabled, the device cannot be pinged. The default is Enabled.

Session Timeout

 If Web Session Timeout is enabled, you can enter the number of minutes

that can pass before the system forces a user to logout of the session.

 When you have finished making your settings on this page, click Save.
