Aten PE5342TG [37/88] Network configuration

Chapter 3. Basic Operation and First Time Setup

Network Configuration

To set up the network, do the following:

1. Click the Setup tab.

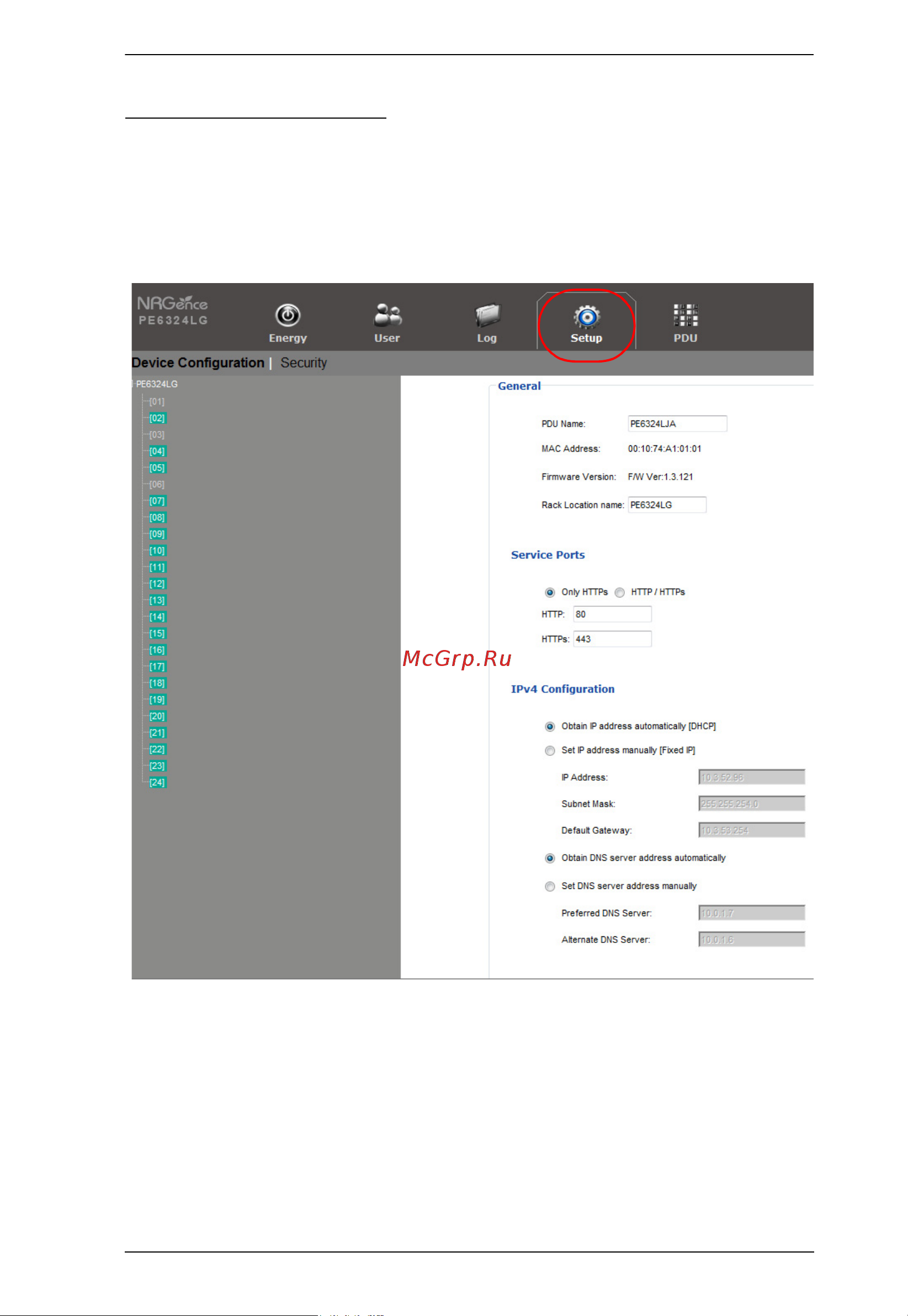

2. The interface displays the Device Configuration page. A screen similar to

the one below appears:

3. Fill in the IPv4 Configuration fields according to the information

provided under IPv4 Configuration, page 42.
