PE5T User Manual
34

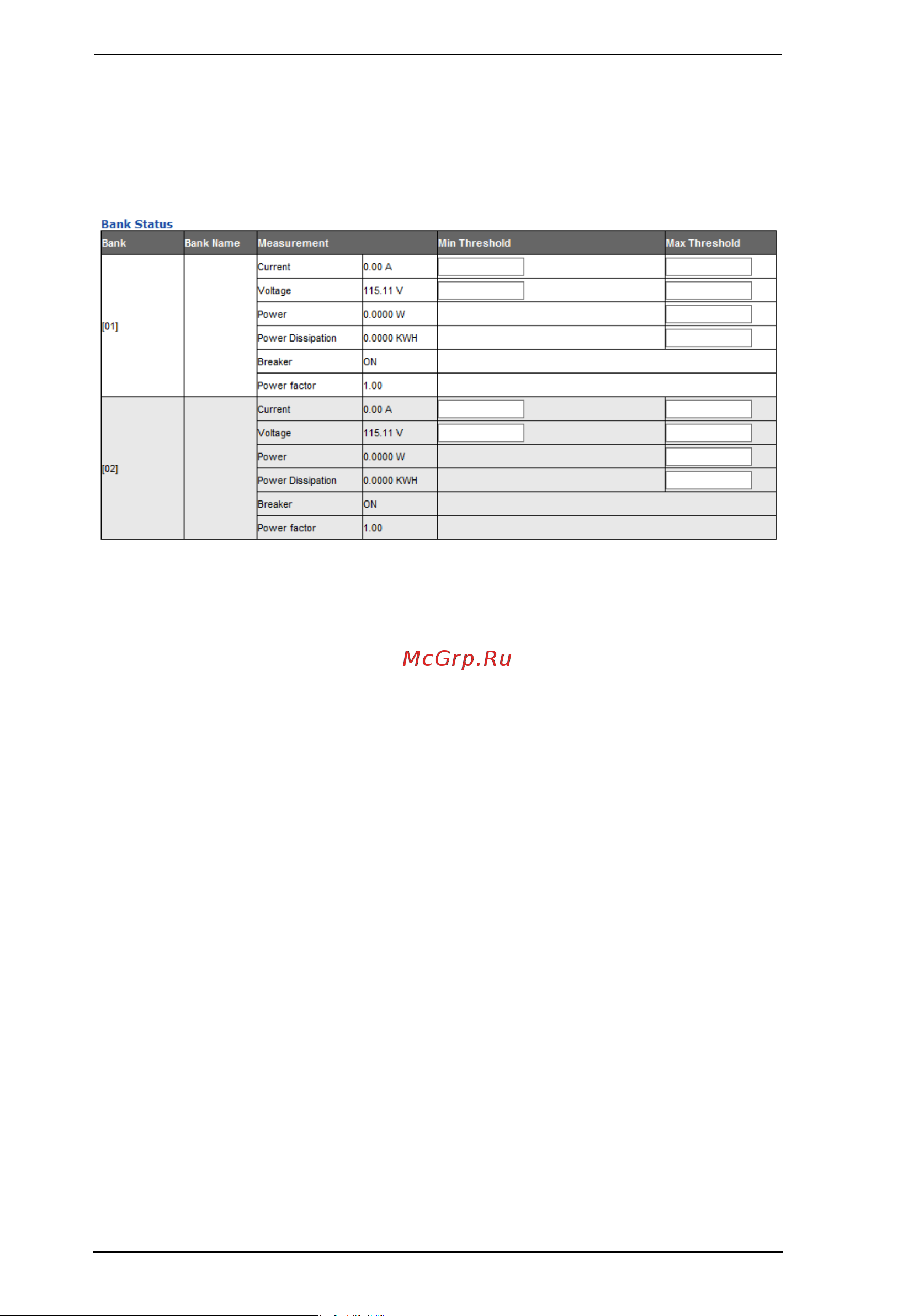

Bank Status
The PE5324T / PE5342T PDU models support bank level and circuit breaker
monitoring. The Bank Status section allows you to set up separate power
management configurations for the banks:
Bank Threshold Settings
These fields are used to set the maximum and minimum threshold settings
for Current, Voltage, Power, and Power Dissipation. If a range falls below
the minimum setting, or exceeds the maximum setting an alarm is
triggered.
Breaker status (ON / OFF) displays here.
Power Factor displays a ratio between real and virtual power, providing a
power performance value based on external power sources (i.e. not related
to the eco PDU device).
