Chapter 4. Browser Operation

Configuration

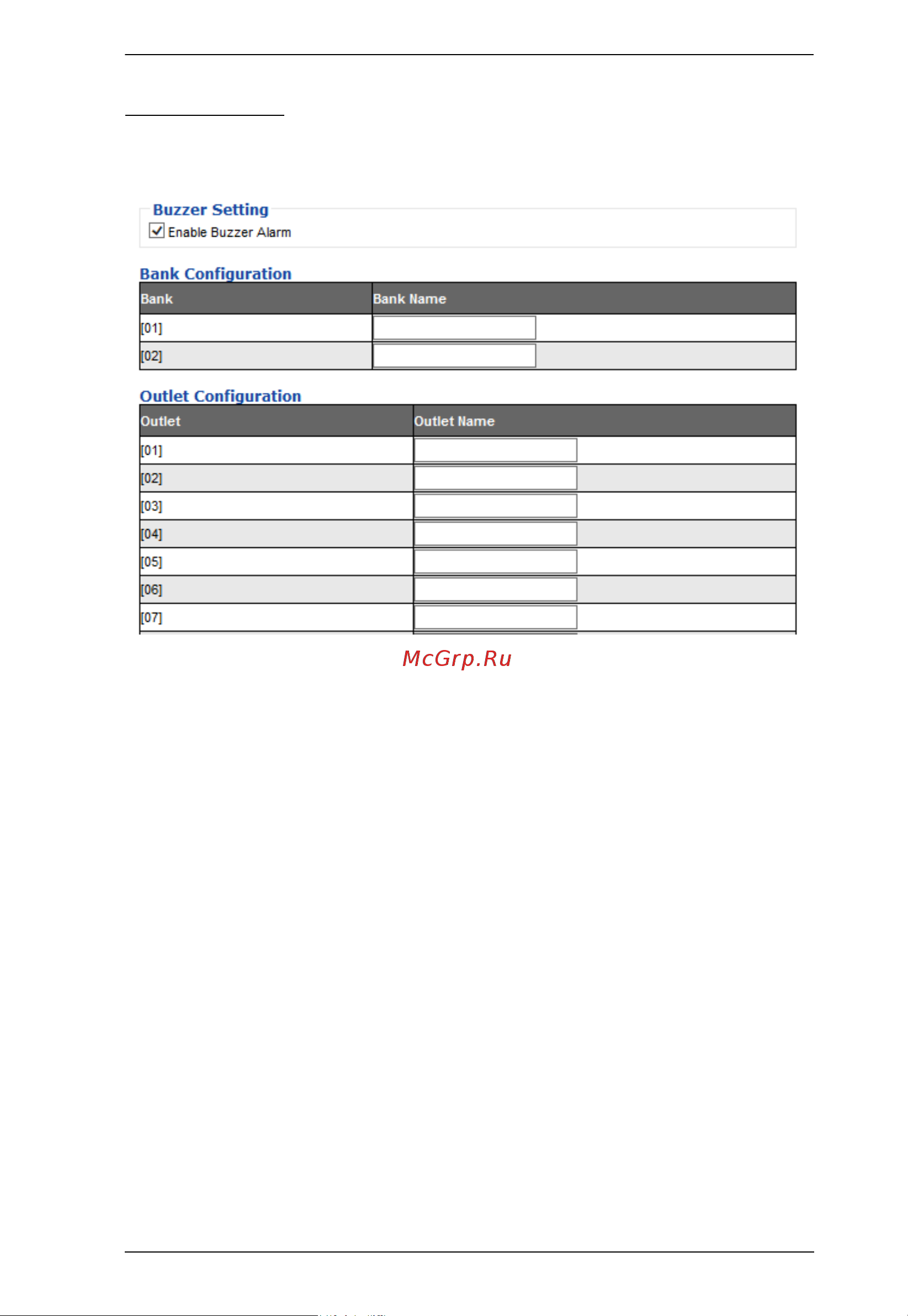

The Configuration page is used to give a distinctive name to all the banks

(PE5324T / PE5342T

only

)

and outlets:

 Click inside the field to input a name for a bank or outlet. The maximum

number of characters is 15; input only alphanumeric characters, [Space]

and [Underscore].

 Click Save, located at the bottom right of the page, to save the names.
