Chapter 2. Hardware Setup
23

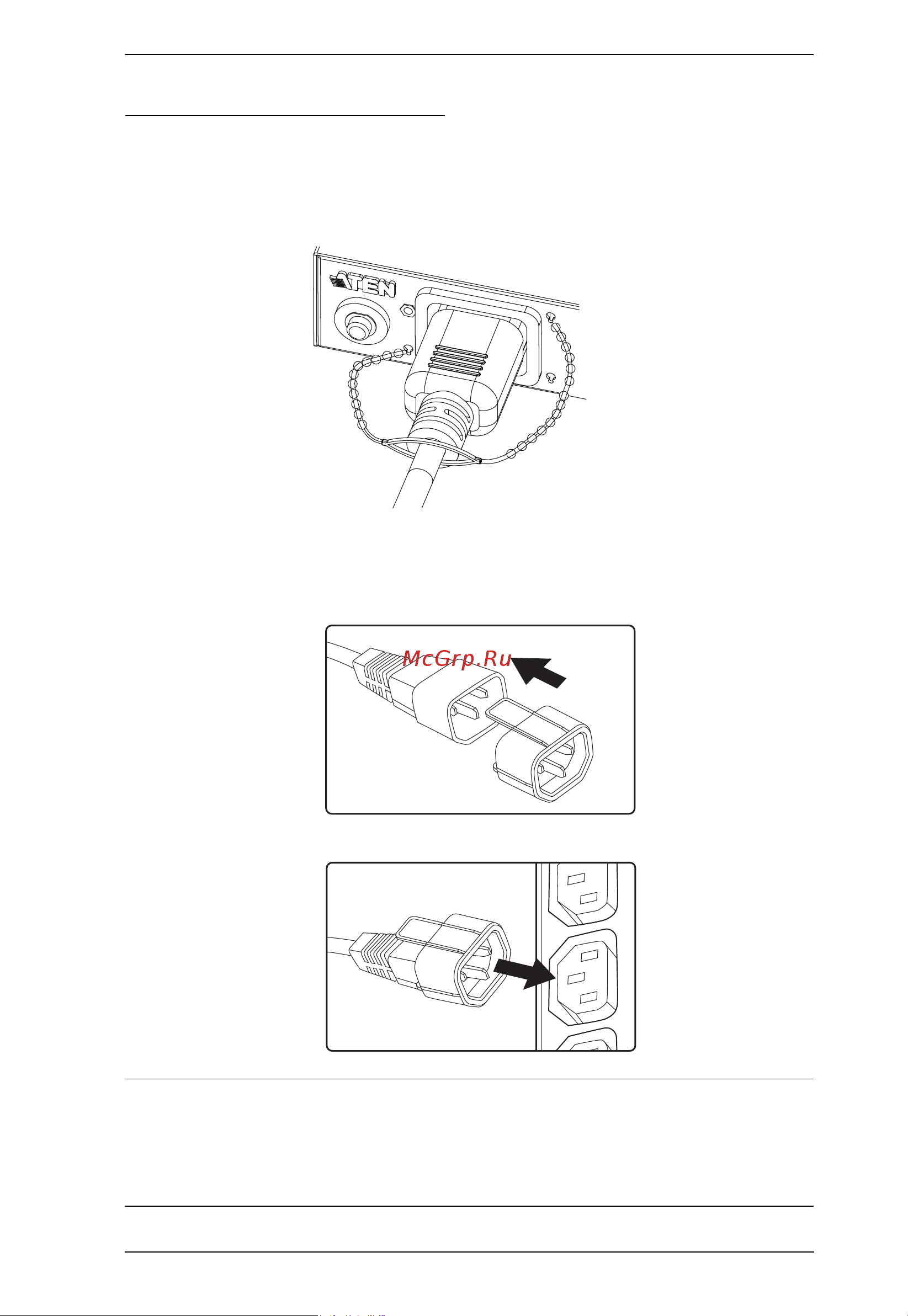

Securing the Cables / Plugs
For added safety, use ATEN Lok-U-Plug cable holders or EZ-Lok Plug
Connectors to secure the cables from your attached devices in place on the eco
PDU unit. Secure the cable holders using the specially designed holes around
the individual power outlets, as shown below:
For EZ-Lok Plug Connectors fit the plug connector onto the input end of a C14
or C20 plug until it clicks in place and then connect the plug with the EZ-Lok
Connector into the PDU by sliding it directly over and straight into the outlet.
Note: 1. Cable holders are an optional accessory. See Cable Holders, page 7.
2. Use only the ATEN Lok-U-Plug cable holders or EZ-Lok Plugs that
have been specifically designed to work with the eco PDU. Using any
other kind of cable securing device could be highly dangerous.
