Chapter 4. Browser Operation

 IP Filter / MAC Filter

If any filters have been configured, they appear in the IP Filter and/or MAC

Filter list boxes.

IP and MAC Filters control access to the eco PDU based on the IP and/or MAC

addresses of the client computers attempting to connect. A maximum of 5 IP

filters and 5 MAC filters are allowed.

To enable IP and/or MAC filtering, click to put a check mark in the IP Filter

Enable and/or MAC Filter Enable checkbox.

 If the include button is checked, all the addresses within the filter range are

allowed access; all other addresses are denied access.

 If the exclude button is checked, all the addresses within the filter range

are denied access; all other addresses are allowed access.

Adding Filters

To add an IP filter, do the following:

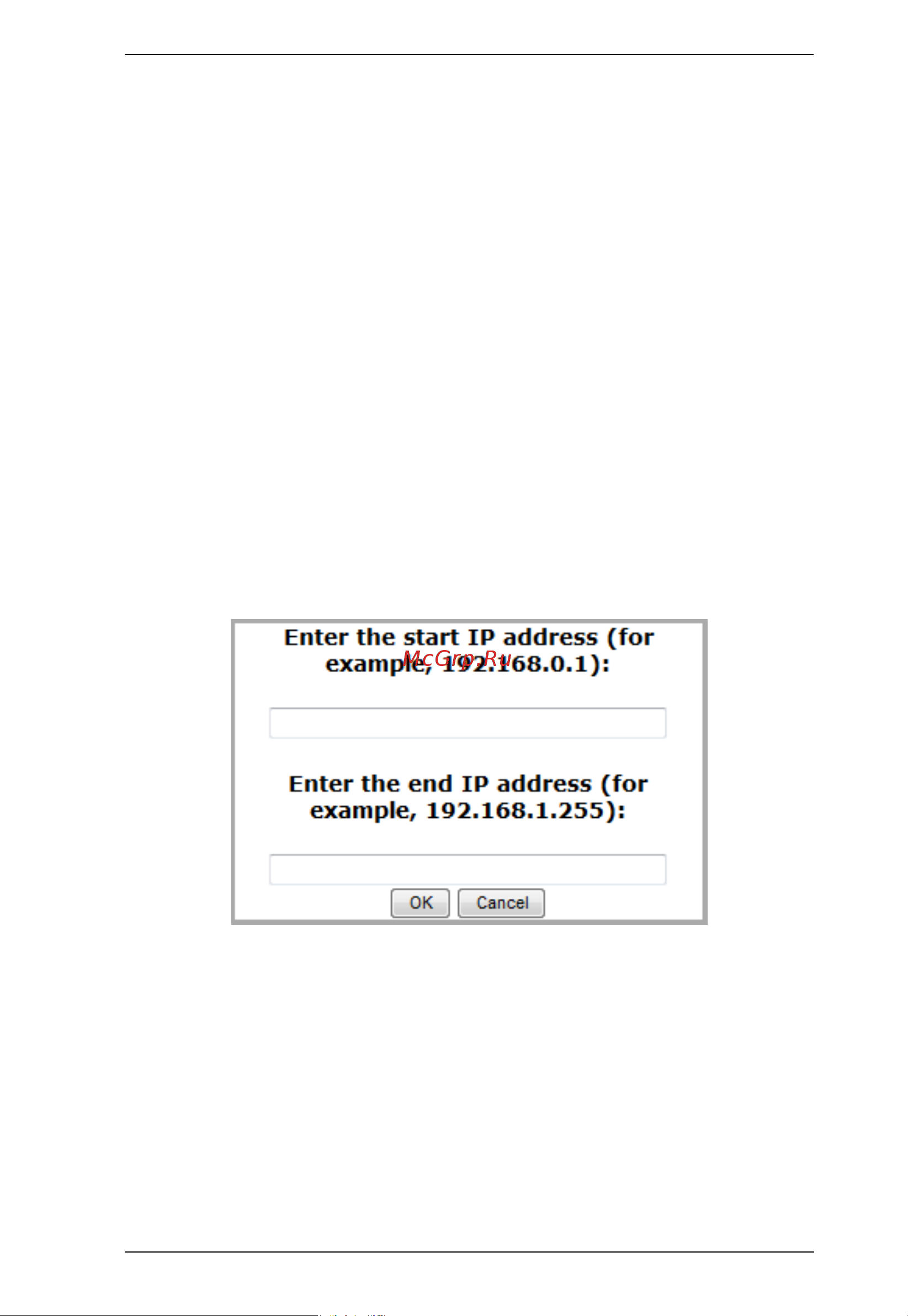

1. Click Add. A dialog box similar to the one below appears:

2. Specify the start filter address in the dialog box (for example,

192.168.0.200), then click OK.

3. To filter a single IP address, key in the same address as the start IP. To

filter a continuous range of addresses, key in the end number of the range

(for example, 192.168.0.225).

4. After filling in the address, click OK.

Repeat these steps for any additional IP addresses you want to filter.
