RS-485CONNECTIONEXAMPLES

In addition to the DSP functionalities, directly accessible on the speaker, it's possible to

gain full control over the DSP functionalities of the speakers using an RS485 remote con-

trol interface and a personal computer.

An optional USB-485 interface (D:SP INTERFACE) and a personal computer software (D:SP

EDITOR) are available to the purpose. In this way it is possible to control a large amount

of parameters within the signal processing and to monitor in real time important aspects

of the speakers functioning.

With a single USB-485 it is possible to connect in daisy chain up to 127 different speak-

ers.

For a complete description please refer to the D:SP EDITOR + D:SP INTERFACE user man-

ual. It is anyway possible to have a preview of the available functionalities, installing on a

personal computer the DEMO version of the D:SP Editor, that can be downloaded from

the official site www.verseaudio.com

Note: to connect the X:SIDER speakers to the network use only high quality Ethernet ca-

bles of the CAT5 type.

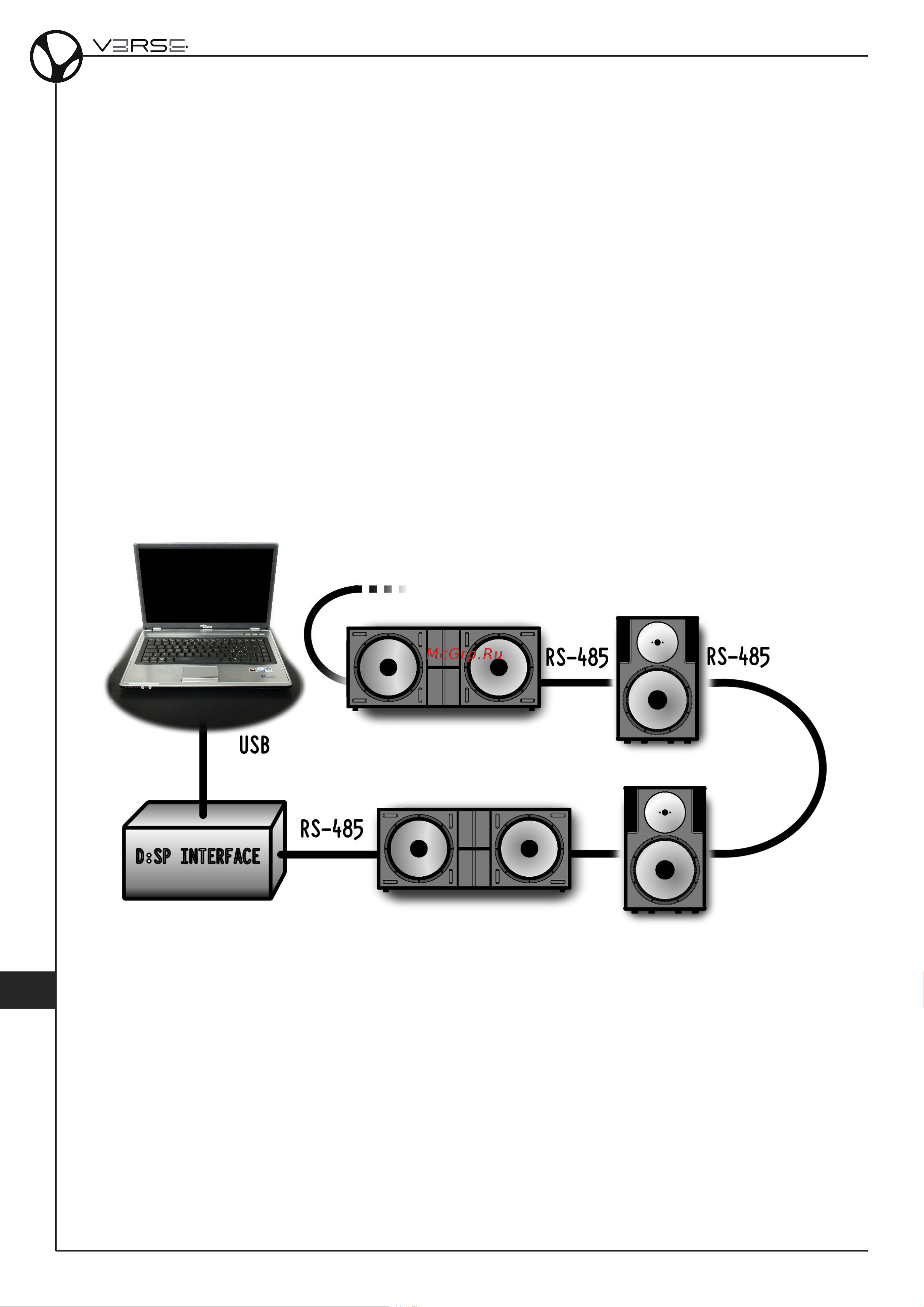

An example of a daisy chain network for the VERSE X:SIDER systems is shown in figure

below.

WARNING: even if the digital D:SP Verse network is made of common Ethernet cables, IT

IS NOT an Ethernet network, therefore IT IS NOT possible to connect the X:SIDER speak-

ers to Ethernet devices. It is, instead, necessary to make use of the proper VERSE D:SP

INTERFACE (USB-485), available as optional.
