ADJ Products, LLC - www.adj.com - Vizi Beam RXONE Instruction Manual Page 8
The Vizi Beam RXONE is fully operational in three dierent mounting
positions, hanging upside-down from a ceiling, sideways on trussing,
or set on a at level surface. Be sure this xture is kept at least 12m
(40ft) away from any ammable materials (decoration etc.). Always
use and install the supplied safety cable as a safety measure to
prevent accidental damage and/or injury in the event the clamp fails
(see next page). Never use the carrying handles for secondary attach-
ment.
Vizi Beam RXONE Mounting
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below
the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculat-
ing working load limits, installation material being used, and perodic
safety inspection of all installation material and unit. If you lack these
qualications, do not attempt the installation yourself.
These installaiton should be checked by a skilled person once a year.
ADJ Products, LLC - www.adj.com - Vizi Beam RXONE Instruction Manual Page 9

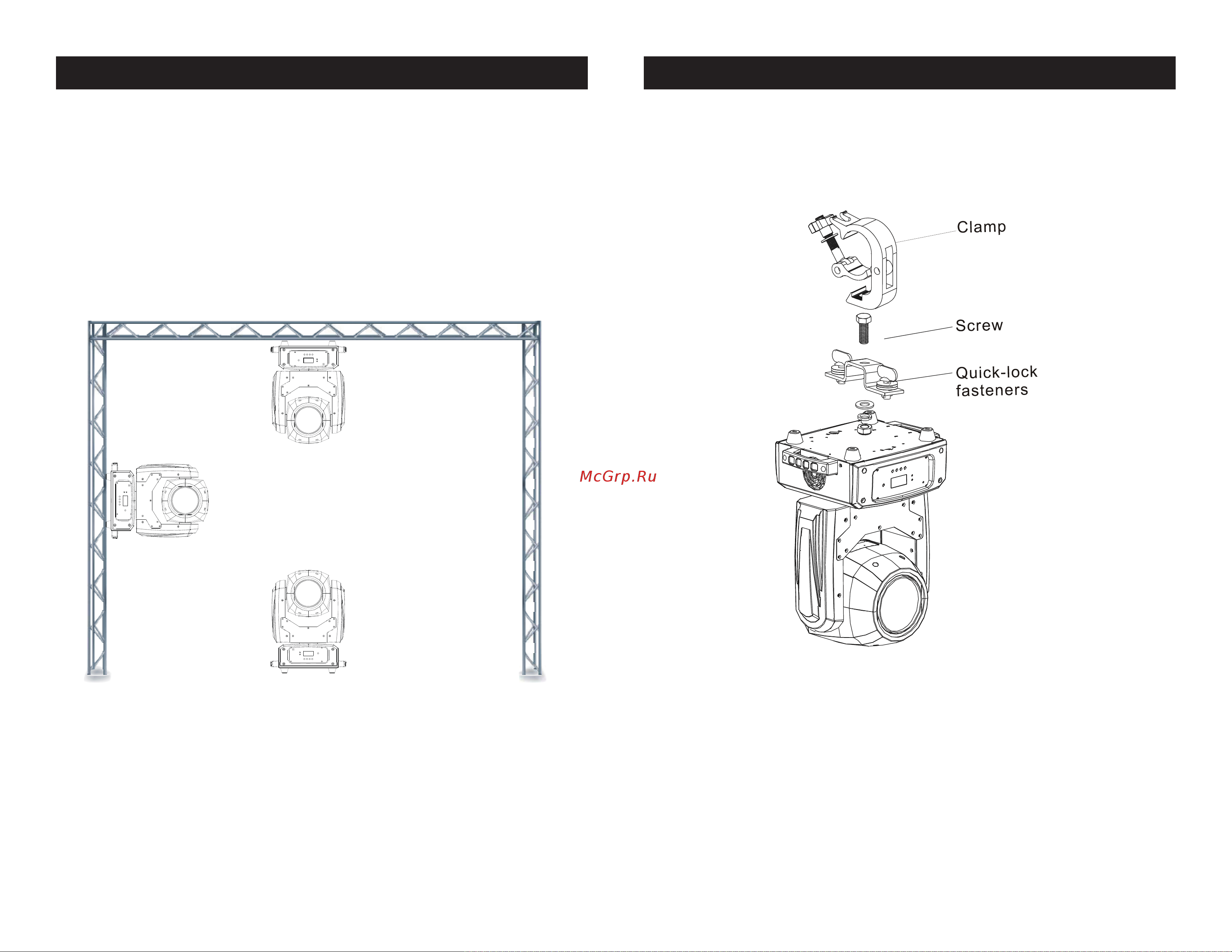

Screw one clamp via a M12 screw and nut onto the Omega
holders. Insert the quick-lock fasteners of the rst Omega
holder into the respective holes on the bottom of the Vizi Beam
RXONE. Tighten the quick-lock fasteners fully clockwise. Pull
the safety-cable through the openings located on the base
plate and over the trussing system or a safe xation spot. Insert
the end in the carabine and tighten the safety screw.
Vizi Beam RXONE Mounting
NOTICE: The suitable enviromental temperature for this light-
ing xture is between -25˚ C to 45˚ C. Do not place this lighting
xture in an enviroment where the temperatures are under or
above the temperatures stated above. This will allow the xture
to run at its best and help prolong the xture life.
