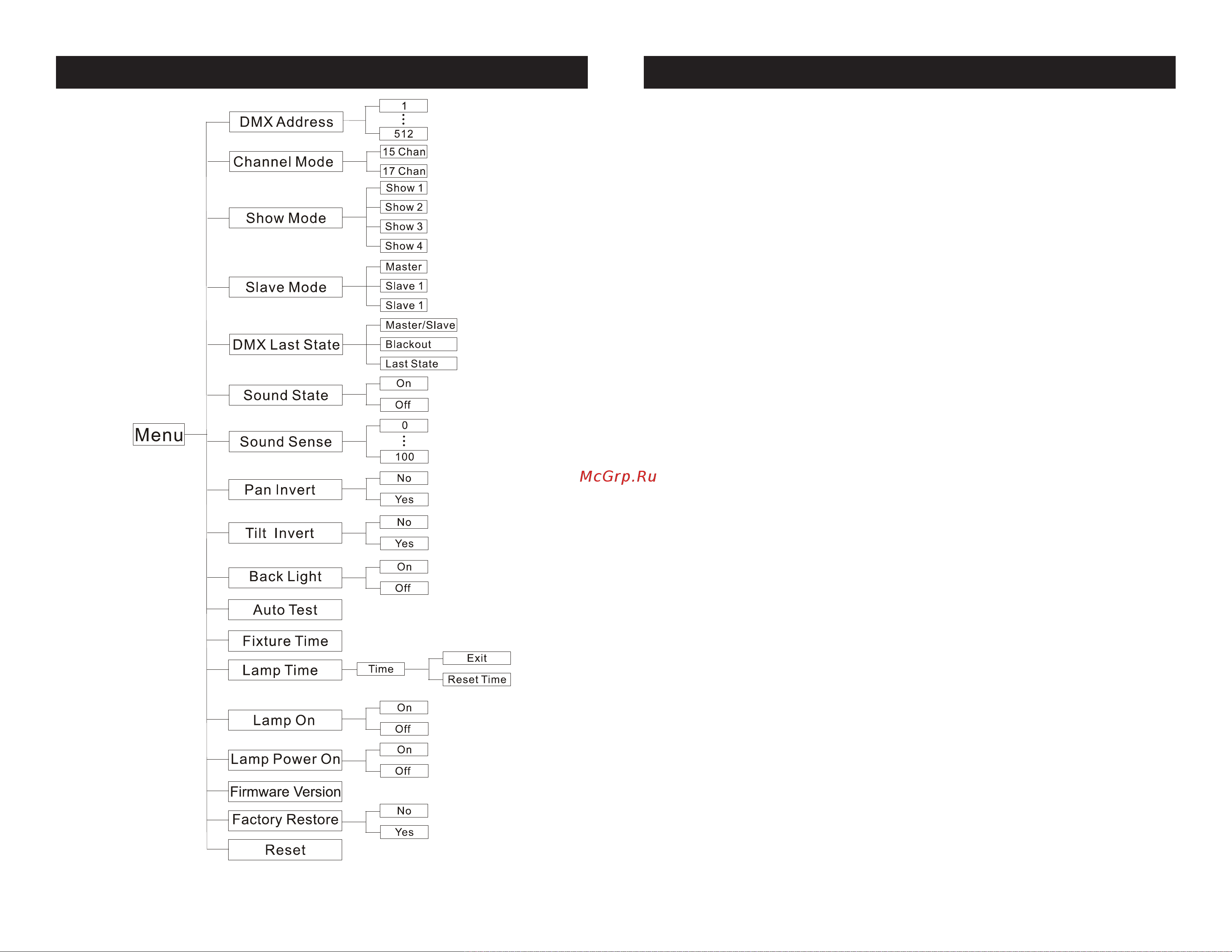

Vizi Beam RXONE System Menu
System Menu: When making adjustments press ENTER to
conrm your setup then press and hold the MENU button
for at least 3 seconds. To exit without making any adjust-
ments press the MENU button. The display will lock after 30
seconds, press the MENU button for 3 seconds to unlock.
DMX Address - Set the DMX Address -
1. Press the MENU button until “DMX Addresss” is displayed,
press ENTER.
2. “X” will now be displayed, “X” represents the displayed
address. Press the UP or DOWN buttons to nd your desired
address.
3. Press ENTER to conrm, and then press and hold the MENU
button for at least three seconds to assign.
Channel Mode - This will let you select your desired
DMX Channel mode.
1. Press the MENU button until “Channel Mode” is displayed,
press ENTER.
2. “X Chan” will now be displayed, “X” represents the displayed
DMX channel mode. Press the UP or DOWN buttons to nd your
desired Channel mode.
3. Press ENTER to conrm.
Show Mode - Show modes 1 - 4 (Factory Shows).
1. Press the MENU button until “Show Mode” is displayed, press
ENTER.
2. “Show X” will now be displayed, “X” representing a number
between 1-4. Press the UP or DOWN buttons to nd your desired
show and press ENTER to conrm. After pressing ENTER, press
and hold the MENU button for at least 3 seconds to activate.
