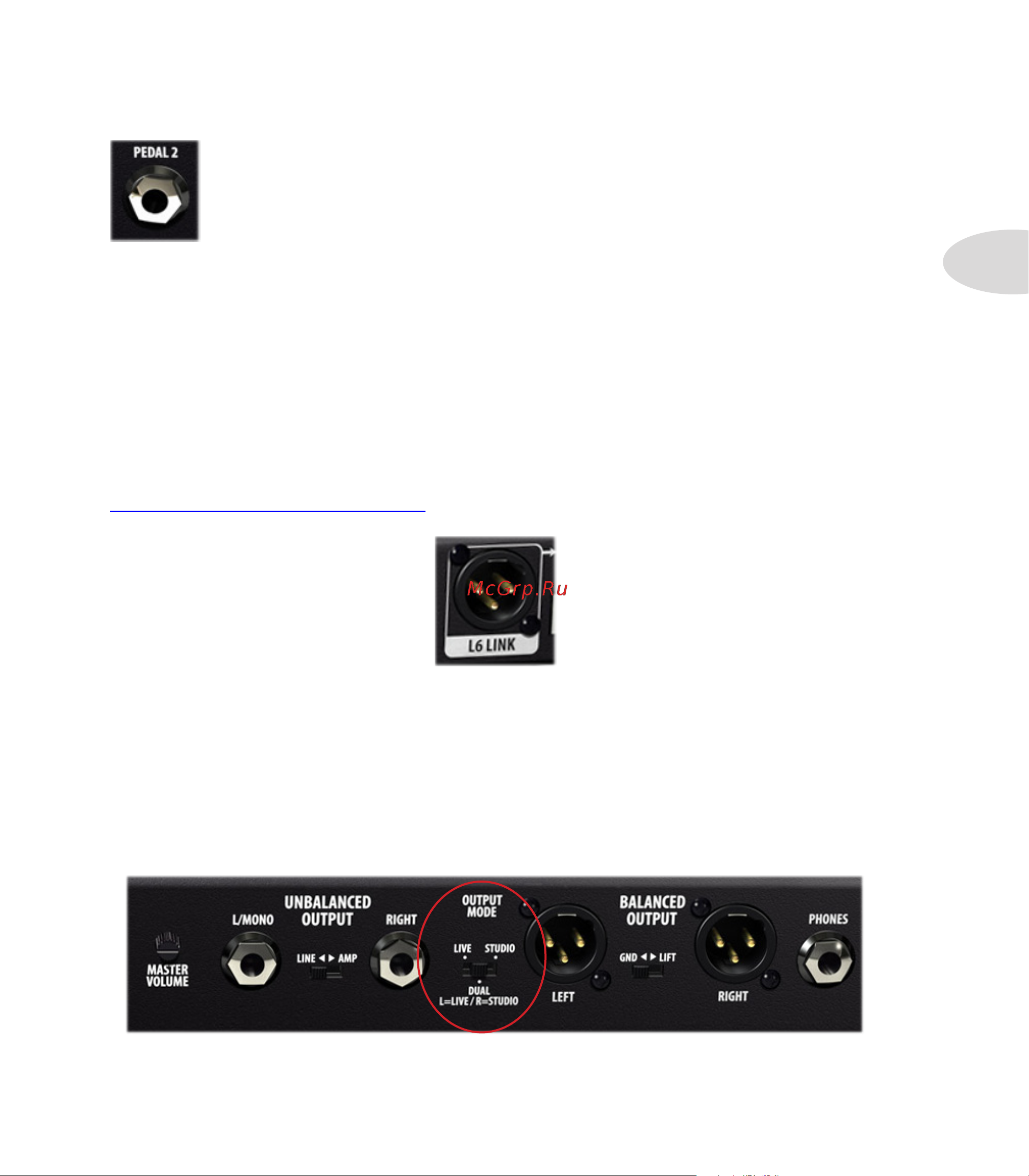

Features & Functionality
2•5
Pedal 2 (POD HD400 Only)
Optionally, you can connect an additional Expression Pedal (such as the Line
6 EX-1) to the PEDAL 2 jack on the back of POD HD400. Once connected,
the WAH mode is automatically assigned to the on-board Pedal, and the VOL
assigned to Pedal 2. You’ll see both the WAH and VOL LEDs lit to indicate this
state. Note that you can still assign either the WAH or VOL mode to the Pitch
Glide effect, and it will be controlled by the individual, assigned pedal.
L6 LINK™
A revolutionary new feature included with all POD HD devices is L6 LINK, which provides
the ability to send your tones to Line 6 DT50™ and DT25™ tube amplifiers, as well as to
remotely control these DT Series amplifiers’ functions. The L6 LINK connection on the
back of POD HD utilizes a single, standard XLR cable to connect directly with a DT Series
amplifier. For details on L6 LINK, please see the additional documentation available at
http://line6.com/software/manuals/.
The L6 LINK jack
Output Mode Options
The OUTPUT MODE switch on the back panel of your device allows you to change the
type of audio signal that is fed to the analog BALANCED, UNBALANCED OUTPUT*
and PHONES jacks, as well as to the USB Record Send and the L6 LINK™ output.
The OUTPUT MODE switch
