LINE 6 POD HD400 [29/83] Midi dump

Edit Mode

4•7

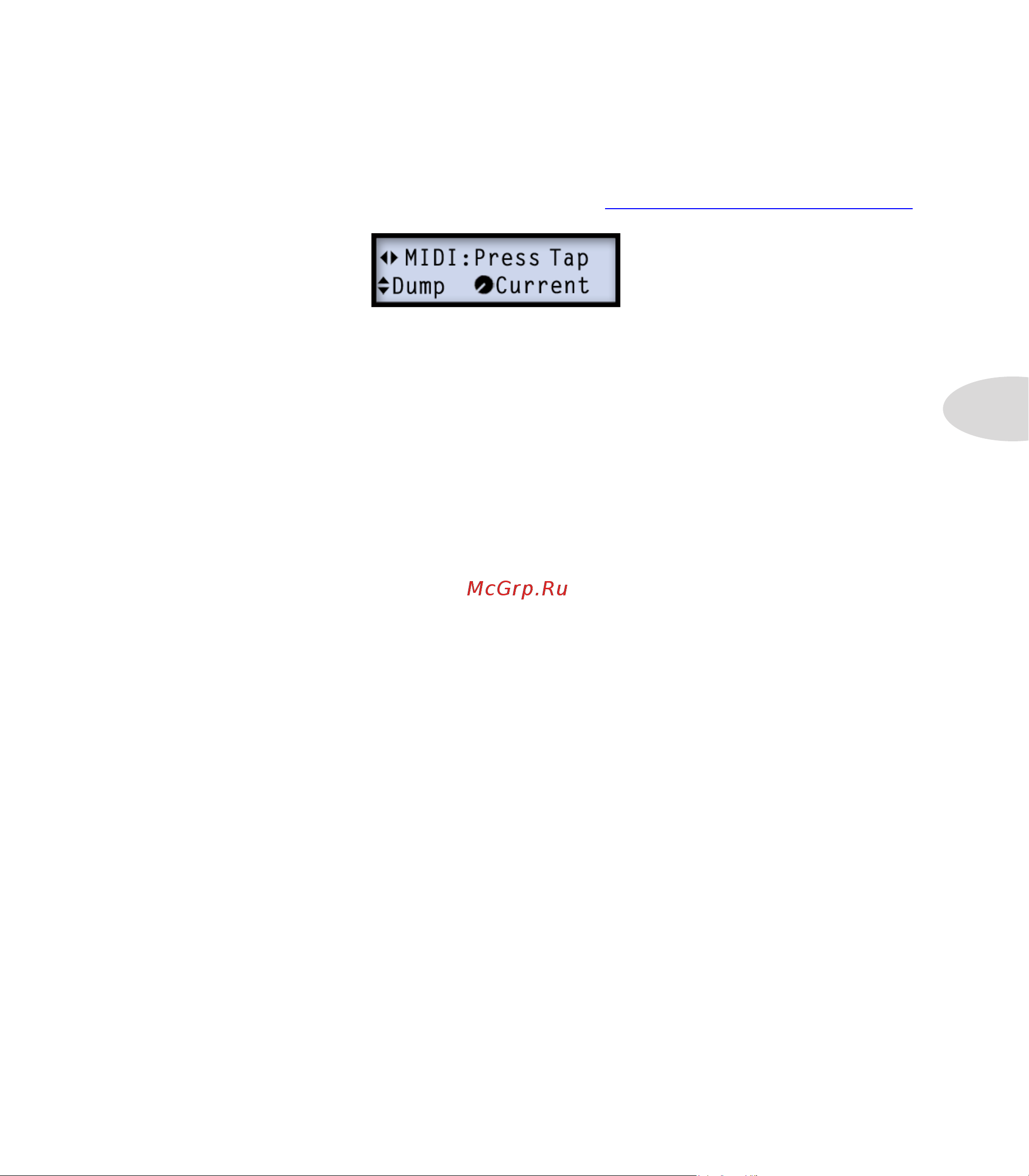

MIDI DUMP

This setting conﬁgures the speciﬁc MIDI SysEx data that is fed to the POD HD MIDI Out

port when performing a MIDI Dump. When this MIDI menu is displayed in Edit Mode,

the TA P button will initiate the MIDI Dump. Also see “Appendix B: MIDI” on page B•1.

• Current - Sends only data for the currently loaded Preset.

• All - Sends all data for all 128 Presets.
