LINE 6 POD HD400 [52/83] Bass octaver

FX Models

6•10

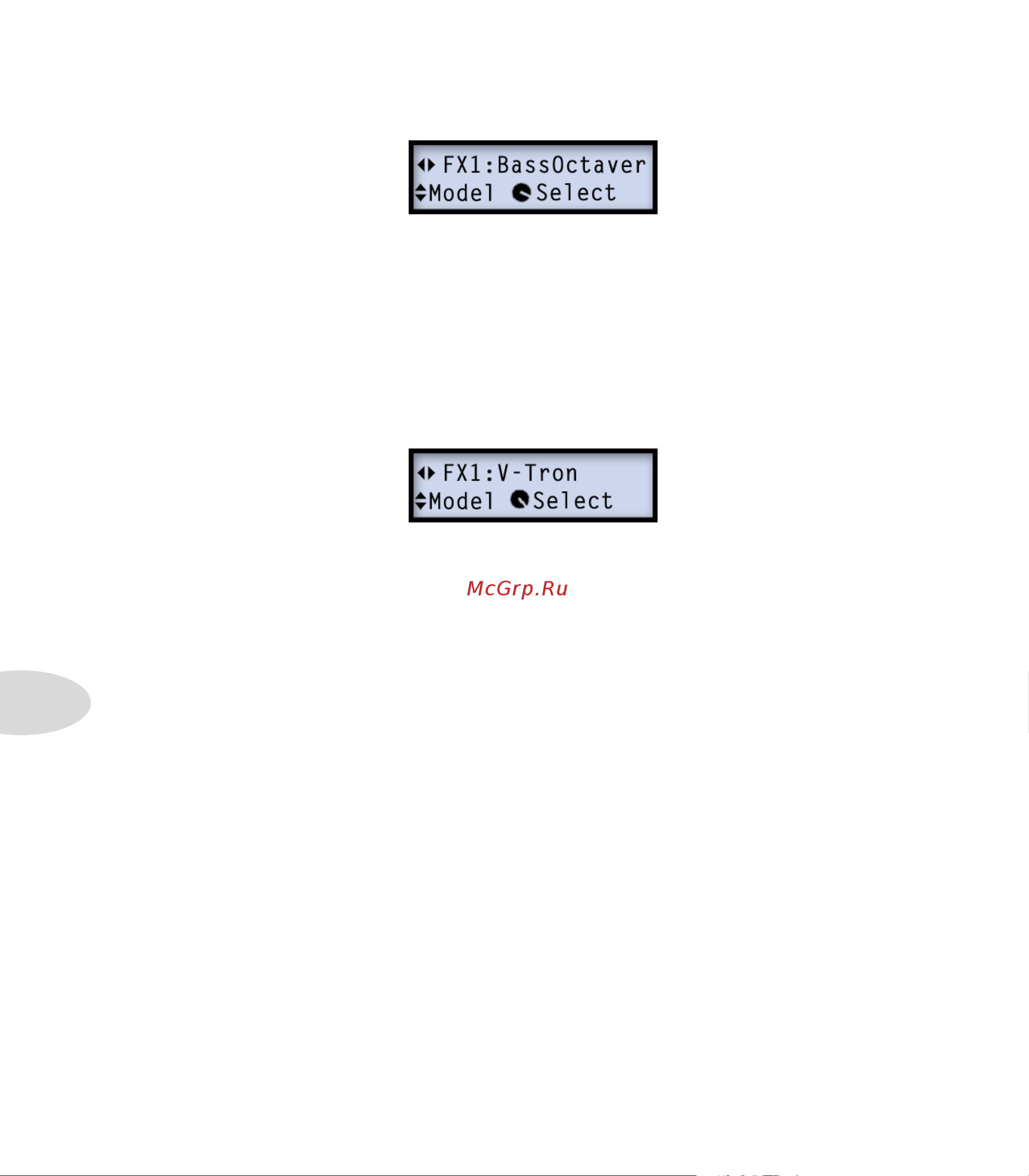

Bass Octaver

• Tone: Adjusts the overall tone of the effected signal.

• Normal: Controls the level of your original signal (allowing you to balance it with

the octave signal).

• Octave: Controls the level of the pitch-shifted, octave signal.

V-Tron

Each time you strike a new note or chord, the vowel sequence will be “spoken.” You can

choose whether to go from Start vowel to End vowel only (Up), or have it turn around and

come back again (Up/Down).

• Start and End: Sets the starting vowel and ending vowel sounds (A, E, I, O or U).

• Speed: Adjusts how long it takes to “speak” from the Start to the End vowel.

• Mode: Selects either Up or Up/Down.

• Mix: Adjusts the balance of “Dry” guitar signal and “Wet” signal.
