USB Audio
8•2
Audio Routing
When using the POD HD USB connection, the audio driver manages several tasks. The
driver feeds the processed guitar signal out the USB Record Send to your computer and
receives playback audio from the computer. It also grabs the processed guitar signal before
routing it to the Record Send, to provide a low latency monitor signal, and then mixes the
monitor signal with the playback audio and feeds this combined signal to your POD HD
analog outputs.
Note that all USB audio is muted whenever a L6 LINK™ connection is active between POD
HD and a Series amplifier. Please see the additional documentation found at http://line6.com/
support/manuals/
for more about L6 LINK.
Mix of monitor signal + playback
audio fed to analog outputs
Playback audio
from computer
Record Send audio
to computer

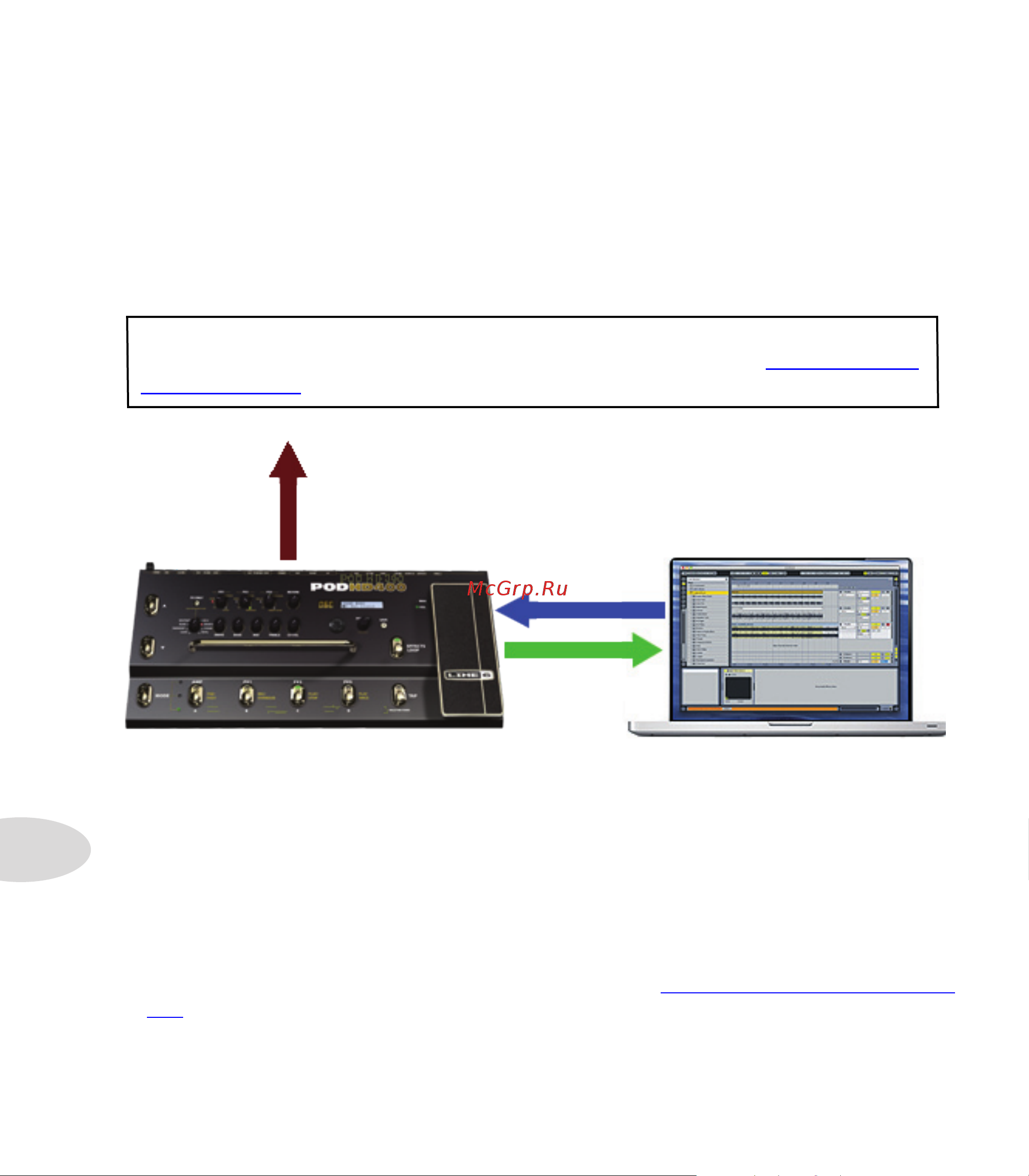

USB audio routing provided by the Line 6 USB audio driver
The POD HD Record Send
As shown above, the Record Send is the virtual “pipeline” that carries your POD HD-
processed, digital signal across the USB connection, making it available to your audio
software as an input signal for recording. (Note that the signal fed to the USB Record
Send signal is also controlled by the Output options - see “Output Mode Options” on page
2•5.)
