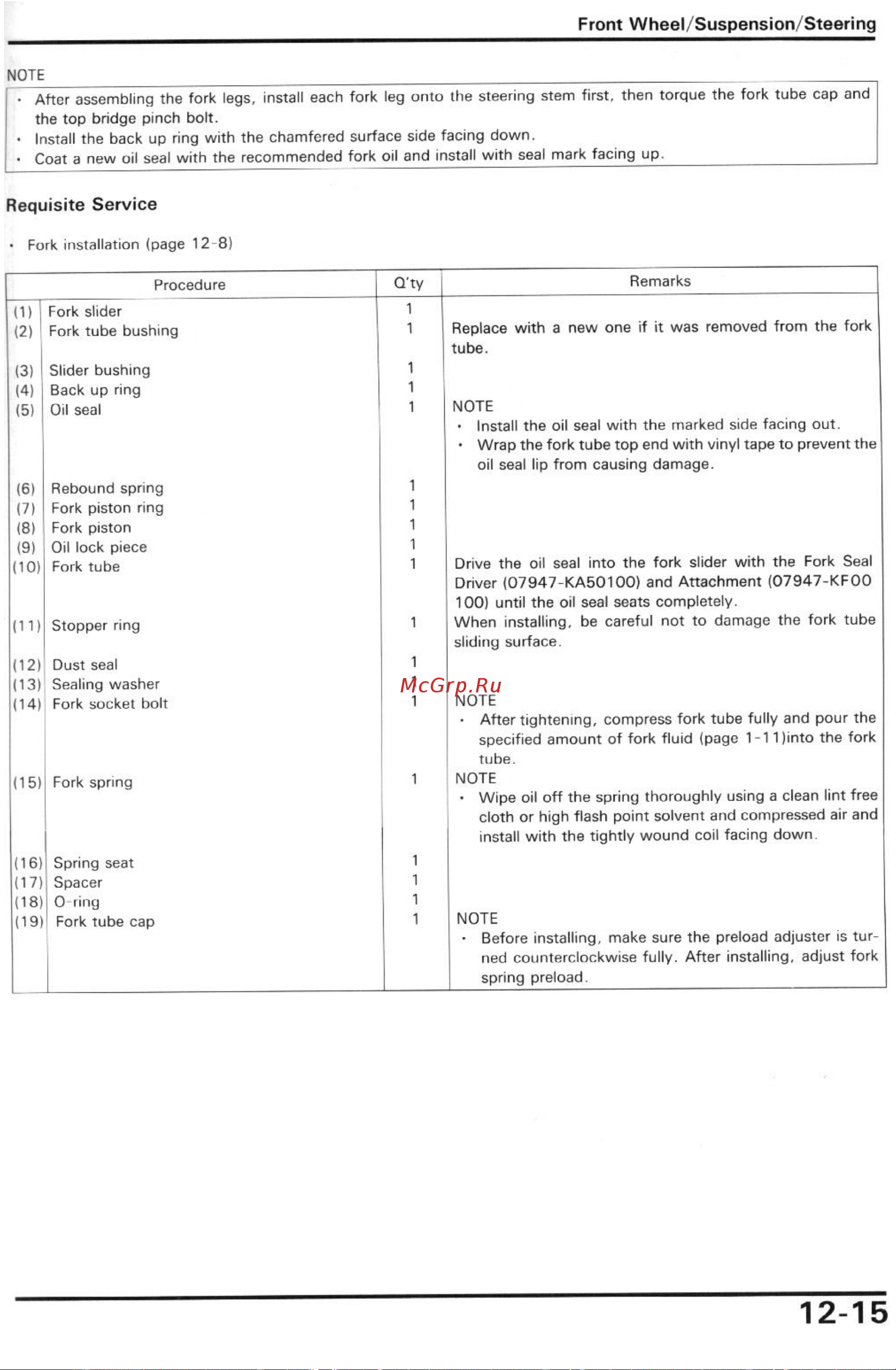

Front Wheel Suspension Steering NOTE_______________ _____________________________________ ____________________________ ________________ After assembling the fork legs install each fork leg onto the steering stem first then torque the fork tube cap and the top bridge pinch bolt Install the back up ring with the chamfered surface side facing down Coat a new oil seal with the recommended fork oil and install with seal mark facing up Requisite Service Fork installation page 12 8 Procedure Q ty 1 Fork slider 2 Fork tube bushing 1 1 3 Slider bushing 4 Back up ring 5 Oil seal 1 1 1 6 71 8 9 10 Rebound spring Fork piston ring Fork piston Oil lock piece Fork tube 1 1 1 1 1 11 Stopper ring 1 12 Dust seal 13 Sealing washer 14 Fork socket bolt 1 1 1 15 Fork spring 1 16 171 18 19 1 1 1 1 Spring seat Spacer 0 ring Fork tube cap Remarks Replace with a new one if it was removed from the fork tube NOTE Install the oil seal with the marked side facing out Wrap the fork tu be top end with vinyl tape to prevent the oil seal lip from causing damage Drive the oil seal into the fork slider with the Fork Seal Driver 07947 KA50100 and Attachment 07947 KF00 100 until the oil seal seats completely When installing be careful not to damage the fork tube sliding surface NOTE After tightening compress fork tube fully and pour the specified amount of fork fluid page 1 11 into the fork tube NOTE Wipe oil off the spring thoroughly using a clean lint free cloth or high flash point solvent and compressed air and install with the tightly wound coil facing down NOTE Before installing make sure the preload adjuster is tur ned counterclockwise fully After installing adjust fork spring preload 12 15
