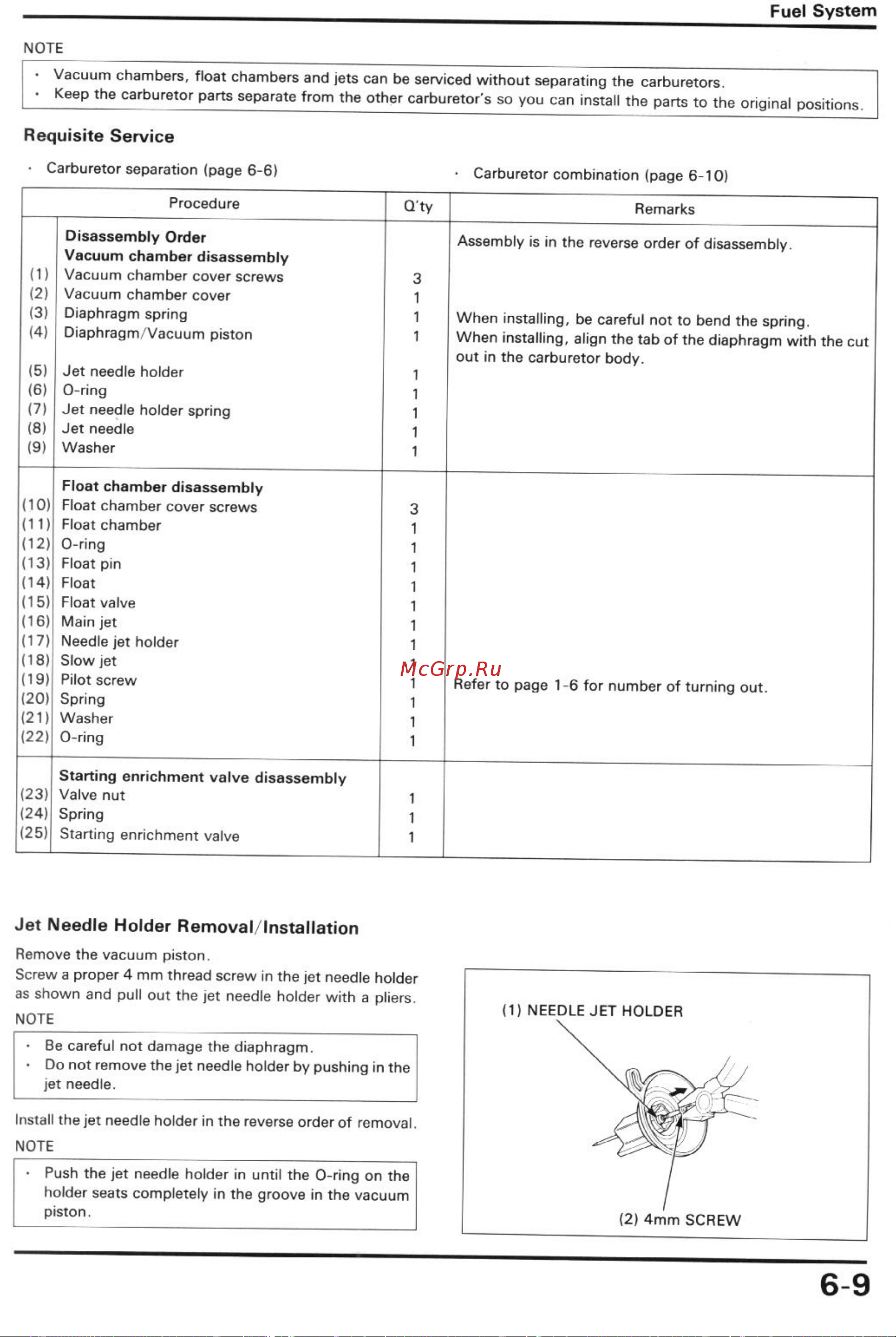

Fuel System NOTE Vacuum chambers float chambers and jets can be serviced without separating the carburetors Keep the carburetor parts separate from the other carburetors so you can install the parts to the original positions Requisite Service Carburetor separation page 6 6 Procedure Carburetor combination page 6 10 Qty Disassembly Order Vacuum chamber disassembly 1 Vacuum chamber cover screws 2 Vacuum chamber cover 3 Diaphragm spring W Diaphragm Vacuum piston 3 1 1 1 15 6 7 3 9 Jet needle holder O ring Jet needle holder spring Jet needle Washer 1 1 1 1 1 Float chamber disassembly Float chamber cover screws Float chamber O rlng Float pm Float Float valve Main jet Needle jet holder Siow jet Pilot screw Spring Washer O ring 3 1 1 1 1 1 1 1 1 1 1 1 1 10 11 12 13 14 15 16 17 18 19 20 121 22 Starting enrichment valve disassembly 23 Valve nut 24 Spring 25 Starting enrichment valve Remarks Assembly is in the reverse order of disassembly When installing be careful not to bend the spring When installing align the tab of the diaphragm with the cut out in the carburetor body Refer to page 1 6 for number of turning out 1 1 1 Jet Needle Holder Removal lnstailation Remove the vacuum piston Screw a proper 4 mm thread screw in the jet needle holder as shown and pull out the jet needle holder with a pliers NOTE 1 NEEDLE JET HOLDER Be careful not damage the diaphragm Do not remove the jet needle holder by pushing in the jet needle Install the jet needle holder in the reverse order of removal NOTE Push the jet needle holder in until the O ring on the holder seats completely in the groove in the vacuum piston 2 4mm SCREW 69
