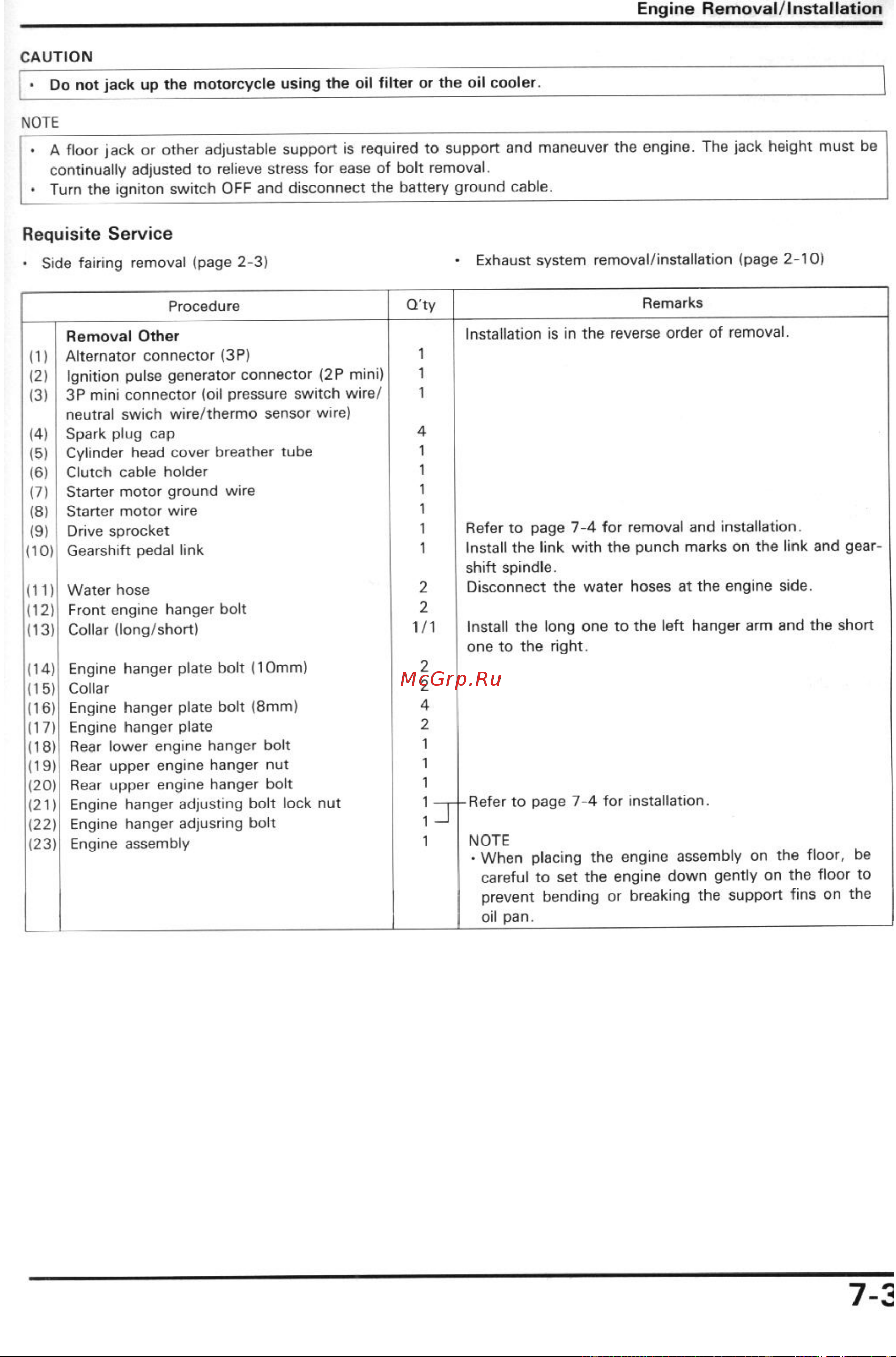

Engine Removal lnstallation CAUTION __________ ____________________________ __________ Do not jack up the motorcycle using the oil filter or the oil cooler NOTE___________ ______________ ________________________________________________________ _ ____________ A floor jack or other adjustable support is required to support and maneuver the engine The jack height must be continually adjusted to relieve stress for ease of bolt removal Turn the igniton switch OFF and disconnect the battery ground cable Requisite Service Exhaust system removal installation page 2 101 Side fairing removal page 2 3 Procedure ID 12 13 14 5 6 7 8 9 W Removal Other Alternator connector 3P Ignition pulse generator connector 2P mini 3P mini connector oil pressure switch wire neutral swich wire thermo sensor wire Spark plug cap Cylinder head cover breather tube Clutch cable holder Starter motor ground wire Starter motor wire Drive sprocket Gearshift pedal link 11 Water hose 12 Front engine hanger bolt 13 Collar long short 14 05 16 17 18 19 20 21 22 23 Engine hanger plate bolt 10mm Collar Engine hanger plate bolt 8mm Engine hanger plate Rear lower engine hanger bolt Rear upper engine hanger nut Rear upper engine hanger bolt Engine hanger adjusting bolt lock nut Engine hanger adjusting bolt Engine assembly Q ty Remarks Installation is in the reverse order of removal 1 1 1 4 1 1 1 1 1 1 2 2 1 1 Refer to page 7 4 for removal and installation Install the link with the punch marks on the link and gearshift spindle Disconnect the water hoses at the engine side Install the long one to the left hanger arm and the short one to the right 2 2 4 2 1 1 1 r 1J 1 Refer to page 7 4 for installation NOTE When placing the engine assembly on the floor be careful to set the engine down gently on the floor to prevent bending or breaking the support fins on the oil pan
