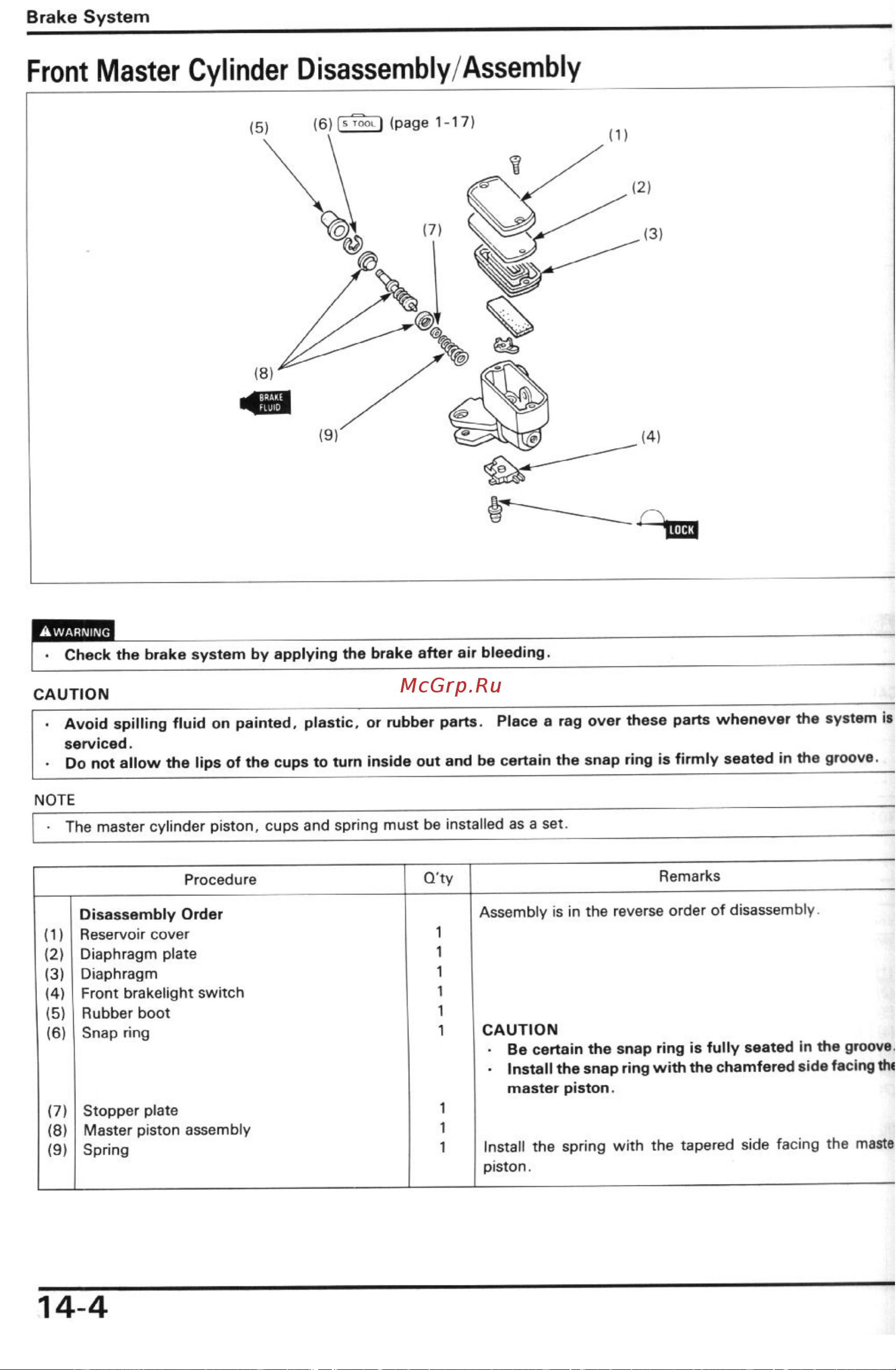

Brake System Front Master Cylinder Disassembly Assembly WARNING Check the brake system by applying the brake after air bleeding CAUTION _____ ________ _________ _ Avoid spilling fluid on painted plastic or rubber parts Place a rag over these parts whenever the system is serviced Do not allow the lips of the cups to turn inside out and be certain the snap ring is firmly seated in the groove NOTE_________________________________________________ _______________________ _______________________ The master cylinder piston cups and spring must be installed as a set Procedure Q ty Assembly is in the reverse order of disassembly Disassembly Order 1 Reservoir cover 2 Diaphragm plate 3 Diaphragm 4 Front brakelight switch 5 Rubber boot 6 Snap ring 1 1 1 1 1 1 71 Stopper plate 8 Master piston assembly 9 Spring 1 1 1 14 4 Remarks CAUTION Be certain the snap ring is fully seated in the groove Install the snap ring with the chamfered side facing the master piston Install the spring with the tapered side facing the maste piston
