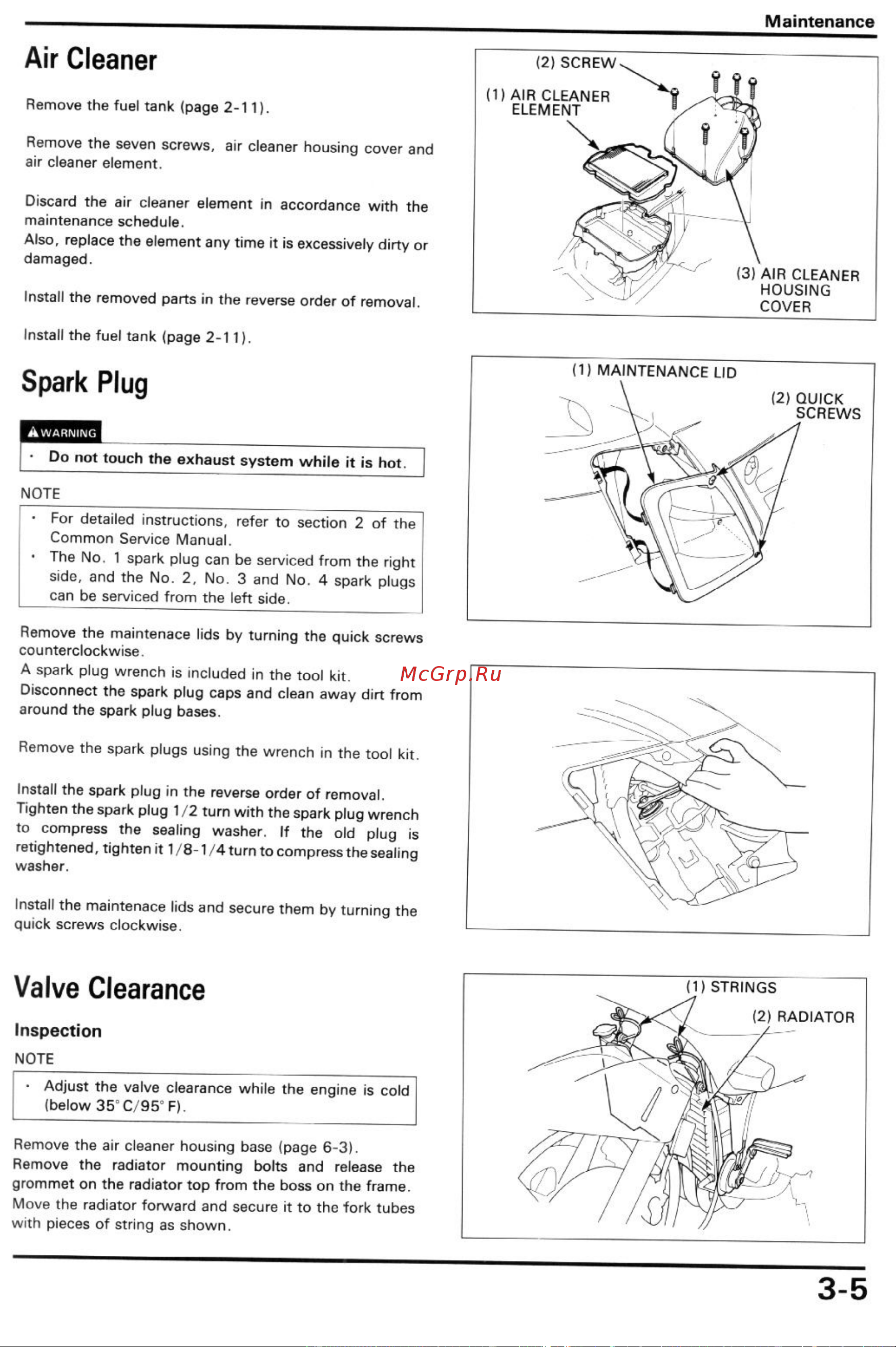

Maintenance Air Cleaner Remove the fuel tank page 2 11 Remove the seven screws air cleaner housing cover and air cleaner element Discard the air cleaner element in accordance with the maintenance schedule Also replace the element any time it is excessively dirty or damaged Install the removed parts in the reverse order of removal Install the fuel tank page 2 11 Spark Plug 11 MAINTENANCE LID AWARNING Do not touch the exhaust system while it is hot j NOTE__________ For detailed instructions refer to section 2 of the Common Service Manual The No 1 spark plug can be serviced from the right side and the No 2 No 3 and No 4 spark plugs can be serviced from the left side Remove the maintenace lids by turning the Quick screws counterclockwise A spark plug wrench is included in the tool kit Disconnect the spark plug caps and clean away dirt from around the spark plug bases Remove the spark plugs using the wrench in the tool kit Install the spark plug in the reverse order of removal Tighten the spark plug 1 2 turn with the spark plug wrench to compress the sealing washer If the old plug is retightened tighten it 1 8 1 4 turn to compress the sealing washer Install the maintenace lids and secure them by turning the quick screws clockwise Valve Clearance 1 STRINGS Inspection NOTE Adjust the valve clearance while the engine is cold below 35 C 95 F Remove the air cleaner housing base page 6 3 Remove the radiator mounting bolts and release the grommet on the radiator top from the boss on the frame Move the radiator forward and secure it to the fork tubes with pieces of string as shown 3 5
