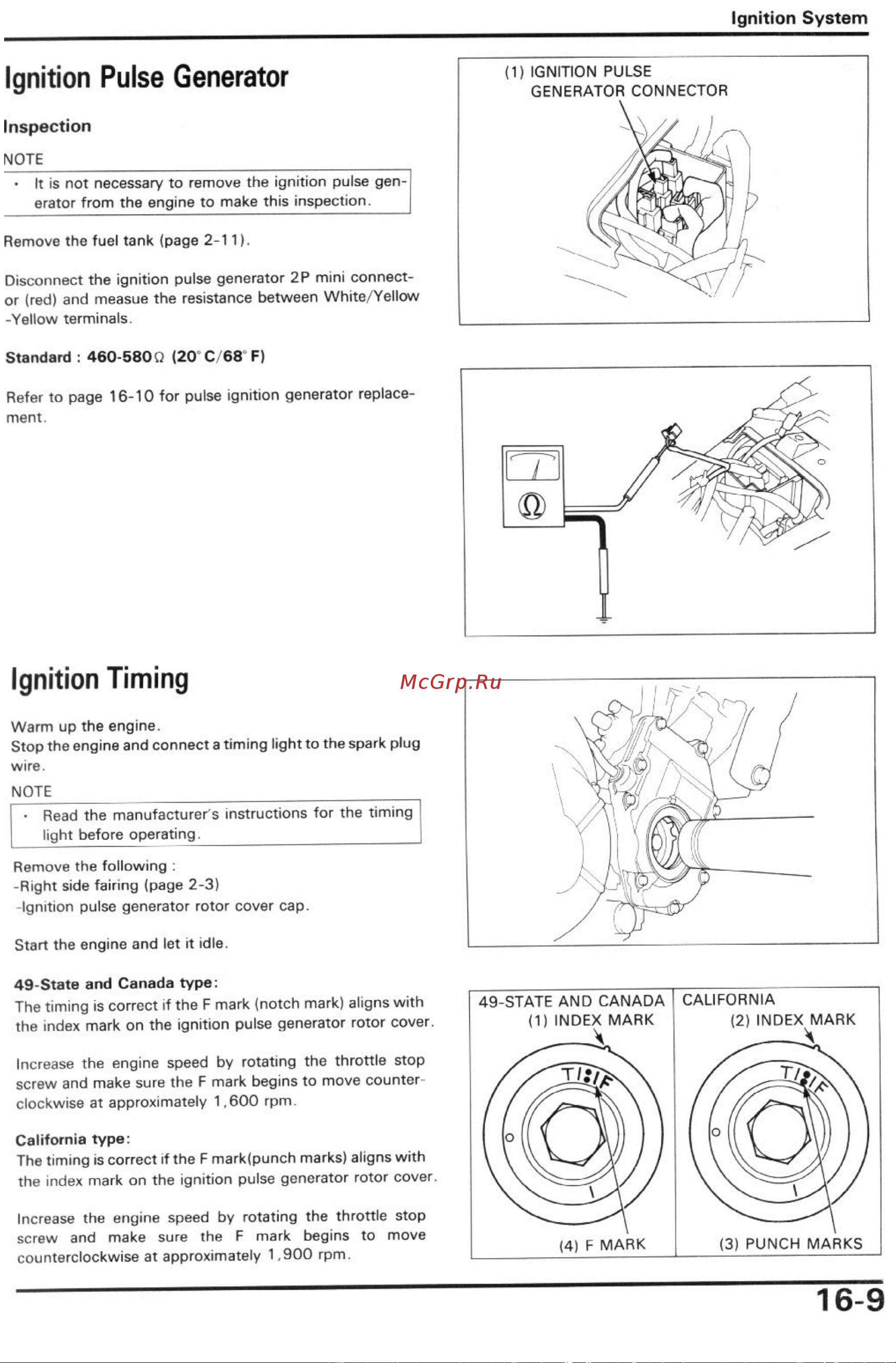

Ignition System Ignition Pulse Generator Inspection NOTE_______________________ ___________________ It is not necessary to remove the ignition pulse gen erator from the engine to make this inspection Remove the fuel tank page 2 11 Disconnect the ignition pulse generator 2P mini connect or red and measue the resistance between White Yellow Yellow terminals Standard 460 5800 20 C 68 Fi Refer to page 16 10 for pulse ignition generator replace ment Ignition Timing Warm up the engine Stop the engine and connect a timing light to the spark plug wire NOTE__________________________________________ Read the manufacturers instructions for the timing 1 light before operating Remove the following Right side fairing page 2 3 Ignition pulse generator rotor cover cap Start the engine and let it idle 49 State and Canada type The timing is correct if the F mark notch mark aligns with the index mark on the ignition pulse generator rotor cover Increase the engine speed by rotating the throttle stop screw and make sure the F mark begins to move countor clockwise at approximately 1 600 rpm California type The timing is correct if the F mark punch marks aligns with the index mark on the ignition pulse generator rotor cover Increase the engine speed by rotating the throttle stop screw and make sure the F mark begins to move counterclockwise at approximately 1 900 rpm 16 9
