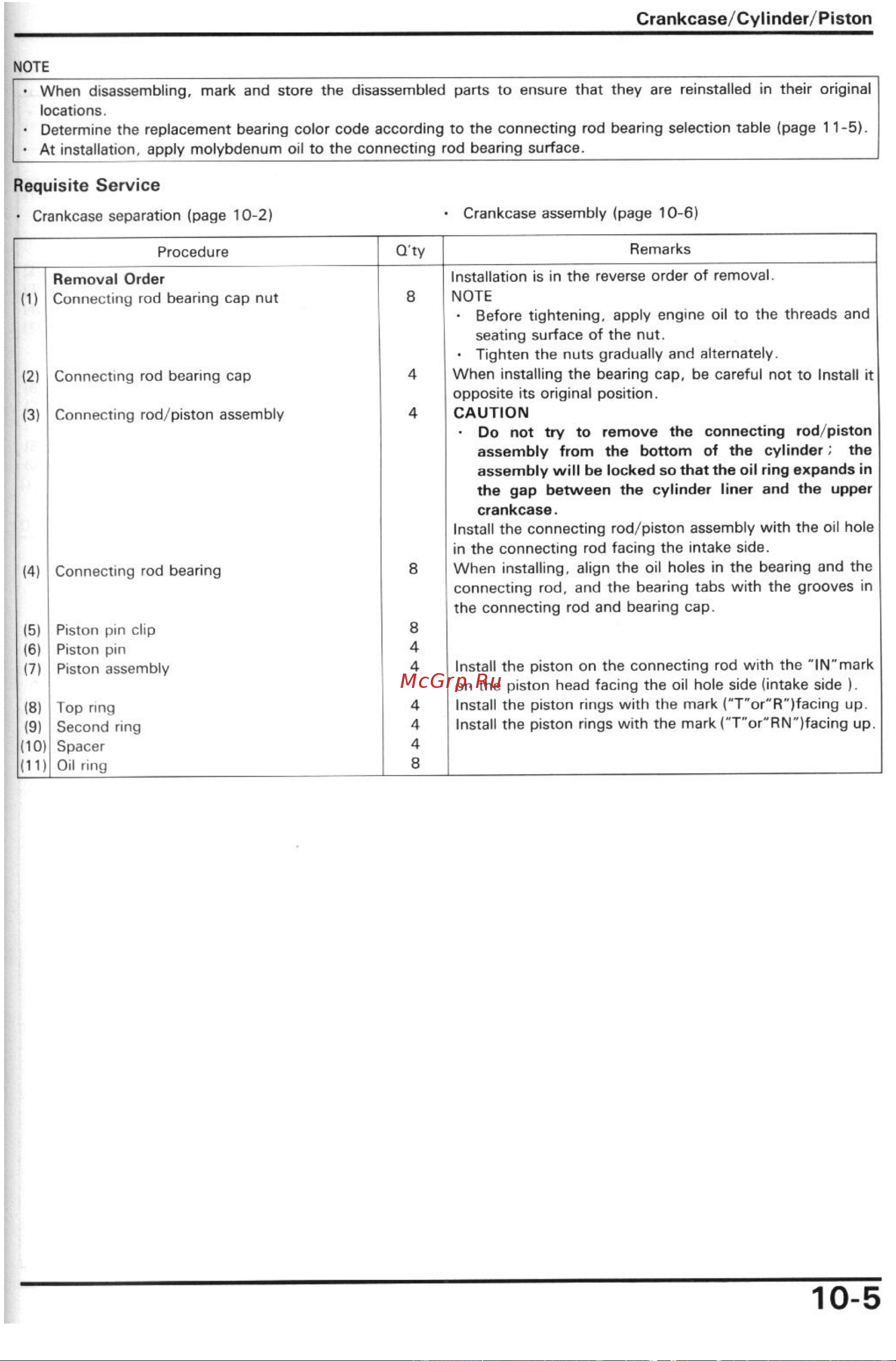

Crankcase Cylinder Piston NOTE________________________________________________________________________________________________ When disassembling mark and store the disassembled parts to ensure that they are reinstalled in their original locations Determine the replacement bearing color code according to the connecting rod bearing selection table page 11 5 At installation apply molybdenum oil to the connecting rod bearing surface Requisite Service Crankcase separation page 10 2 Procedure Crankcase assembly page 10 6 Q ty Removal Order 1 Connecting rod bearing cap nut 8 2 Connecting rod bearing cap 4 3 Connecting rod piston assembly 4 4 Connecting rod bearing 8 5 Piston pin clip 6 Piston pin Piston assembly 8 4 4 8 Top ring 9 Second ring IIO Spacer 111 Oil ring 4 4 4 8 Remarks Installation is in the reverse order of removal NOTE Before tightening apply engine oil to the threads and seating surface of the nut Tighten the nuts gradually and alternately When installing the bearing cap be careful not to Install it opposite its original position CAUTION Do not try to remove the connecting rod piston assembly from the bottom of the cylinder the assembly will be locked so that the oil ring expands in the gap between the cylinder liner and the upper crankcase Install the connecting rod piston assembly with the oil hole in the connecting rod facing the intake side When installing align the oil holes in the bearing and the connecting rod and the bearing tabs with the grooves in the connecting rod and bearing cap Install the piston on the connecting rod with the IN mark on the piston head facing the oil hole side intake side Install the piston rings with the mark T or R facing up Install the piston rings with the mark T or RN facing up 10 5
