VP-439 - Overview

3.1 Defining the VP-439 Video Scaler

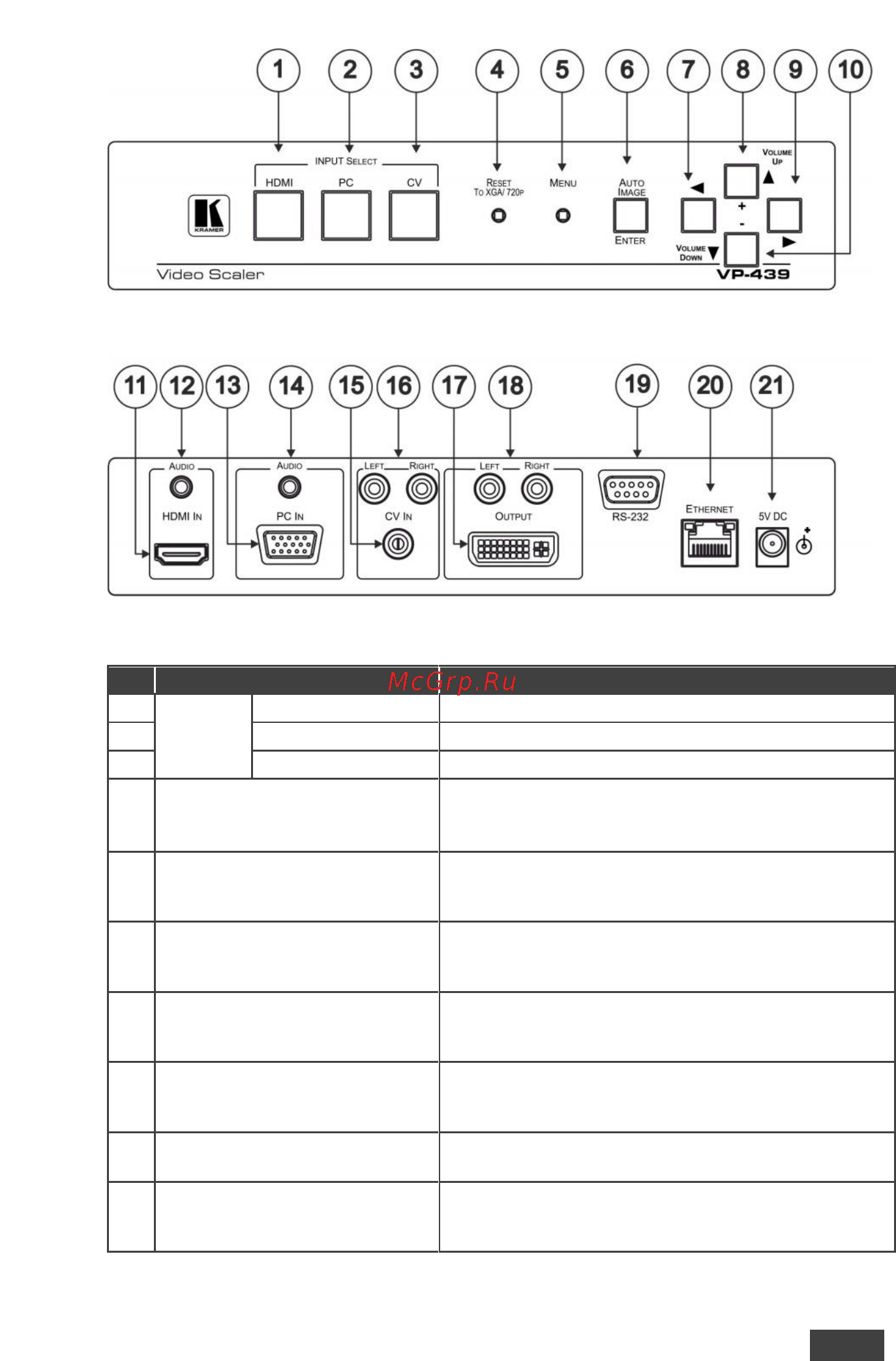

Figure 1: VP-439 Video Scaler

Feature

Function

INPUT

SELECT

Buttons

HDMI

Press to select the HDMI input

Press to select the PC/VGA input

Press to select the composite video input

RESET TO XGA/720p Button

Toggles between reset to 720p and reset to XGA.

If the button has not been pressed for more than 30

seconds, the first press resets to 720p

MENU Button

Press to activate the on-screen display (OSD). The

button is recessed to prevent unwanted tampering

with the unit (use a small pointed tool)

AUTO IMAGE/ENTER Button

Press to enter or confirm menu selections.

When not in the OSD menu, press to auto-position

the image on the screen.

◄ Button

Press to access the OSD menu, exit the OSD menu

and, when in the OSD menu, move to the previous

level in the OSD screen

▲/VOLUME UP/+ Button

Press to move up the menu list and to Increase

numerical values. When not within the OSD menu

mode, press to increase the output volume

► Button

Press to access sub-menu items and select from

several settings

▼/VOLUME DOWN/– Button

Press to move down the menu list and to decrease

numerical values. When not within the OSD menu

mode, press to reduce the output volume
